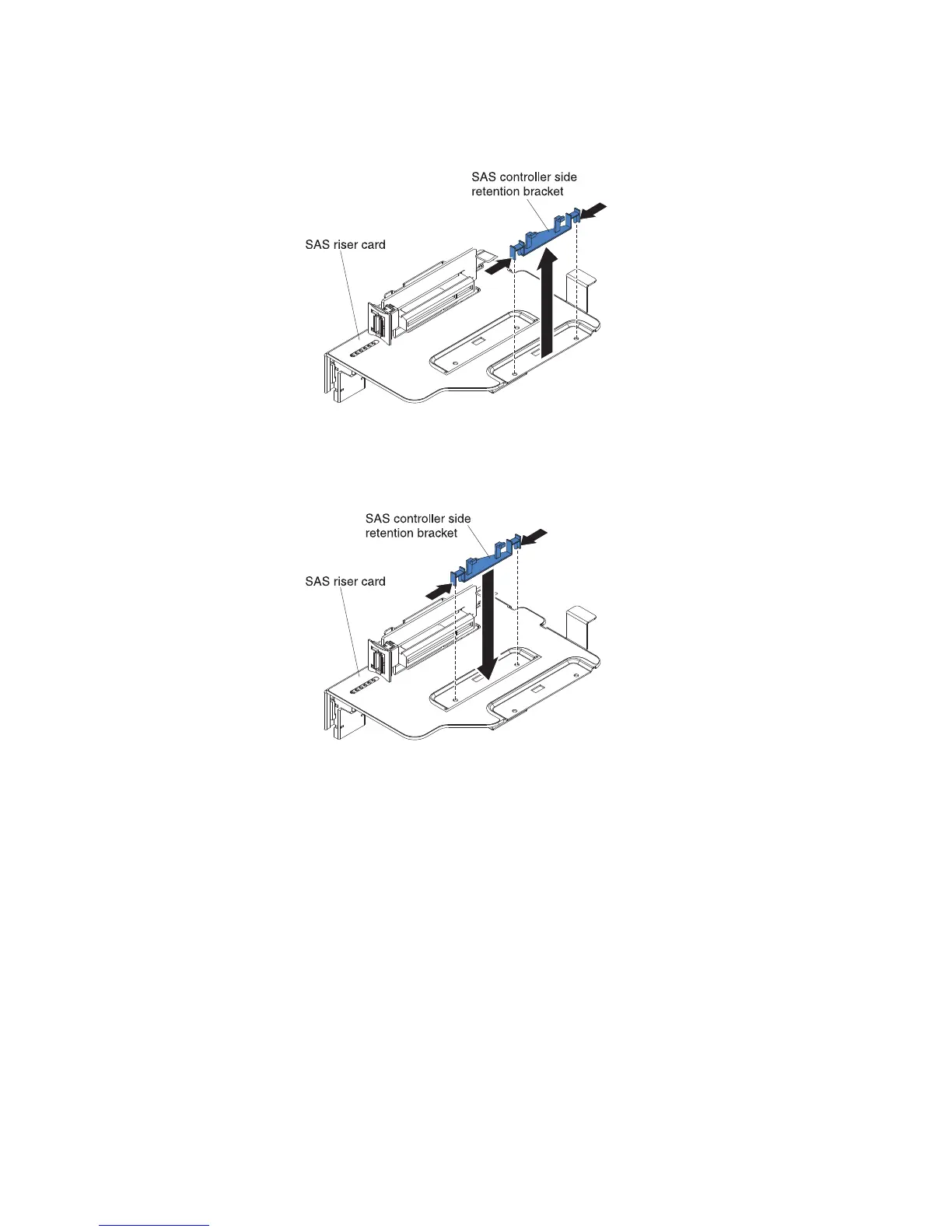

5. Remove the retention bracket from the current location:
a. Pinch the bottoms of both bracket posts and push the posts up out of the
SAS riser-card assembly.
b. Rotate the bracket to free the bracket tab from the slot on the SAS
riser-card assembly.
6. Install the retention bracket in the new location on the SAS riser-card assembly:
a. Insert the bracket tab into the slot on the SAS riser-card assembly.
b. Rotate the bracket so that the bracket posts align with the holes in the SAS
riser-card assembly.
c. Press the posts through the holes in the SAS riser-card until they click into
place.
d. Install the SAS controller on the SAS riser card (see “Installing a ServeRAID
SAS controller on the SAS riser card” on page 94).
e. Install the riser-card assembly in the server (see “Installing the SAS
riser-card and controller assembly” on page 92).
f. Connect the power cords and all external cables, and turn on the server and
peripheral devices.
102 System x3650 M2 Type 7947: Installation and User’s Guide

IBM x3650 - System M2 - 7947 Specifications

General

Processor	Intel Xeon 5500 series
Chipset	Intel 5520
Model	IBM x3650 - System M2 - 7947
Memory	Up to 192 GB DDR3
Storage	Up to 8 TB SAS/SATA
RAID Support	RAID 0, 1, 10
Network Interface	Dual Gigabit Ethernet
Power Supply	Dual 675W
Expansion Slots	Six PCIe slots
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Form Factor	Rack (2U)
