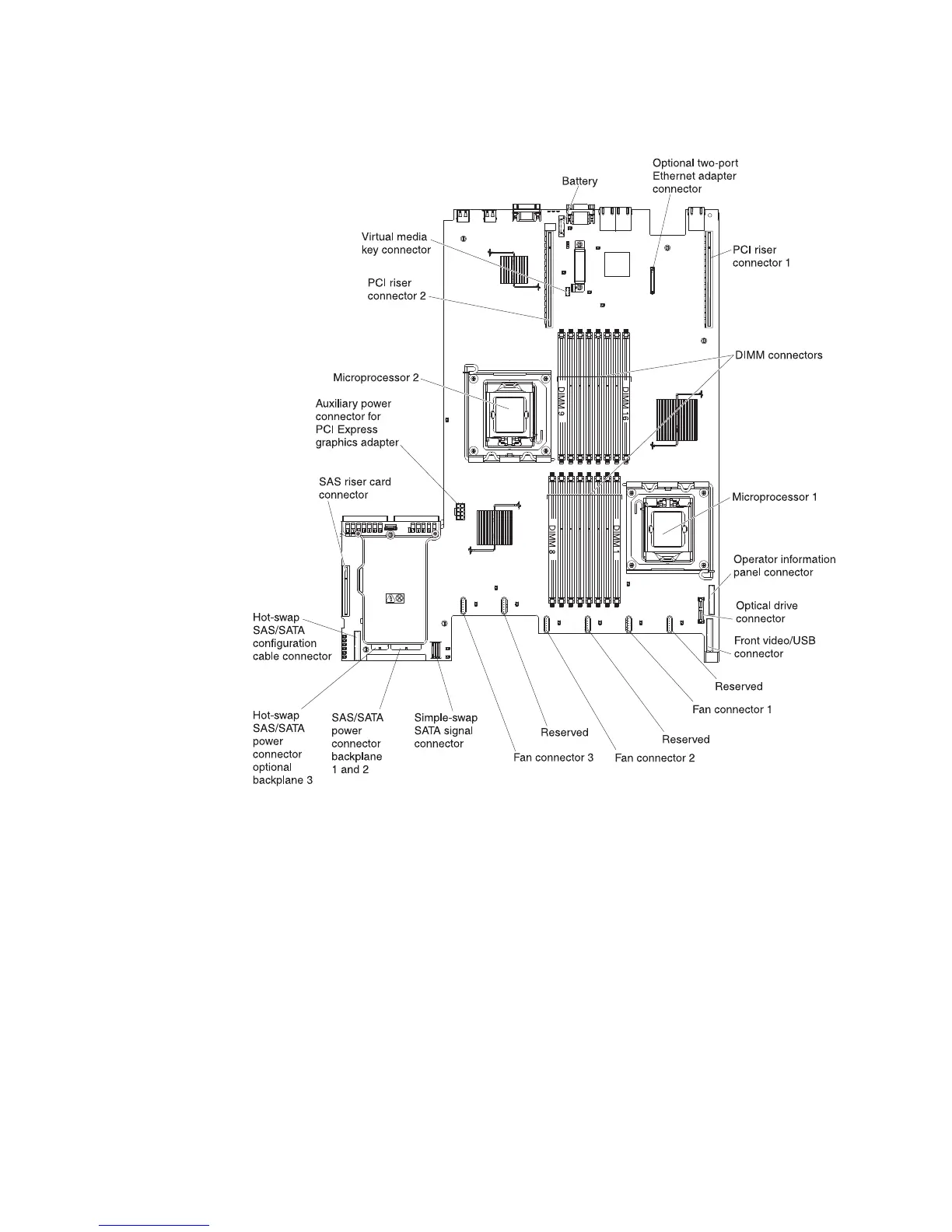

System-board internal connectors
The following illustration shows the internal connectors on the system board.
24 System x3650 M2 Type 7947: Installation and User’s Guide
