Connecting the external cables

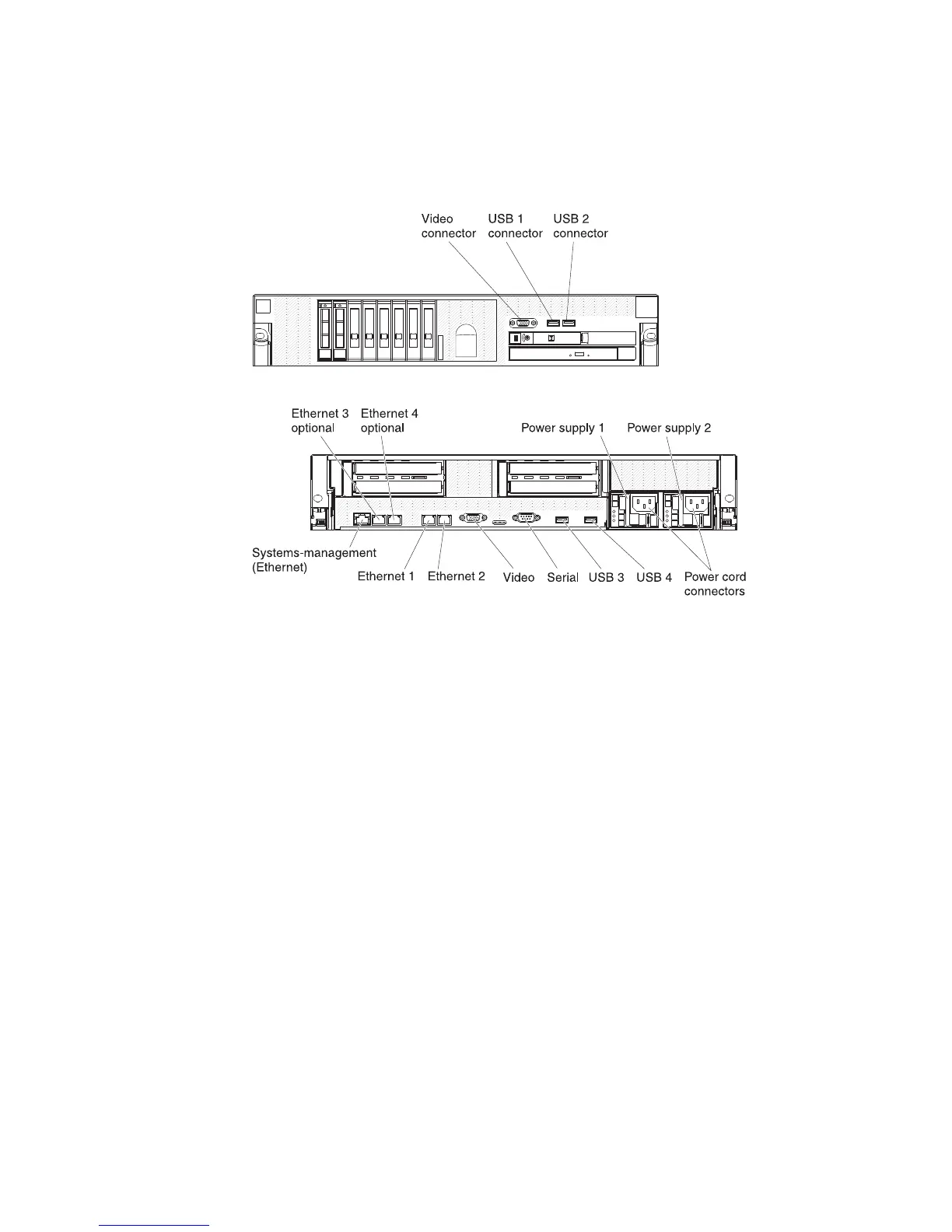

The following illustrations show the locations of the input and output connectors on
the front and rear of the server.
Front view
Rear view
See the documentation that comes with any external devices for additional cabling
instructions. It might be easier for you to route cables before you connect the
devices to the server.
Cable identifiers are printed on the cables that come with the server and optional
devices. Use these identifiers to connect the cables to the correct connectors.
If the server comes with an installed operating system, see the documentation that
comes with the operating system for additional cabling instructions.
108 System x3650 M2 Type 7947: Installation and User’s Guide

IBM x3650 - System M2 - 7947 Specifications

General

Processor	Intel Xeon 5500 series
Chipset	Intel 5520
Model	IBM x3650 - System M2 - 7947
Memory	Up to 192 GB DDR3
Storage	Up to 8 TB SAS/SATA
RAID Support	RAID 0, 1, 10
Network Interface	Dual Gigabit Ethernet
Power Supply	Dual 675W
Expansion Slots	Six PCIe slots
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Form Factor	Rack (2U)
