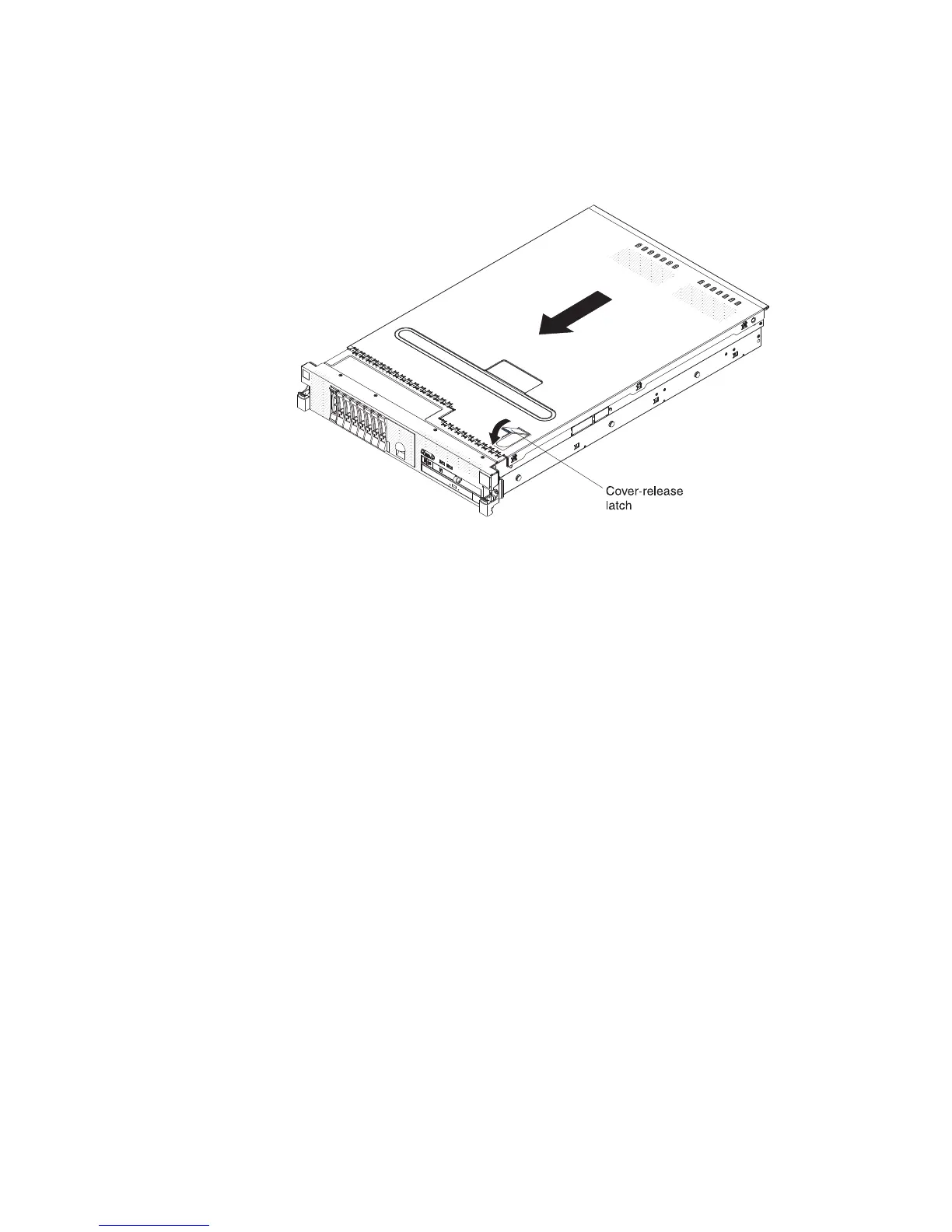

Replacing the server cover
To replace the server cover, complete the following steps:
1. Make sure that all internal cables are correctly routed.
2. Place the cover-release latch in the open (up) position.
3. Insert the bottom tabs of the top cover into the matching slots in the server
chassis.
4. Press down on the cover-release latch to slide the cover forward and lock the
cover in place.
5. Slide the server into the rack.
Chapter 2. Installing optional devices 107
