IBM x3650 - System M2 - 7947 User Manual

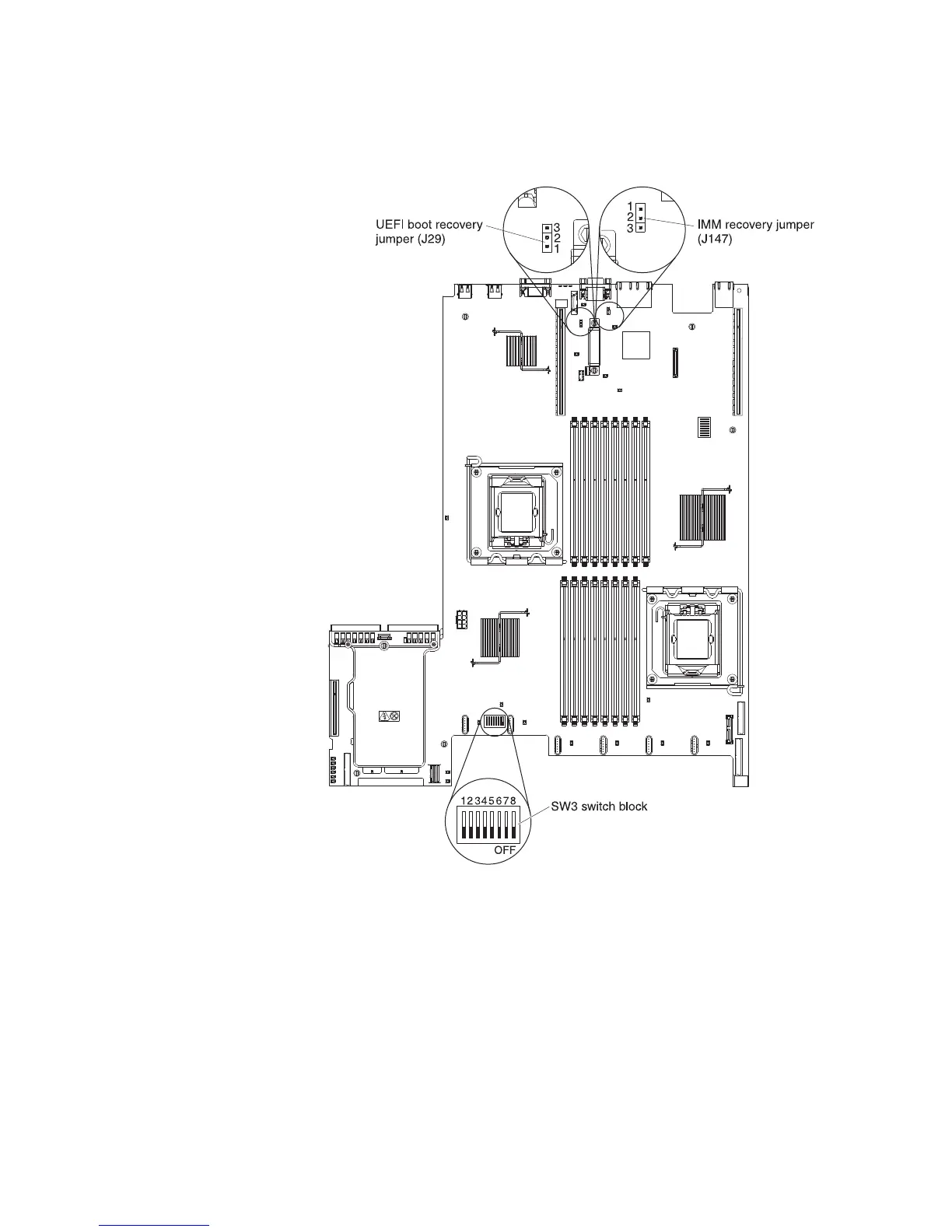

v For the Pass 8 level system board, change the position of the power-on
password switch (enable switch 5 of the system board switch block (SW3) to
bypass the power-on password check (see Table 4 on page 27 for more
information).
Attention: Before you change any switch settings or move any jumpers, turn
off the server; then, disconnect all power cords and external cables. See the
safety information that begins on page vii. Do not change settings or move
jumpers on any system-board switch or jumper blocks that are not shown in this
document.
The default for all of the switches on switch block (SW3) is Off.
While the server is turned off, move switch 5 of the switch block (SW3) to the On
position to enable the power-on password override. You can then start the Setup
utility and reset the power-on password. You do not have to return the switch to
the previous position.
The power-on password override switch does not affect the administrator
password.
Chapter 3. Configuring the server 117

IBM x3650 - System M2 - 7947 Specifications

General

Processor	Intel Xeon 5500 series
Chipset	Intel 5520
Model	IBM x3650 - System M2 - 7947
Memory	Up to 192 GB DDR3
Storage	Up to 8 TB SAS/SATA
RAID Support	RAID 0, 1, 10
Network Interface	Dual Gigabit Ethernet
Power Supply	Dual 675W
Expansion Slots	Six PCIe slots
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Form Factor	Rack (2U)
