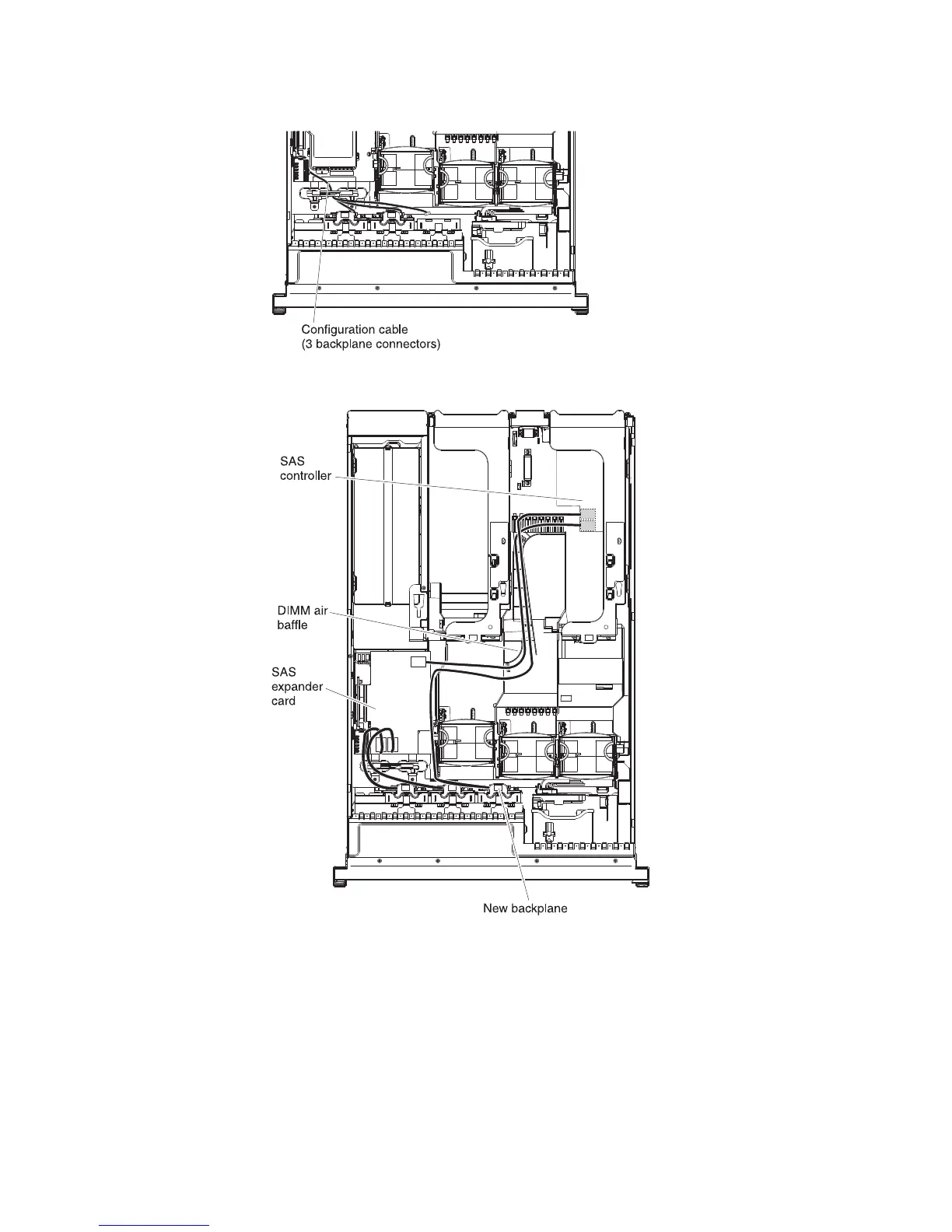

The following illustration shows the internal routing for the configuration cable.
The following illustrations show the internal routing for the SAS hard disk drive
backplane cables.
Chapter 2. Installing optional devices 41
