To install a drive in a simple-swap bay, complete the following steps.
Attention: To maintain proper system cooling, do not operate the server for more
than 10 minutes without either a drive or a filler panel installed in each bay.
1. Install the 2.5 inch simple-swap hard disk drive backplane.
2. Remove the drive filler panel from the front of the server.

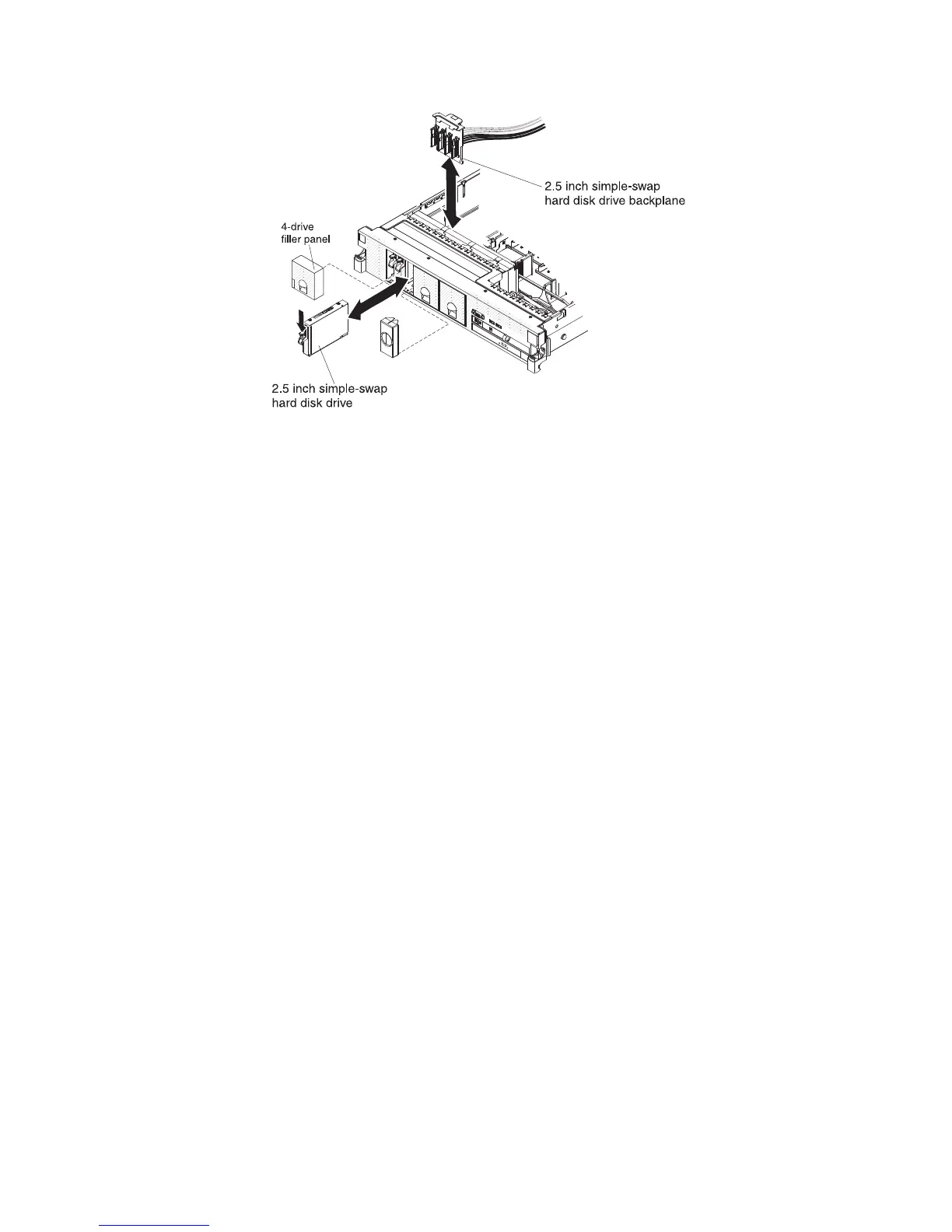

3. Orient the drive as shown in the illustration.
4. Make sure that the tray handle is open.
5. Align the drive assembly with the guide rails in the bay.
6. Gently push the drive assembly into the bay until the drive stops.
7. Push the tray handle to the closed (locked) position.
8. If the system is turned on, check the hard disk drive status LED to verify that
the hard disk drive is operating correctly.
Note: You might have to reconfigure the disk arrays after you install hard disk
drives. See the RAID documentation on the IBM ServeRAID Support CD for
information about RAID controllers.
Chapter 2. Installing optional devices 59

IBM x3650 - System M2 - 7947 Specifications

General

Processor	Intel Xeon 5500 series
Chipset	Intel 5520
Model	IBM x3650 - System M2 - 7947
Memory	Up to 192 GB DDR3
Storage	Up to 8 TB SAS/SATA
RAID Support	RAID 0, 1, 10
Network Interface	Dual Gigabit Ethernet
Power Supply	Dual 675W
Expansion Slots	Six PCIe slots
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Form Factor	Rack (2U)
