28. Connect the loose end of the shorter SAS signal cable (this cable has two
straight connectors and is already connected to the SAS controller) to the rear
connector on the SAS expander card. Route the cable through the left side of
the DIMM air baffle and underneath the cable retention features on the baffle.

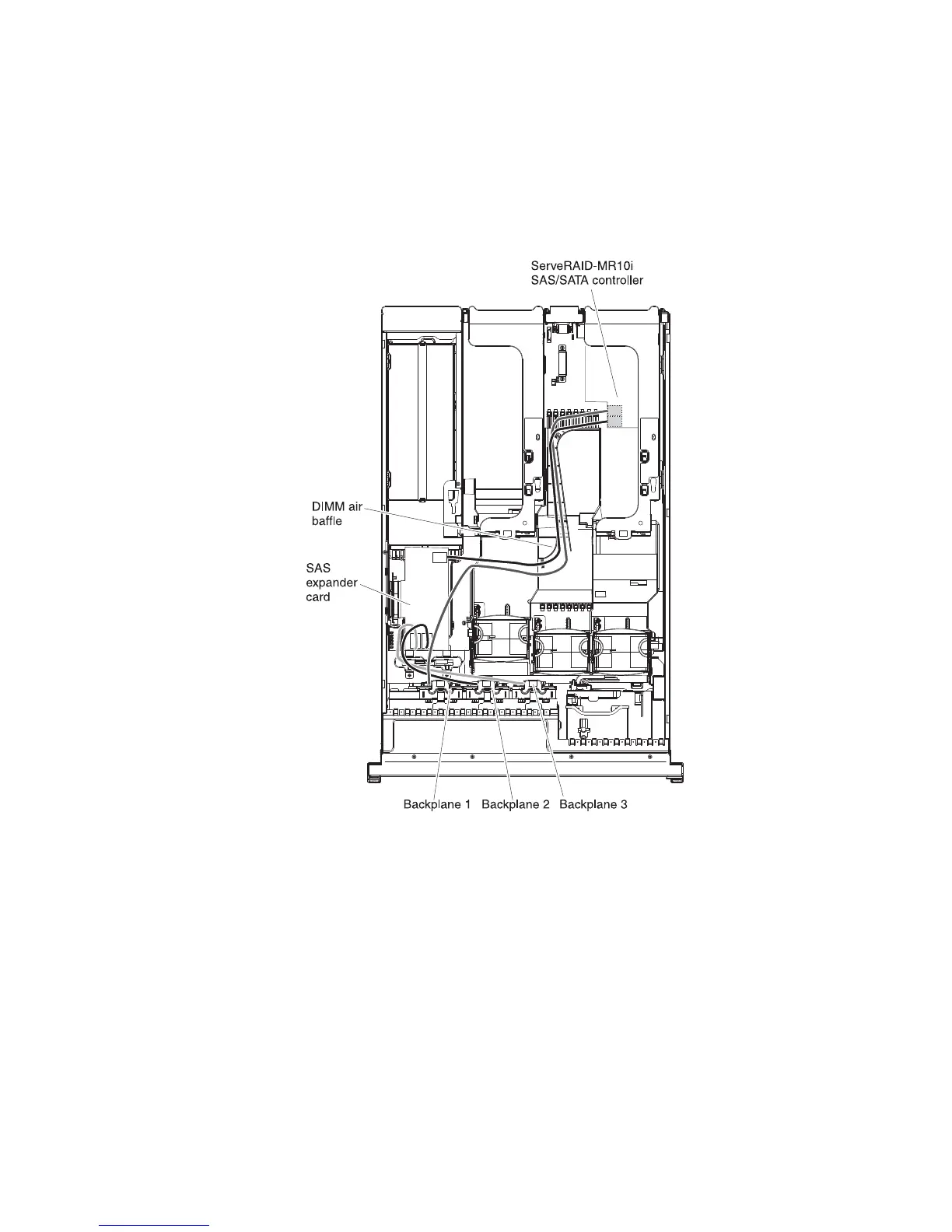

See the illustration.
Note: The cables that connect to a ServeRAID-BR10i SAS/SATA Controller
are reversed.
29. If you removed any fans, install them.
30. Insert the hard disk drives and the fillers the rest of the way into the bays.
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 106.
Chapter 2. Installing optional devices 75

IBM x3650 - System M2 - 7947 Specifications

General

Processor	Intel Xeon 5500 series
Chipset	Intel 5520
Model	IBM x3650 - System M2 - 7947
Memory	Up to 192 GB DDR3
Storage	Up to 8 TB SAS/SATA
RAID Support	RAID 0, 1, 10
Network Interface	Dual Gigabit Ethernet
Power Supply	Dual 675W
Expansion Slots	Six PCIe slots
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Form Factor	Rack (2U)
