MT-AMP 1000
10.4 MIC5/LINE1, MIC6/LINE2

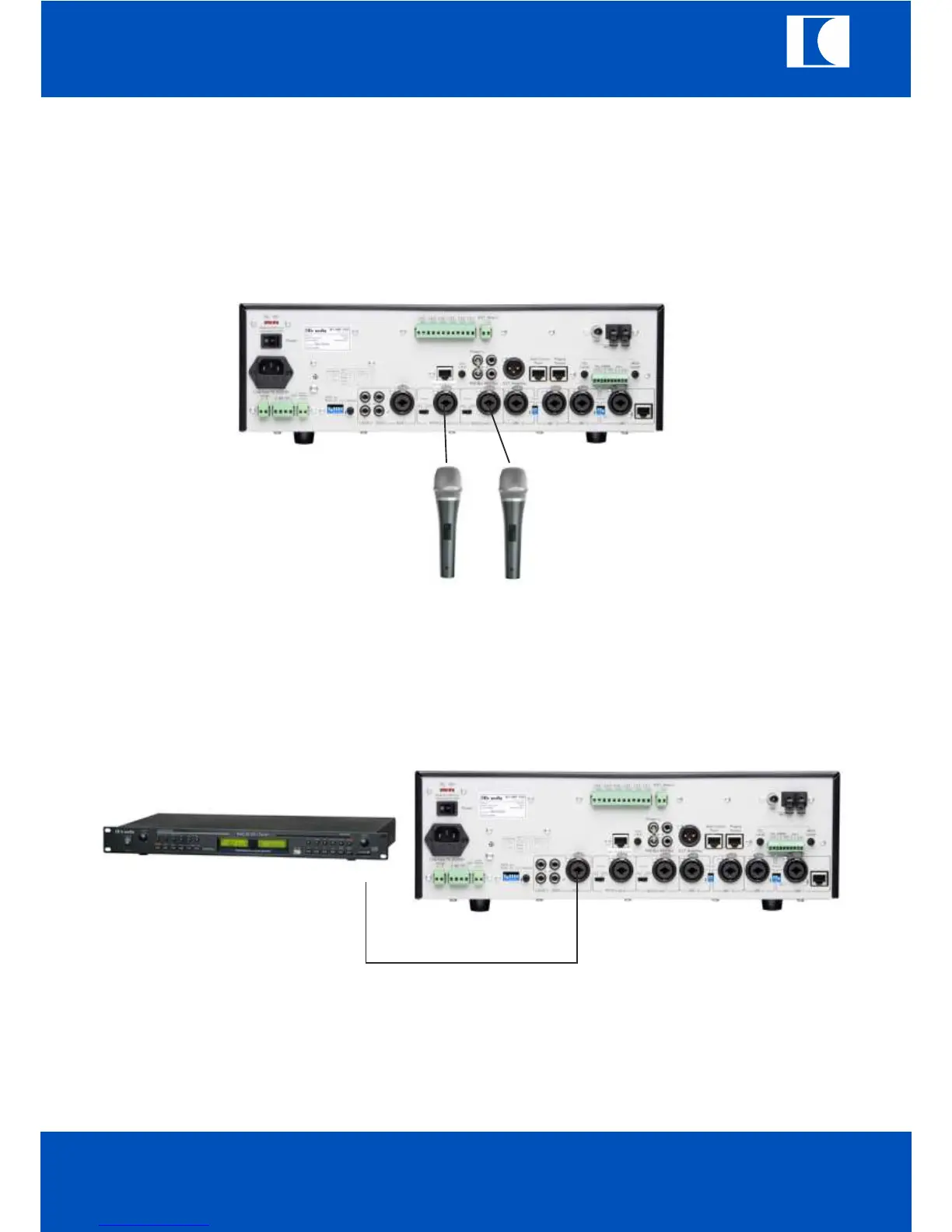

a. Connect the microphonel to MIC5 and MIC6 terminal.
b. The LINE/phantom/MIC select switch is to select different input signal level.
Set at LINE1/and LINE2, the sensitivity will be 200mV, it is available for music source signal input.
c. Set at phantom position, will supply phantom power for condenser microphone input.
d. Set at MIC5.MIC6, there will not be phantom power output, it is available for dynamic microphone.
There are two kinds of input terminal for music source. Both are unbalanced type signal input.
AUX1, 2, 3 can be connected to different music source, such as CD, Tape, Tuner, etc.
11.1 AUX 1
11. Music Source Input
The AUX1 XLR input is connected to the external music source.
The signal is unbalanced.
