MT-AMP 1000
11.2 AUX2, AUX3
Use RCA Plug, the music source can be connected to AUX2 and AUX3.
11.3 Selection of Source, AUX1, AUX2, AUX3
The optional source module MT-CDT-USB (15) can be selected as follows:
Press the select switch (7) at front of MT-AMP 1000 > source module, AUX1, AUX2, AUX3 can be
sequentially selected. The relative LED will light up.
12.1 TEL EMG I/P “+ /GND/ -”
The input of “+ /GND/ -”is a balanced input signal from telephone.
12.2 TEL EMG I/P “0/100V”
The 0/100 pick up signal from output signal of amplifier, it is used for long distance broadcasting.
Adjust TEL level to control the input signal level of TEL/EMEG..
Two type of MOH O/P, one is balanced O/P signal, it can be connected to the input
of other monitor amplifier.
The other is monitor amplifier output for 8次monitor speaker.

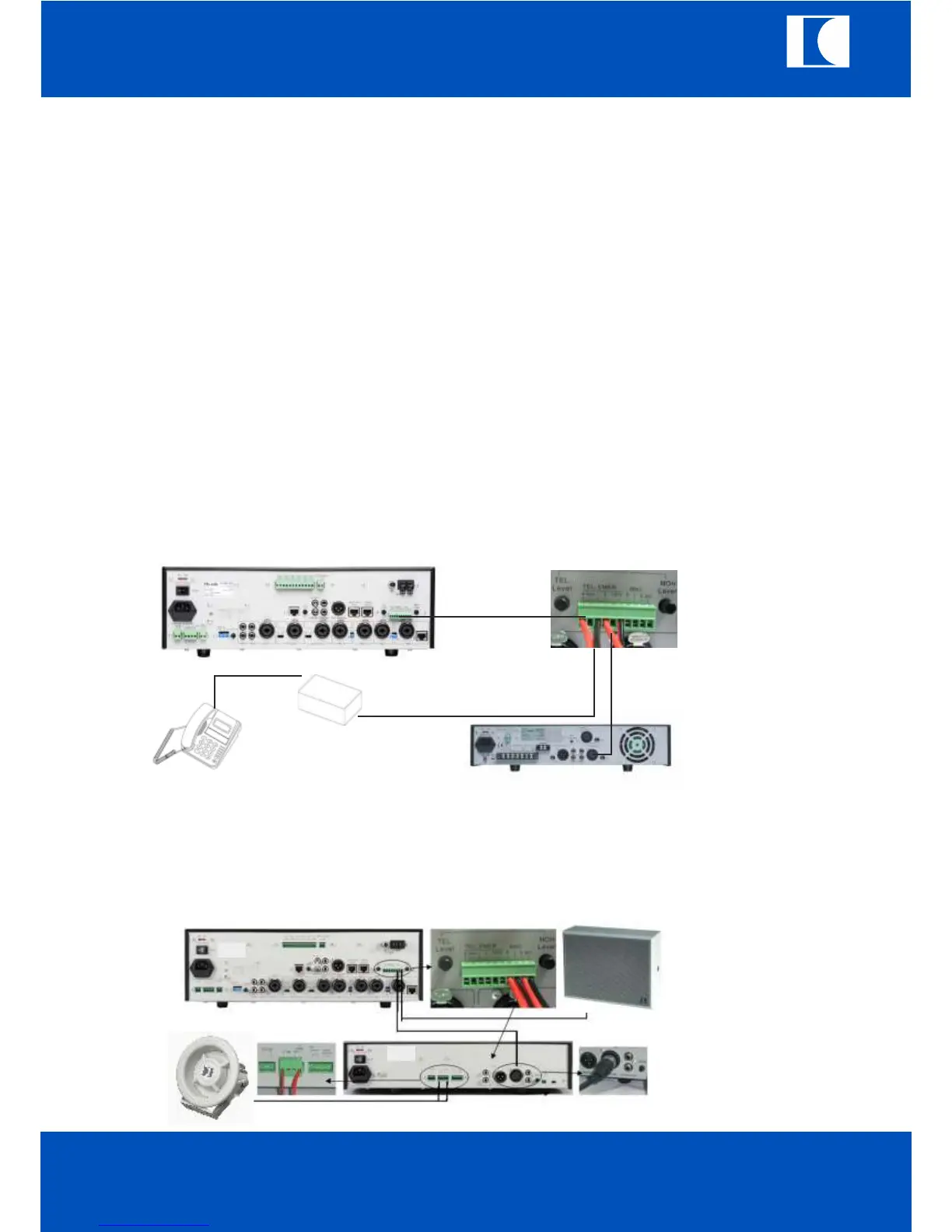

12. Connection of TEL EMG I/P “+ /GND/ -”and“0/100V”
13. MOH (mosic on hold)
