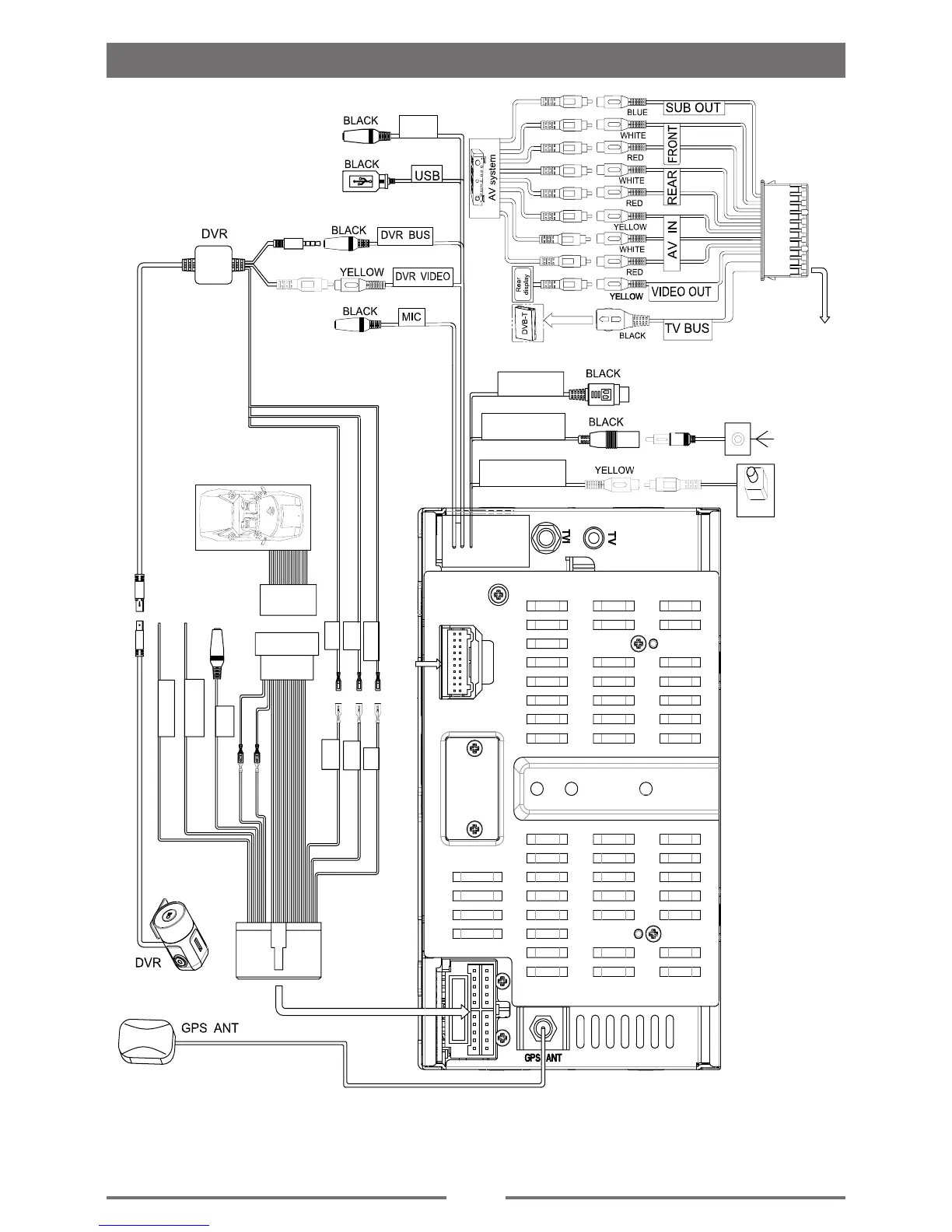

Wire Connections
connect to ①
①
TMC
DAB BUS
RADIO ANT
RADIO ANT
CAMERA IN
SWC
BLACK
YELLOW
RED
BLACK
GND
ACC
B+
GND
ACC
BATT+
RED
YELLOW
Green/white
BRAKE
Pink
REVERSE
CAMERA
