ICE Games SNACK ATTACK - Page 34

34
D C
B A
4321
D C
B A
4321
DATE
7/9/01
DESCRIPTION
#CS2060X - OPTO HARNESS
DRAWN BY
MMARTIN
FILENAME
CS.VSD
PAGE
11 OF 16
REVISED
2/6/02
TITLE

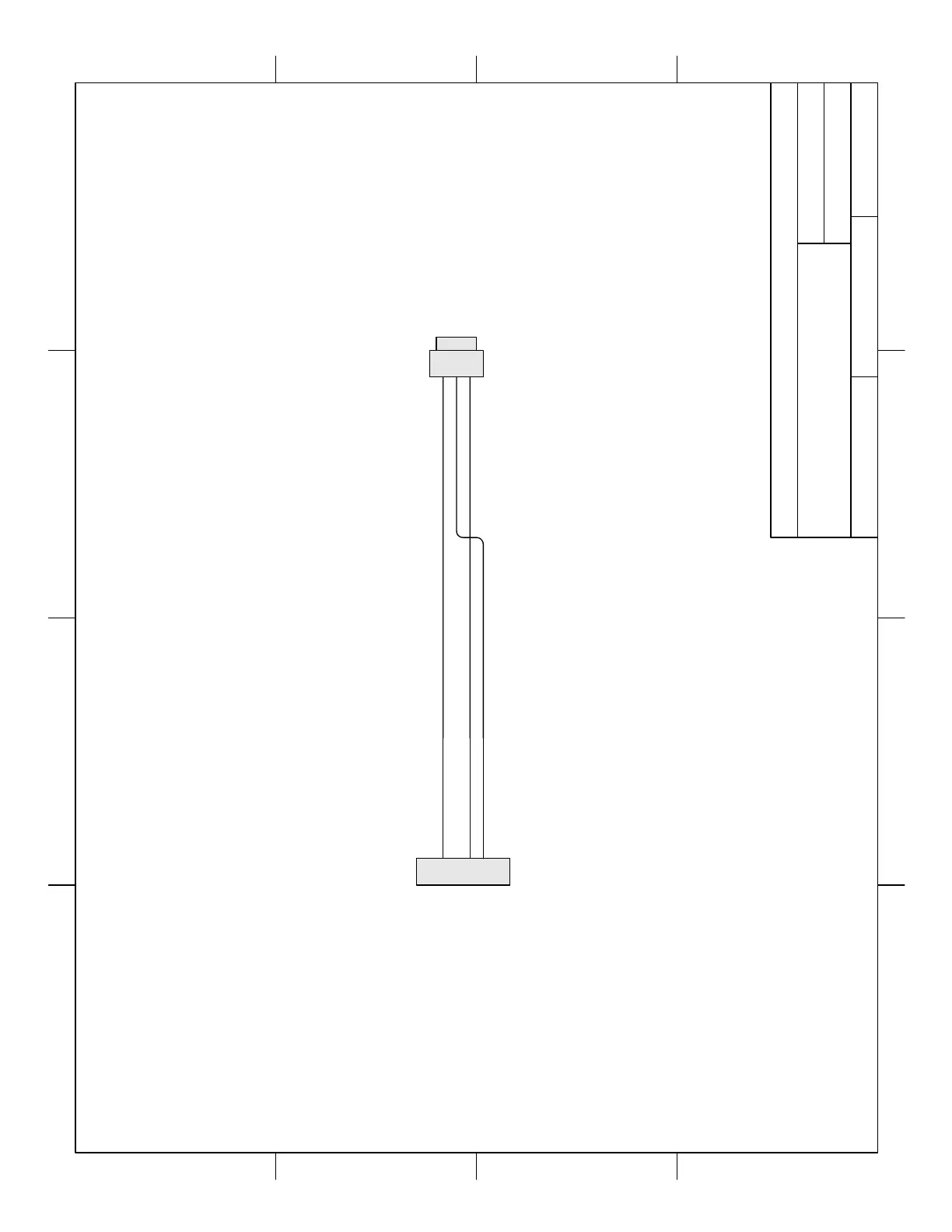

SNACK ATTACKER
1 2 3 4 5 6
6 PIN AMP HOUSING #2944 CONTACT PIN #2201
1 2 3
3 PIN PLUG #2206 SOLID PIN #2100S
KEY(2239) orange black green/black KEY(2239)
+ 12 VDC
GND
PRIZE
+ 12 VDC PRIZE GND
orange
green/black
black
20 "
P4
To Opto Board
To Mainboard
