Ice Hoopla - How to Remove the Conveyor Assembly

Step 3: The conveyor
AC power is accessed
under the control panel.
Disconnect this harness
before removing the
conveyor.

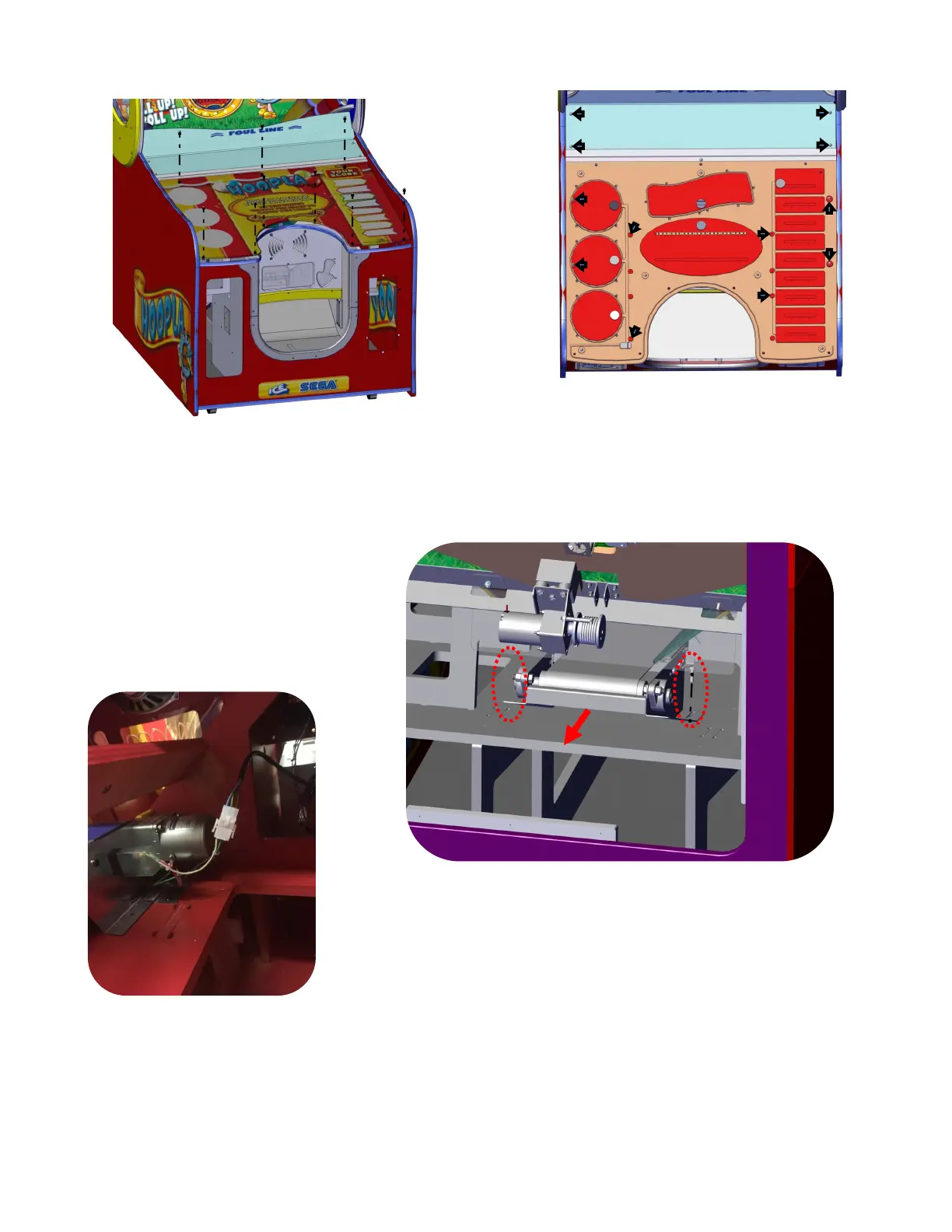

How to Remove the conveyor assembly
Step 1:Remove the control panel cover
by removing the nine 5/32” Allen screws
shown.
Step 2:Then remove the twelve bolts
and screws shown here.
Lift up on the control panel assembly
and unplug the LED Connectors.
Step 4: From the back of the game, remove the two bolts
holding the conveyor to the cabinet. The conveyor will now
slide out from the back of the game.
Step 5: When installing the replacement conveyor, slide the new conveyor into the front slots and
keep pushing all the way forward until it stops. Then secure the conveyor with two bolts.
