ICE RS26 / RS28 / RS32
OPERATOR MANUAL

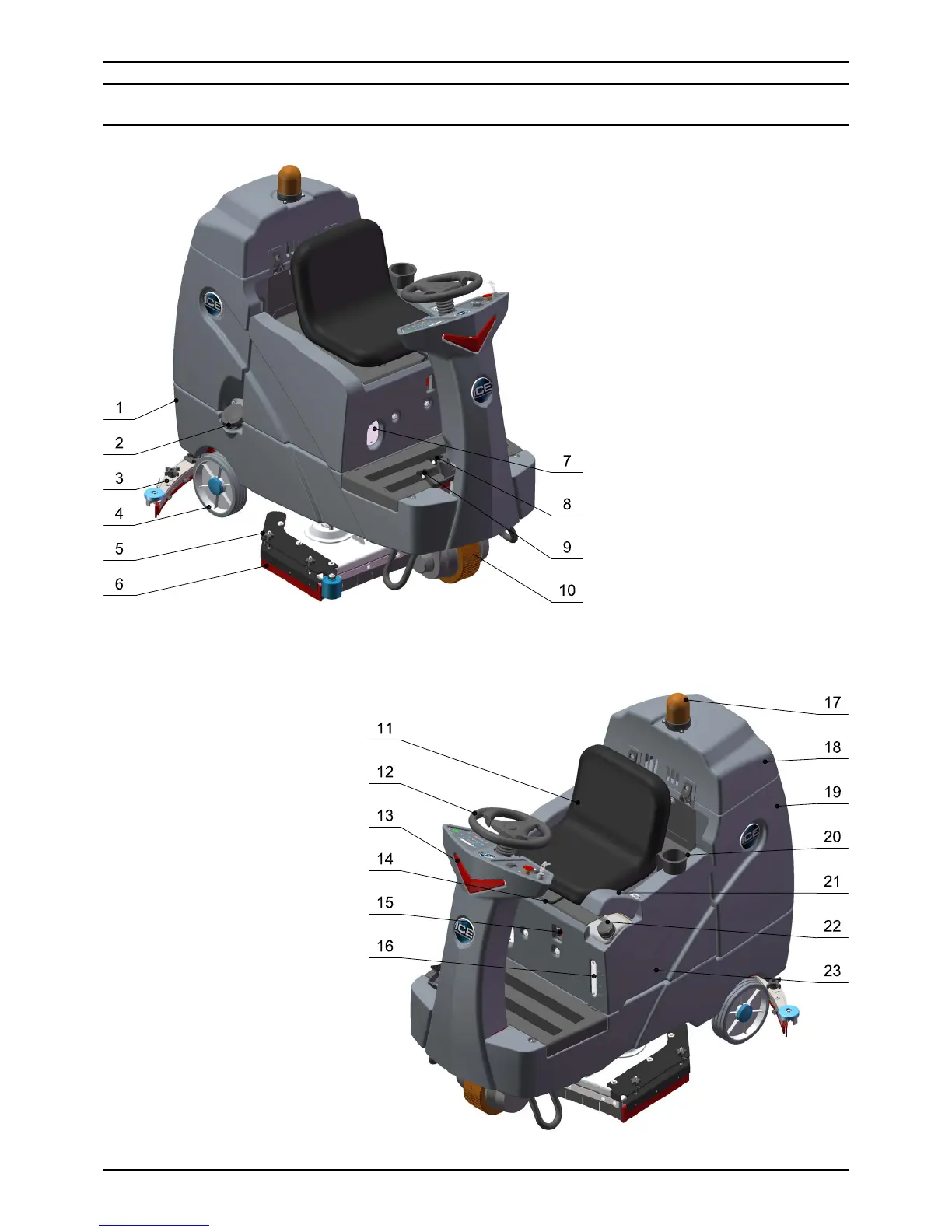

MACHINE COMPONENTS
1. Solution tank
2. Hose ll port & Cap
3. Squeegee assembly
4. Wheels, 10 inch
5. Scrub head assembly
6. Side squeegee assembly
7. Watching window, on-
board battery charger
8. Brake pedal
9. Propel pedal
10. Front drive wheel
11. Operator seat
12. Steering wheel
13. LED light, work
14. Adjusting handle, seat
15. Off-board battery
charger receptacle
16. Detergent level watching
window
17. Warning light
18. Recovery tank cover
19. Recovery tank
20. Cup holder
21. Cap
22. Detergent bottle
23. Battery box
