SERVICE
CAUTION
This game uses complex electronic components that are very sensitive to static electricity. Observe precau-
tions below before handling these electronics. Failure to do so may void the warranty and damage electronic
assemblies.
Before servicing electronics, turn off AC power to the game. Wait for capacitors to discharge.
DO NOT remove any of the components on the main board (e.g. compact flash and eproms) while the game is
powered on. This may cause permanent damage to the parts and the main board.
Before touching or handling electronic assemblies, discharge static electricity on your body. To discharge this
static, begin by connecting the line cord to a grounded outlet. Don’t turn on the game. Next, touch the safety
ground stud of the power supply chassis.
Store electronic assemblies in an anti-static area. Use anti-static bags to store or transport the game circuit boards.
Don’t remove or connect electronic assemblies when cabinet power is on. Otherwise, you’ll damage electronic as-
semblies and void the game’s warranty.
After you complete maintenance or service, replace ground wires, shields, safety covers and install and tighten
ground and mounting screw.
MARQUEE BULB REPLACEMENT

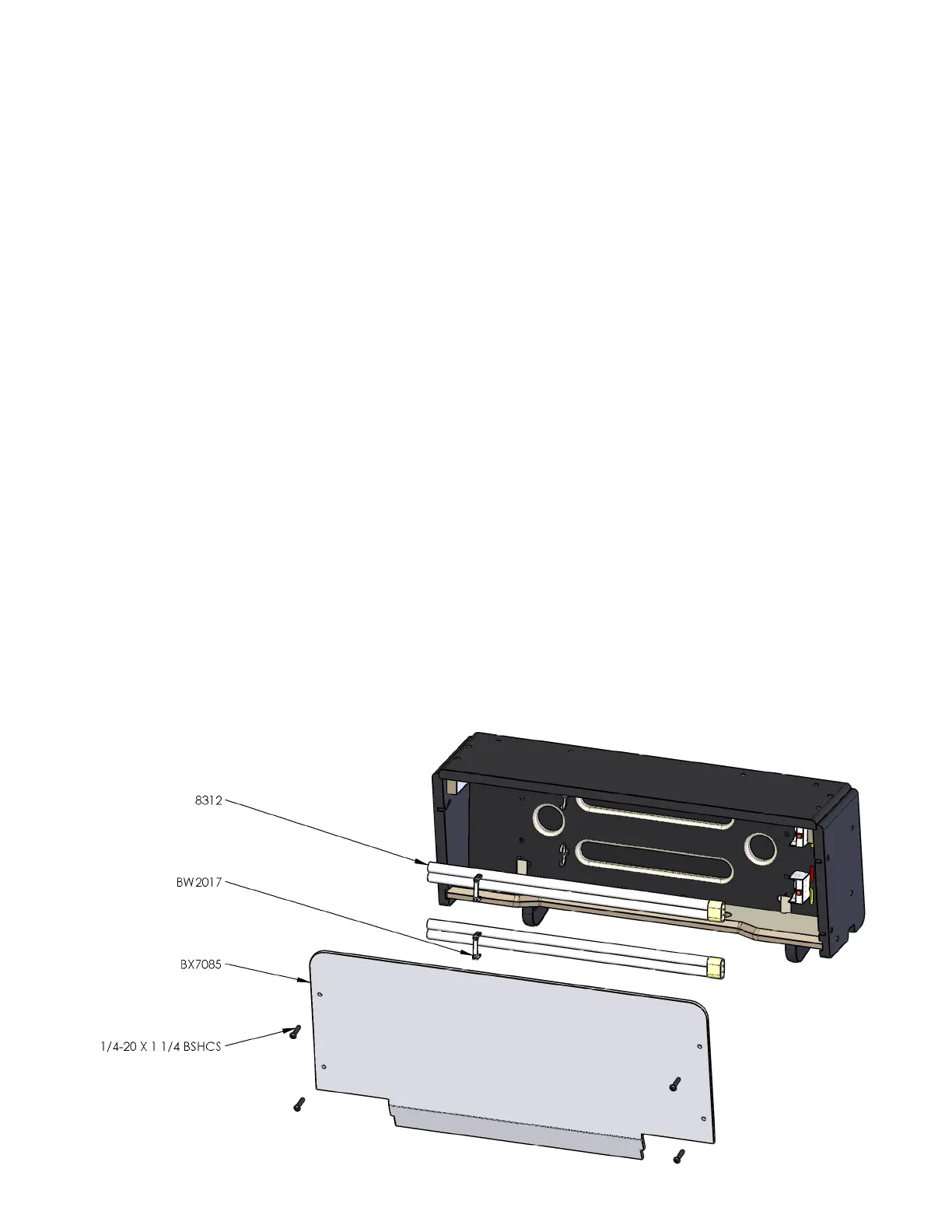

Remove the front panel of the marquee by removing the four 1/4-20 bolts. Press the red button on
the socket to release the bulb and remove the retaining clip (BW2017) as shown below. Replace
the bulbs with ICE part number 8312. Be sure to reinstall the bulb clip (BW2017) when replacing the
bulb or the bulb will not stay installed in light socket! Replace the front graphic panel and reinstall
the four 1/4-20 bolts.
