Accessing Upper LED light strips and Display Board

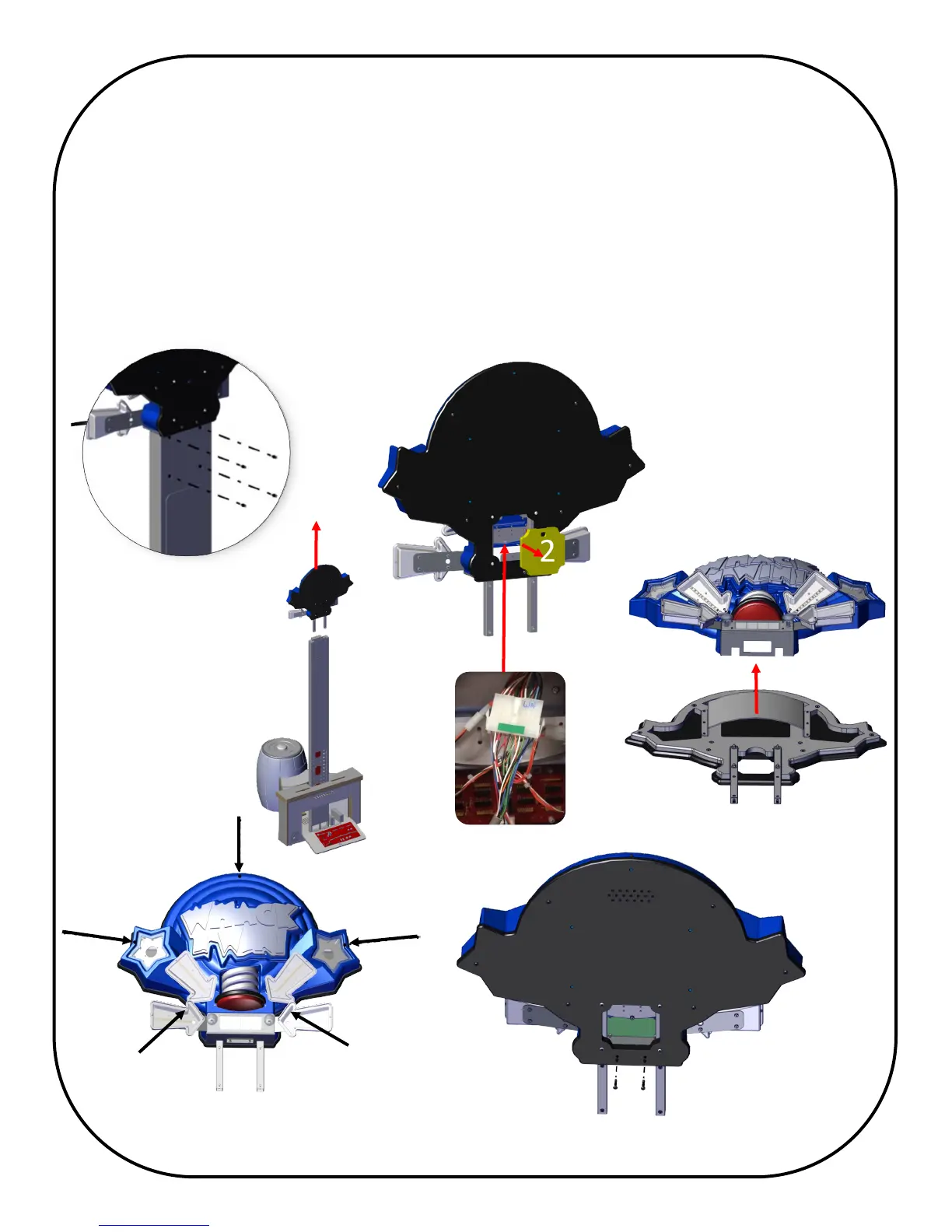

To gain access to the electronics found inside the upper marquee, you will need to remove the upper
marquee. Remove the four 1/4-20 x 7/8 bolts and washers holding the marquee in place (1). Open the
back access door and unplug the harness (2 + 3). Li the marquee up and place the marquee face down
onto a table (4).
Remove the Square bit screws around the outside of the marquee (5). Using a wrench on the inside,
remove the two lower 1/4-20 Allen bolts (6). Now separate the back assembly from the front (7).
1
2
3
4
5
6
7
