iCharger 458DUO - Pulse Measurement

458DUO
Dual Balance Charger/Discharger/DC Power
- 32 -
Pulse Measurement

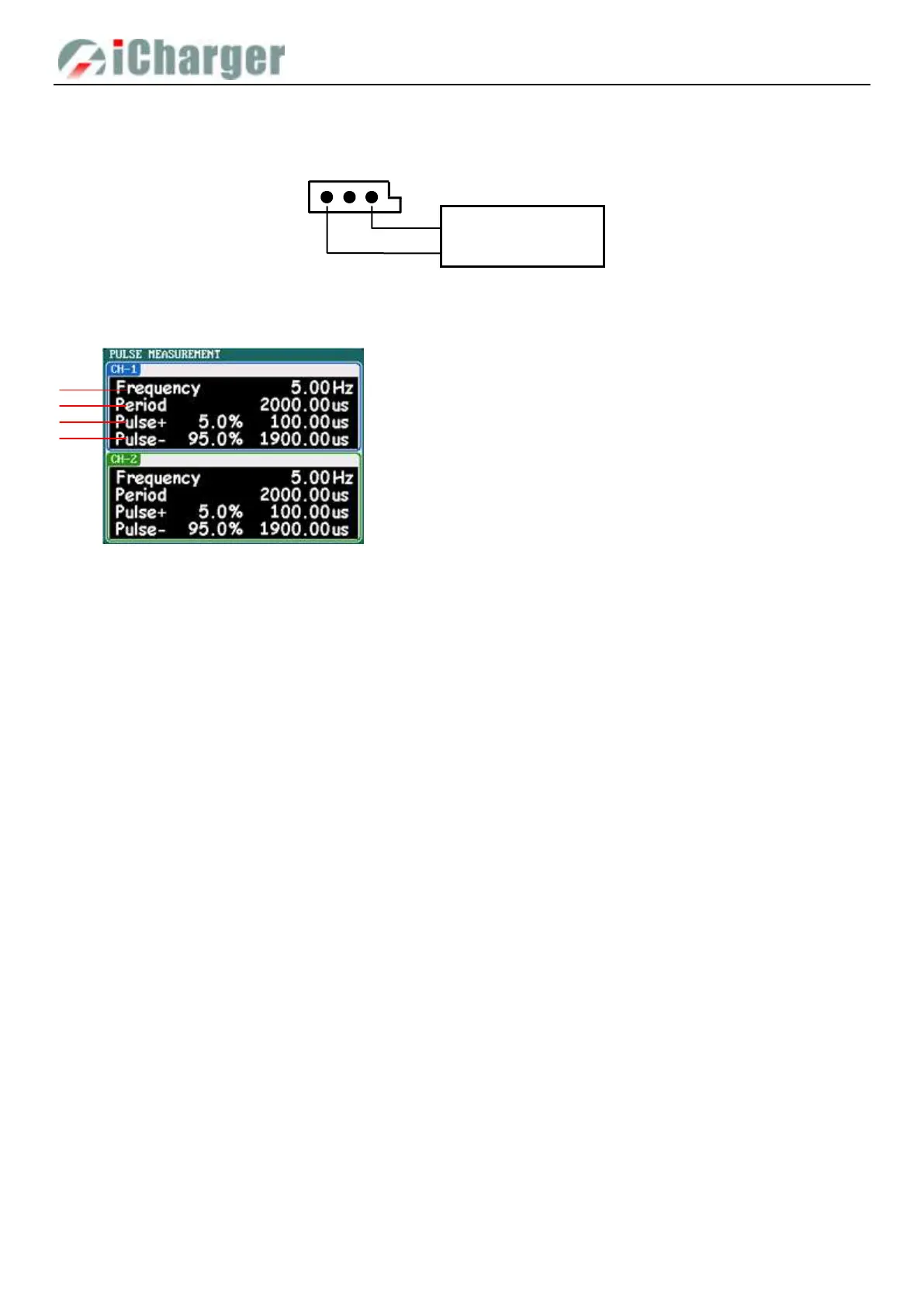

Connect the signal receiver or transistor with the multifunctional port like below, which can measure their pulse signal:
Select SYSTEM MENU→Pulse Test to enter the pulse test interface, only CH-1 J1 port supports the input signal of Pulse
Measurement.
+
-
S
-
S
Signal Receiver or
Transistor
1. Pulse frequency
2. Pulse period
3. Positive pulse duty cycle and pulse width
4. Negative pulse duty cycle and pulse width
1
2
3
4
