DX12
Dual Balance Charger/Discharger/DC Power

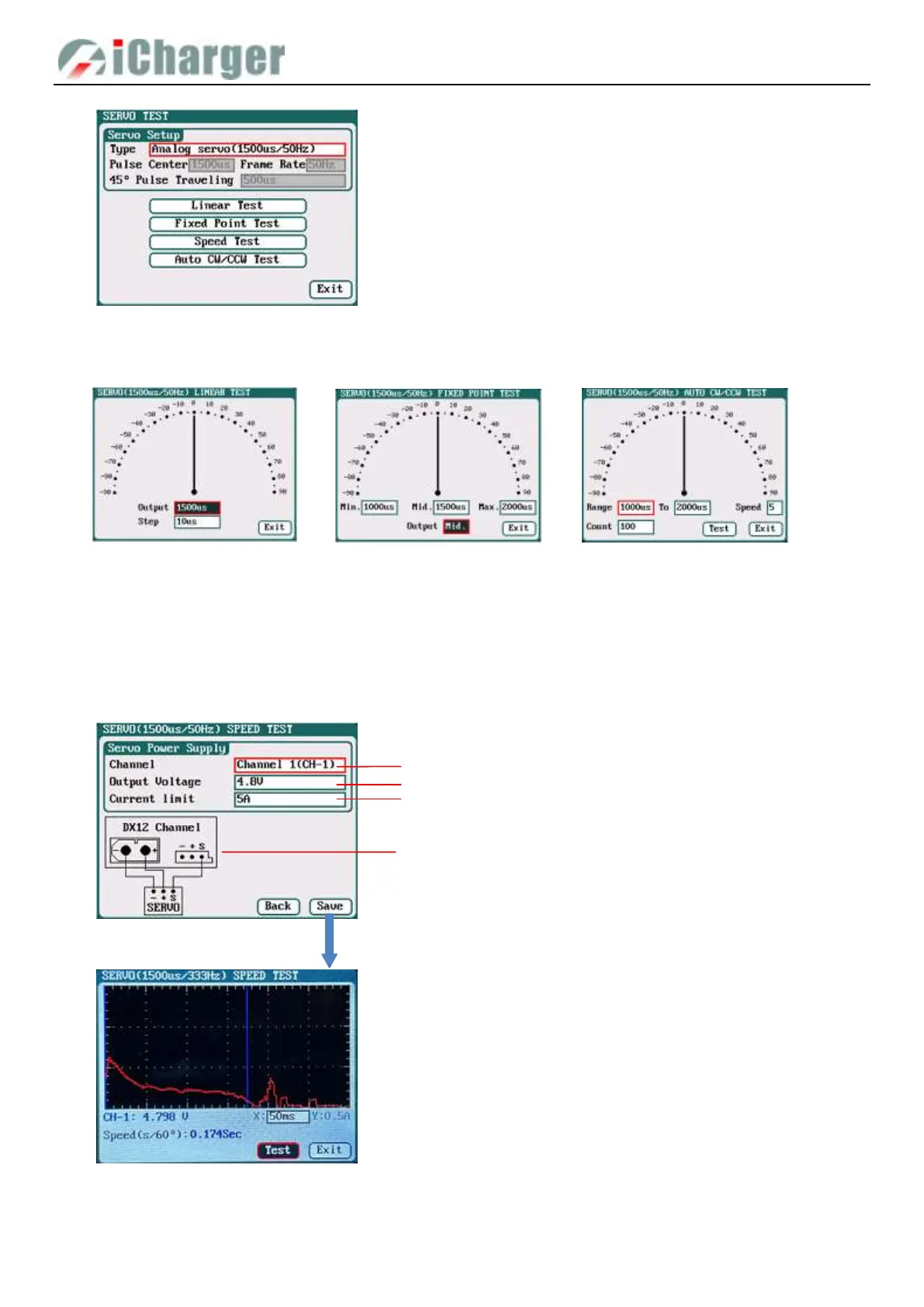

Select the test mode and go to the following corresponding interface.
Speed Test:
1. Type: Analog servo (1500us/50Hz)
Digital servo (1500us/333Hz)
Digital servo (760us/560Hz)
User: Pulse Center: 700us-1600us
Frame Rate: 40Hz-700Hz
45°Pulse Traveling:100us-1000us
2. Liner Test
3. Fixed point Test
4. Speed Test
5. Auto CW/CCW Test
Liner Test: When turning the knob,
the pointer deflects with the setting
value of Step, and the servo responds
accordingly.
Fixed Point Test: When turning the
knob, the pointer deflects among
each setting value and the servo
responds accordingly.
Auto CW/CCW Test: Click Test
button then the pointer deflects the
setting times at a set rate back and forth
among each setting values, and the
servo responds accordingly.
1.Channel
Channel 1(CH-1)
通道
1
Channel 1(CH-2)
通道
2
2.Output Voltage 4V-10V; default: 4.8V
3.Current limit 1A-10A; default: 5A
4. Wiring diagram
To Next Page
