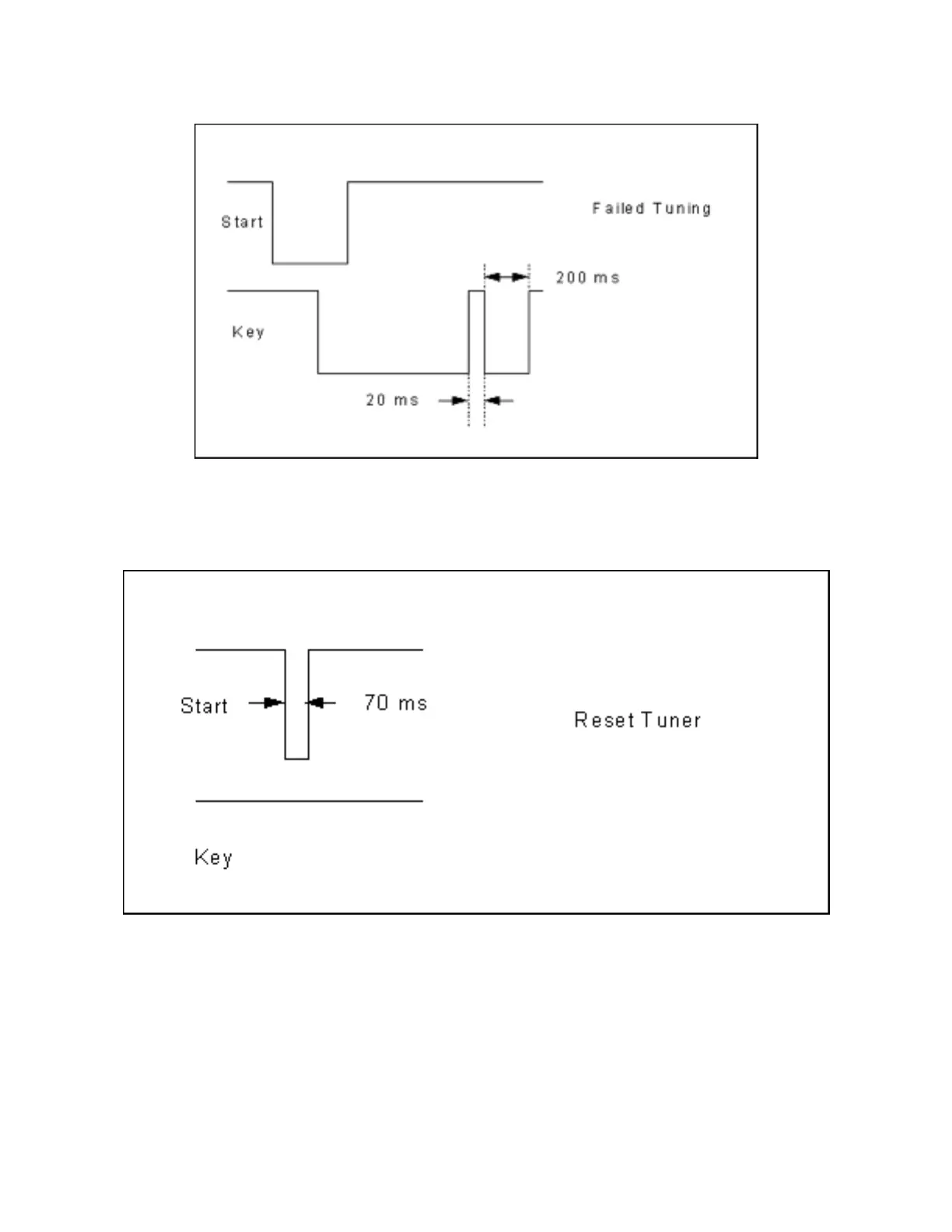

FIGURE 5: FAILED TUNING RESPONSE
The command to reset the tuner causes it to pass-thru (tuning network out of circuit).!
FIGURE 6: TUNER RESET
'
AH-4 Operation
K9EQ
Page of 7 8
