4-1 PREPARATION
■ REQUIRED TEST EQUIPMENT
4 - 1
SECTION 4 ADJUSTMENT PROCEDURES
DC power supply
Frequency counter
Standard signal
generator (SSG)
Distortion meter
Output voltage : 13.8 V DC
Current capacity : 2 A or more
Frequency range : 0.1–300 MHz
Frequency accuracy: ±1 ppm or better
Sensitivity : 100 mV or better
Frequency range : 0.1–300 MHz
Output level : 0.1 µV–32 mV
(–127 to –17 dBm)
Frequency range : 1 kHz ±10 %
Measuring range : 1–100 %
Digital multimeter
DC voltmeter
AC millivoltmeter
Oscilloscope
External speaker
Terminator
Measuring range : 10 mV–10 V
Input impedance : 50 kΩ/V DC or bet-
ter
Measuring range : 10 mV–10 V
Frequency range : DC–20 MHz
Measuring range : 0.01–20 V
Input impedance : 4 Ω
Capacity : 5 W or more
Impedance : 100 kΩ
‘‘

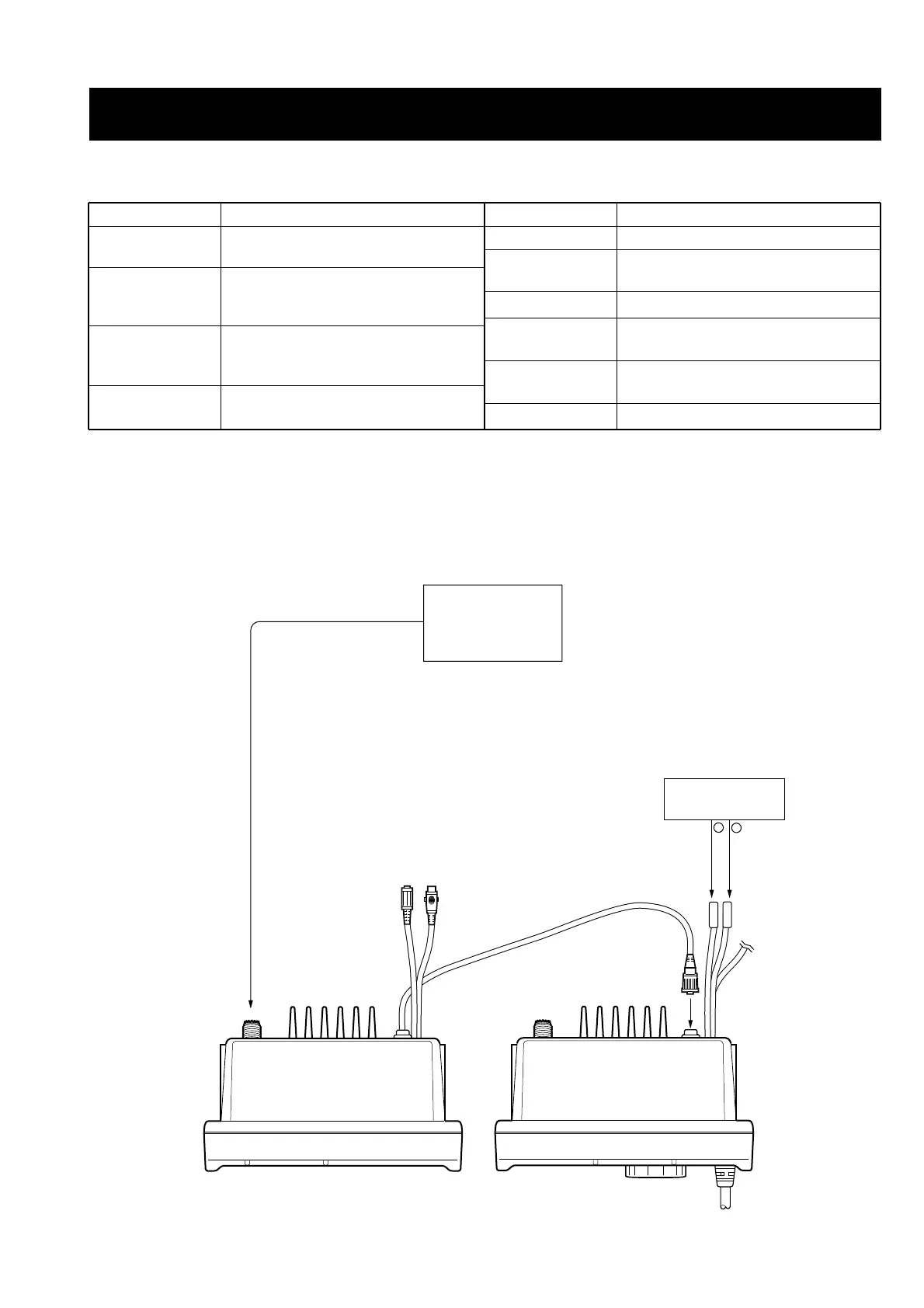

CONNECTIONS
to the antenna connector
Standard signal
generator
–17 to –125 dBm
(32 mV to 0.13 µV)
to DC cable
DC power supply
13.8 V /15 A
–
+
Black Red
