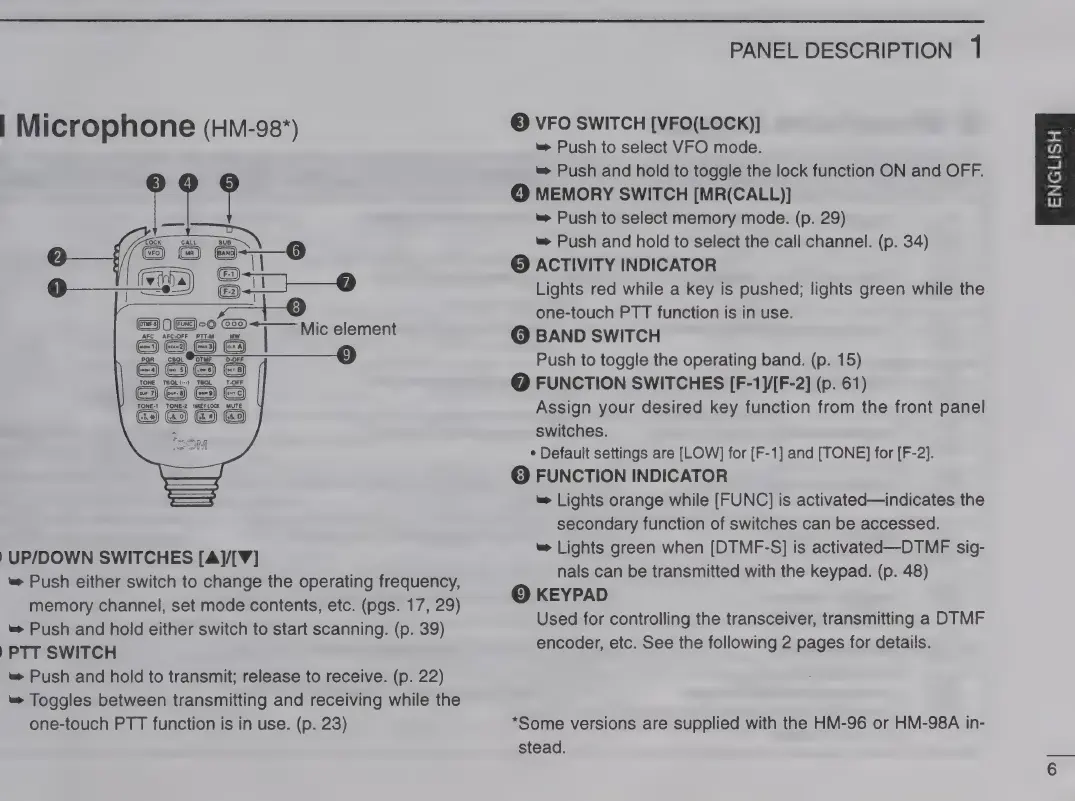

Icom IC-207H Instruction Manual

| Microphone (HM-98")
o/s =>
G3) 0 @)-0 G2) ~_—— Mic element
AFC AFC-OFF PTT-M Mw |
(a)
PGR cso. OTMF D-OFF
TONE TSQL(:*)) TSQL T-OFF
TONE-1 TONE-2 16KEYLOCK MUTE
Icom
|} UP/DOWN SWITCHES [A]/[¥]
=» Push either switch to change the operating frequency,
memory channel, set mode contents, etc. (pgs. 17, 29)
> Push and hold either switch to start scanning. (p. 39)
) PTT SWITCH
“> Push and hold to transmit; release to receive. (p. 22)
“> Toggles between transmitting and receiving while the
one-touch PTT function is in use. (p. 23)
PANEL DESCRIPTION 1
© VFO SWITCH [VFO(LOCK)]
=» Push to select VFO mode.
» Push and hold to toggle the lock function ON and OFF.
© MEMORY SWITCH [MR(CALL)]
=» Push to select memory mode. (p. 29)
» Push and hold to select the call channel. (p. 34)
© ACTIVITY INDICATOR
Lights red while a key is pushed; lights green while the
one-touch PTT function is in use.
© BAND SWITCH
Push to toggle the operating band. (p. 15)
@ FUNCTION SWITCHES [F-1}/[F-2] (p. 61)
Assign your desired key function from the front panel
switches.
¢ Default settings are [LOW] for [F-1] and [TONE] for [F-2].
@ FUNCTION INDICATOR
> Lights orange while [FUNC] is activated—indicates the
secondary function of switches can be accessed.
» Lights green when [DTMF-S] is activated—DTMF sig-
nals can be transmitted with the keypad. (p. 48)
© KEYPAD
Used for controlling the transceiver, transmitting a DIMF
encoder, etc. See the following 2 pages for details.
*Some versions are supplied with the HM-96 or HM-98A in-
stead.
ENGLISH
“al
