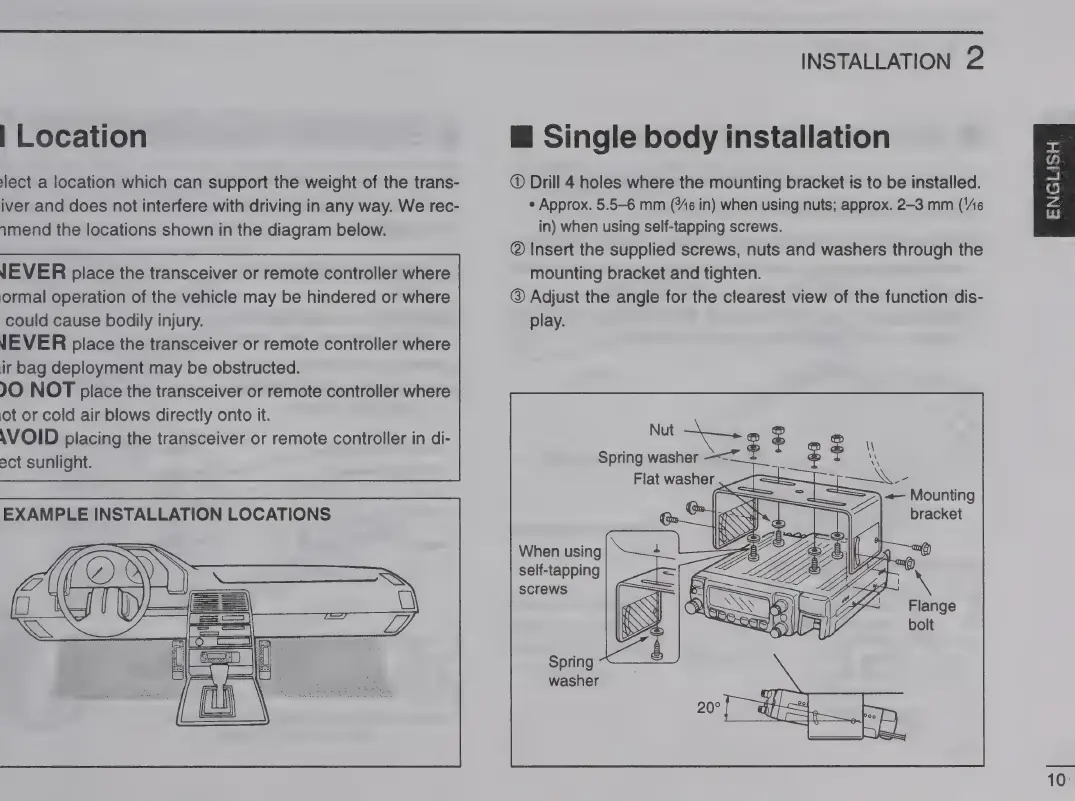

| Location
lect a location which can support the weight of the trans-
iver and does not interfere with driving in any way. We rec-
amend the locations shown in the diagram below.
JEVER place the transceiver or remote controller where
ormal operation of the vehicle may be hindered or where
could cause bodily injury.
YEVER place the transceiver or remote controller where
ir bag deployment may be obstructed.
YO NOT place the transceiver or remote controller where
ot or cold air blows directly onto it.
\VOID placing the transceiver or remote controller in di-
ect sunlight.
EXAMPLE INSTALLATION LOCATIONS
INSTALLATION 2
Single body installation
® Drill 4 holes where the mounting bracket is to be installed.
¢ Approx. 5.5—6 mm (%e in) when using nuts; approx. 2-3 mm (“6
in) when using self-tapping screws.
@ Insert the supplied screws, nuts and washers through the
mounting bracket and tighten.
@® Adjust the angle for the clearest view of the function dis-
play.
Spring washer —<—
Flat washer
< Mounting
bracket
When using
self-tapping
screws
Spring
washer
ae
2
ond
12)
2
uu
