Icom IC-207H

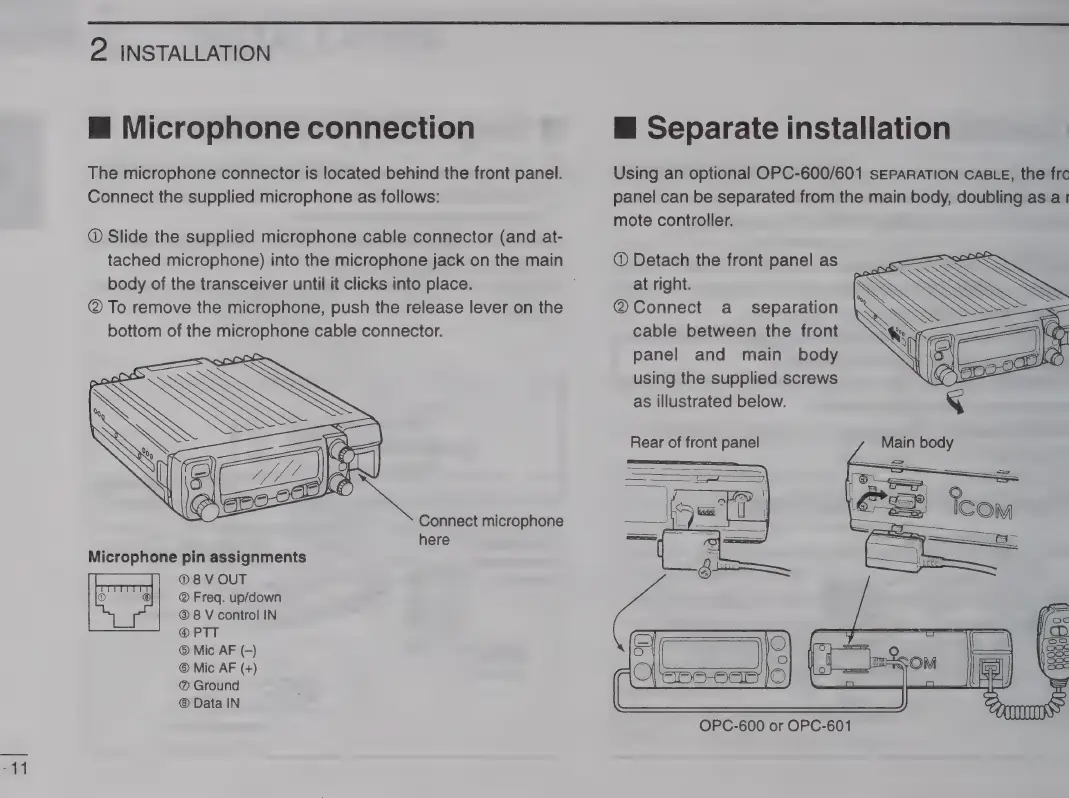

2 INSTALLATION
@ Microphone connection
The microphone connector is located behind the front panel.
Connect the supplied microphone as follows:
@® Slide the supplied microphone cable connector (and at-
tached microphone) into the microphone jack on the main
body of the transceiver until it clicks into place.
@ To remove the microphone, push the release lever on the
bottom of the microphone cable connector.
Connect microphone
here
Microphone pin assignments
®8V OUT
@ Freq. up/down
® 8 V control IN
@ PTT
® Mic AF (-)
© Mic AF (+)
@ Ground
Data IN
ee
— Separate installation
Using an optional OPC-600/601 SEPARATION CaBLE, the fre
panel can be separated from the main body, doubling as at
mote controller.
@ Detach the front panel as
at right.
@Connect a_ separation
cable between the front
panel and main body
using the supplied screws
as illustrated below.
Rear of front panel
OPC-600 or OPC-601
