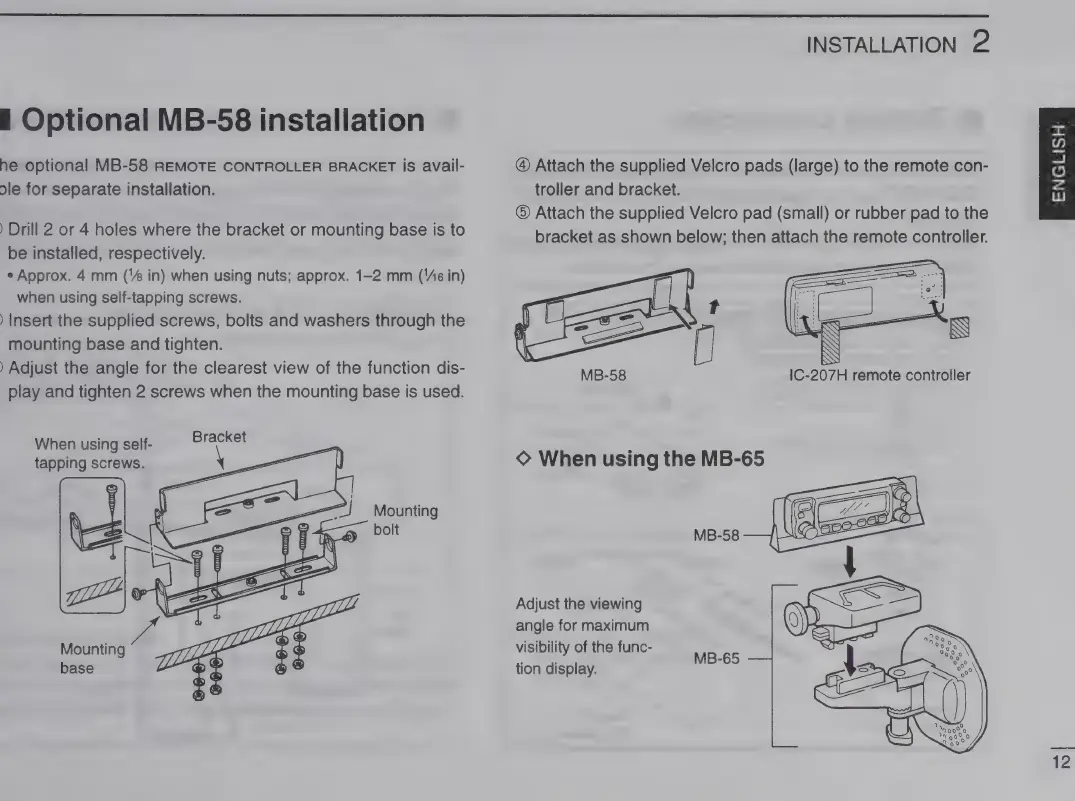

i Optional MB-58 installation
he optional MB-58 REMOTE CONTROLLER BRACKET is avail-
ole for separate installation.
) Drill 2 or 4 holes where the bracket or mounting base is to
be installed, respectively.
e Approx. 4 mm ('% in) when using nuts; approx. 1-2 mm (Ye in)
when using self-tapping screws.
) Insert the supplied screws, bolts and washers through the
mounting base and tighten.
) Adjust the angle for the clearest view of the function dis-
play and tighten 2 screws when the mounting base is used.
Bracket
When using self-
tapping screws.
Mounting
base
INSTALLATION 2
@ Attach the supplied Velcro pads (large) to the remote con-
troller and bracket.
© Attach the supplied Velcro pad (small) or rubber pad to the
bracket as shown below; then attach the remote controller.
Adjust the viewing
angle for maximum
visibility of the func-
tion display. eae
