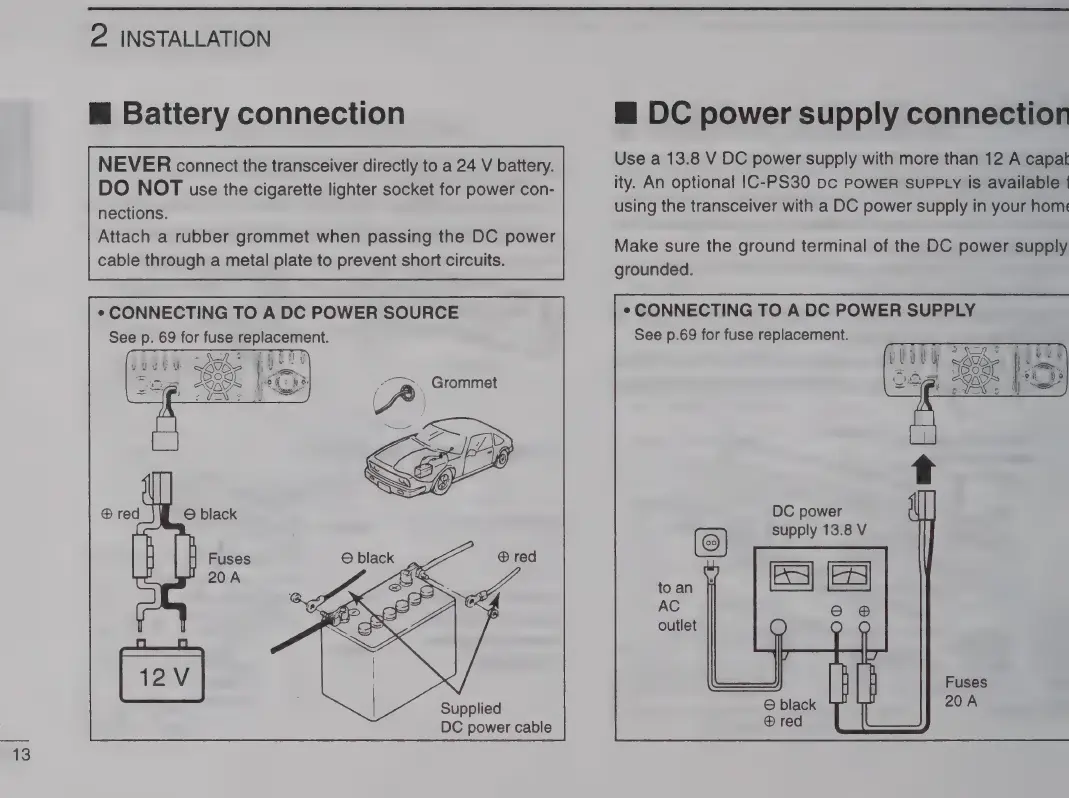

2 INSTALLATION
@ Battery connection
NEVER connect the transceiver directly to a 24 V battery.
DO NOT use the cigarette lighter socket for power con-
nections.
Attach a rubber grommet when passing the DC power
cable through a metal plate to prevent short circuits.
e CONNECTING TO A DC POWER SOURCE
aoe
RP Grommet
{ |
@ red © black
Fuses
20A
12 V
Supplied
DC power cable
Mm DC power supply connection
Use a 13.8 V DC power supply with more than 12 A capat
ity. An optional |C-PS30 pc Power supPPLy is available |
using the transceiver with a DC power supply in your home
Make sure the ground terminal of the DC power supply
grounded.
e CONNECTING TO A DC POWER SUPPLY
See p.69 for fuse replacement.
DC power
supply 13.8 V
