—i

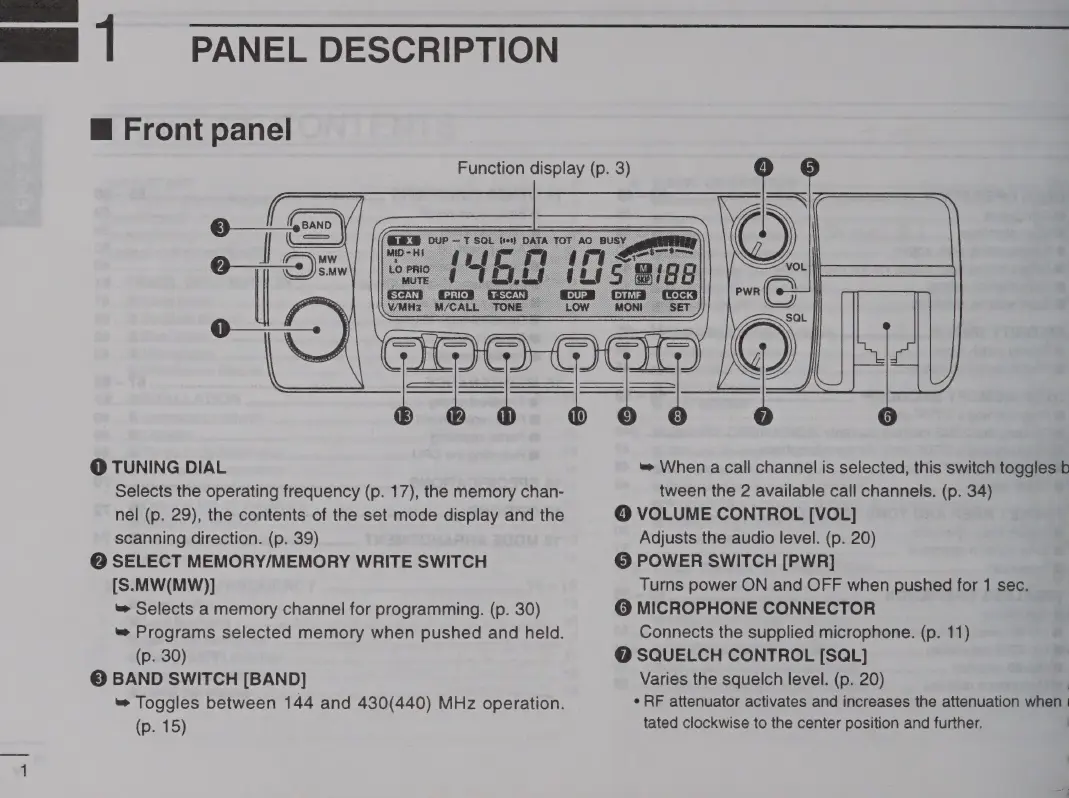

PANEL
DESCRIPTION
@
Front
panel
Function
display
(p.
3)
moe
H
a
sae
@
:
i
Lo
PRIO-
TSCAN
|
WMHz
=
M/CALL
TONE
@
TUNING
DIAL
Selects
the
operating
frequency
(p.
17),
the
memory
chan-
nel
(p.
29),
the
contents
of
the
set
mode
display
and
the
scanning
direction.
(p.
39)
@
SELECT
MEMORY/MEMORY
WRITE
SWITCH
[S.MW(MW)]
»
Selects
a
memory
channel
for
programming.
(p.
30)
“»
Programs
selected
memory
when
pushed
and
held.
(p.
30)
©
BAND
SWITCH
[BAND]
»
Toggles
between
144
and
430(440)
MHz
operation.
(p.
15)
2
pI
466
|
ae
ei68
chen
et
|_DUP
[2
DTMF
{LOCK
|)
MON]
SET
»
When
a
call
channel
is
selected,
this
switch
toggles
b
tween
the
2
available
call
channels.
(p.
34)
@
VOLUME
CONTROL
[VOL]
Adjusts
the
audio
level.
(p.
20)
©
POWER
SWITCH
[PWR]
Turns
power
ON
and
OFF
when
pushed
for
1
sec.
@
MICROPHONE
CONNECTOR
Connects
the
supplied
microphone.
(p.
11)
@
SQUELCH
CONTROL
[SQL]
Varies
the
squelch
level.
(p.
20)
¢
RF
attenuator
activates
and
increases
the
attenuation
when
|
tated
clockwise
to
the
center
position
and
further.
:
en
