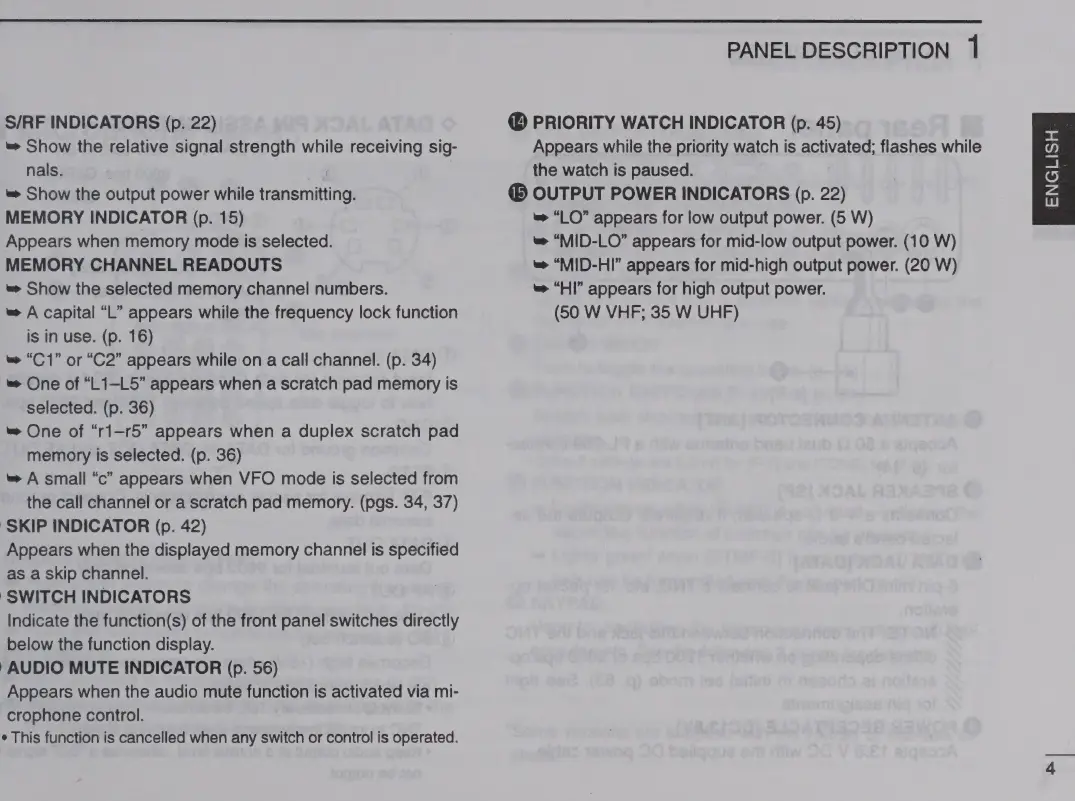

PANEL DESCRIPTION 1
S/RF INDICATORS (p. 22) @ PRIORITY WATCH INDICATOR (p. 45)
> Show the relative signal strength while receiving sig- Appears while the priority watch is activated; flashes while ra
nals. the watch is paused. 3
> Show the output power while transmitting. @® OUTPUT POWER INDICATORS (p. 22) =
MEMORY INDICATOR (p. 15) =» “LO” appears for low output power. (5 W)
Appears when memory mode is selected. » “MID-LO” appears for mid-low output power. (10 W)
MEMORY CHANNEL READOUTS > “MID-HI” appears for mid-high output power. (20 W)
» Show the selected memory channel numbers. > “HI” appears for high output power.
> A capital “L” appears while the frequency lock function (50 W VHF; 35 W UHF)
is in use. (p. 16)
> “C1” or “C2” appears while on a call channel. (p. 34)
=> One of “L1—L5” appears when a scratch pad memory is
selected. (p. 36)
= One of “ri-r5” appears when a duplex scratch pad
memory is selected. (p. 36)
=» A small “c” appears when VFO mode is selected from
the call channel or a scratch pad memory. (pgs. 34, 37)
SKIP INDICATOR (p. 42)
Appears when the displayed memory channel is specified
as a skip channel.
SWITCH INDICATORS
Indicate the function(s) of the front panel switches directly
below the function display.
. AUDIO MUTE INDICATOR (p. 56)
Appears when the audio mute function is activated via mi-
crophone control.
¢ This function is cancelled when any switch or control is operated.
|
