Icom IC-207H Instruction Manual

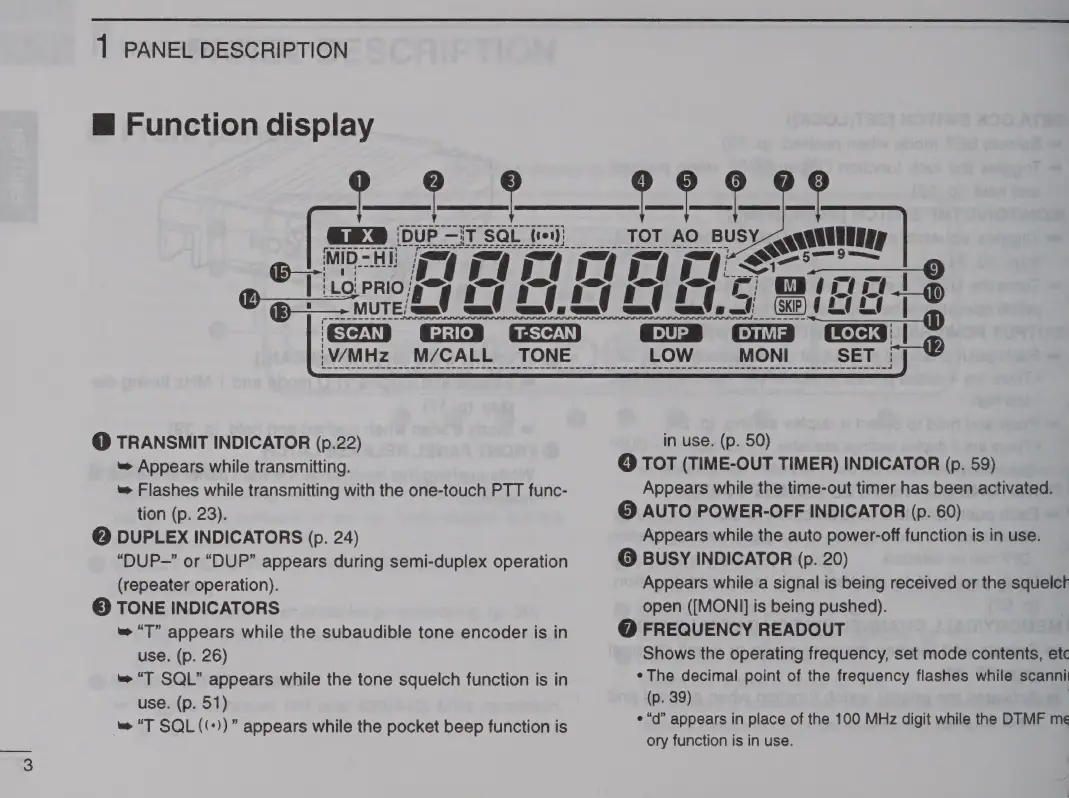

1 PANEL DESCRIPTION
@ Function display
ao
f GO OUP —IT SOL (ron)
15 fh : be 7 uy wn i bes i yt i
06 ET YEE
an Gil a
1W/MHz_ M/CALL TONE.
———
it AQ is =p
Mt ri. Be ; ae Hei 1HE +e
mat Du } cr | .
LOW MONI SET t
@ TRANSMIT INDICATOR (p.22)
» Appears while transmitting.
» Flashes while transmitting with the one-touch PTT func-
tion (p. 23).
@ DUPLEX INDICATORS (p. 24)
“DUP-” or “DUP” appears during semi-duplex operation
(repeater operation).
© TONE INDICATORS
w “T” appears while the subaudible tone encoder is in
use. (p. 26)
=» “T SQL” appears while the tone squelch function is in
use. (p. 51)
> “T SQL ((+))” appears while the pocket beep function is
in use. (p. 50)
@ TOT (TIME-OUT TIMER) INDICATOR (p. 59)
Appears while the time-out timer has been activated.
@ AUTO POWER-OFF INDICATOR (p. 60)
Appears while the auto power-off function is in use.
@ BUSY INDICATOR (p. 20)
Appears while a signal is being received or the squelct
open ({[MONI] is being pushed).
@ FREQUENCY READOUT
Shows the operating frequency, set mode contents, etc
e The decimal point of the frequency flashes while scanni
(p. 39)
e “d” appears in place of the 100 MHz digit while the DITMF me
ory function is in use.
