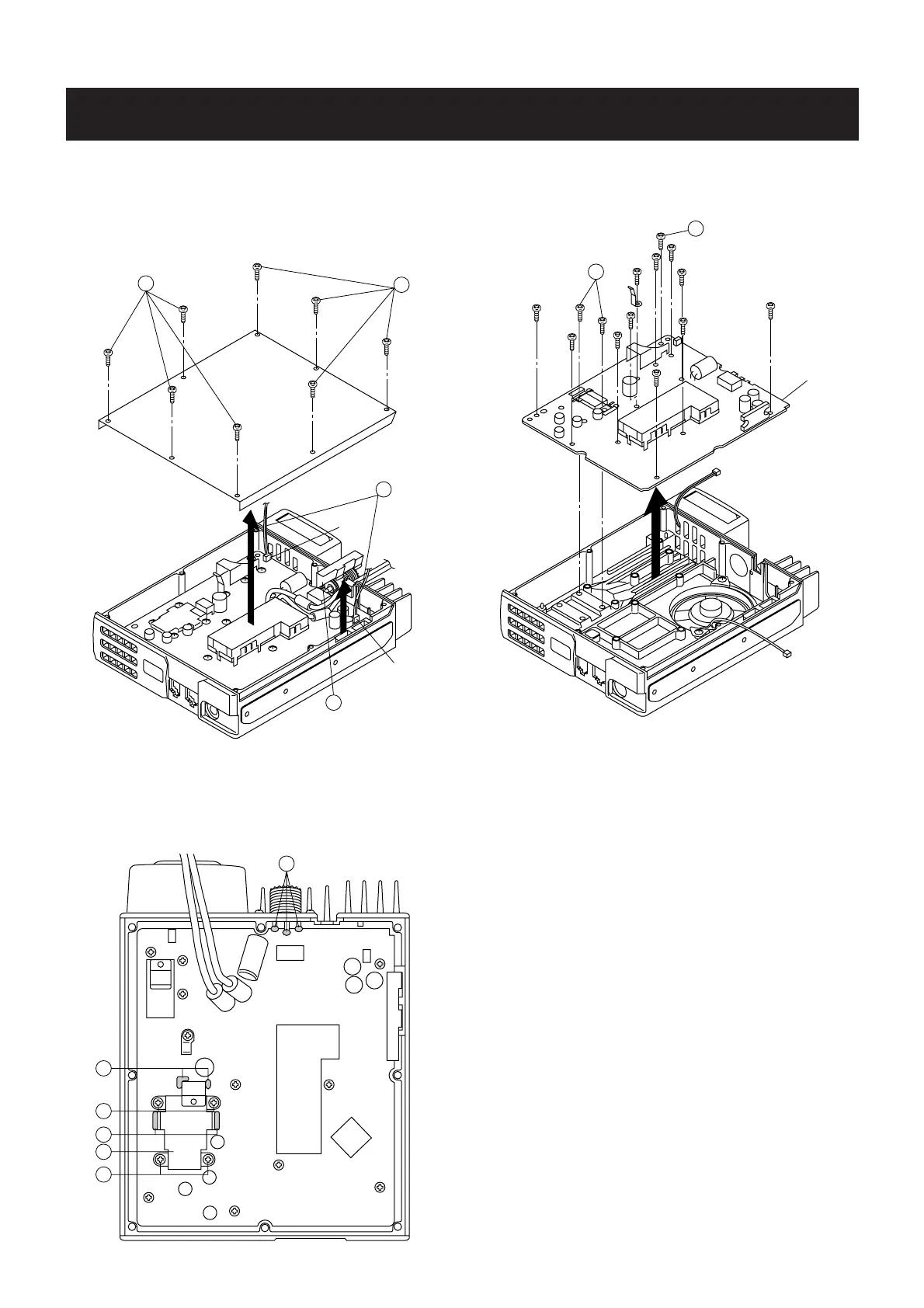

SECTION 3 DISASSEMBLY INSTRUCTIONS
• Removing the MAIN unit
➀
Unscrew 8 screws A, and remove the cover.
➁ Disconnect two cables B from J1 and J2007.
➂ Remove the clip c.
A
A
B
C
J2007
J1
G
F
G
F
H
E
MAIN UNIT
J
I
➃ Unsolder 3 points E.
➄ Unscrew 4 screws F.
➅ Unsolder 4 points G, and remove the cover H.
➆ Unscrew 2 screws I.
➇ Unscrew 12 screws J, and remove MAIN unit.
3 - 1
