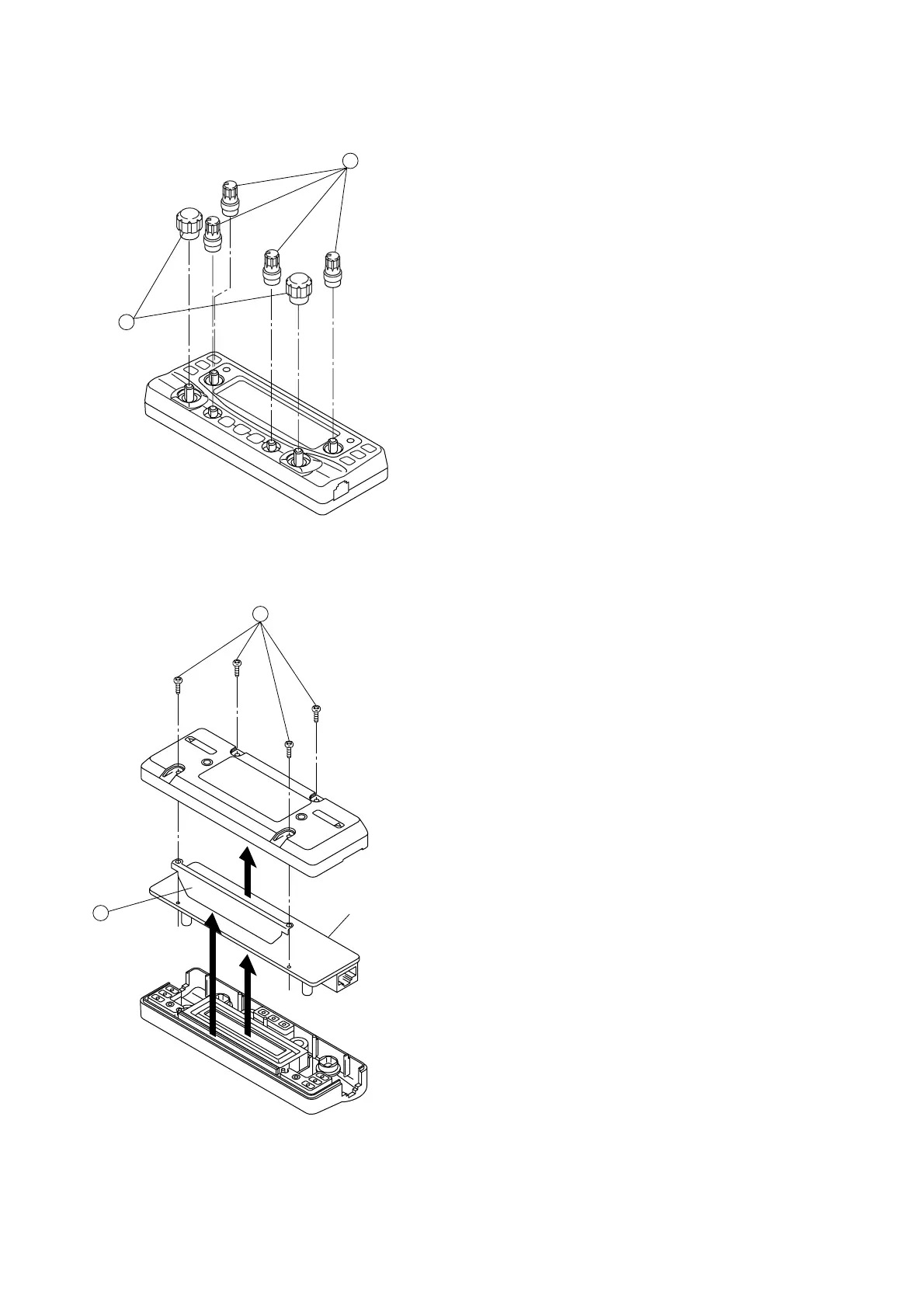

• Removing the CONTROL unit
➀
Remove 6 knobs A.
A
A
➁ Unscrew 4 screws B, and remove the cover.
➂ Remove the plate C, and remove CONTROL unit.
B
C
CONTROL UNIT
3 - 2
