SECTION 3 DISASEMBLY INSTRUCTIONS
3 - 1
A
B
B
MAIN unit
RF unit
E
C
D
F
H
G
•

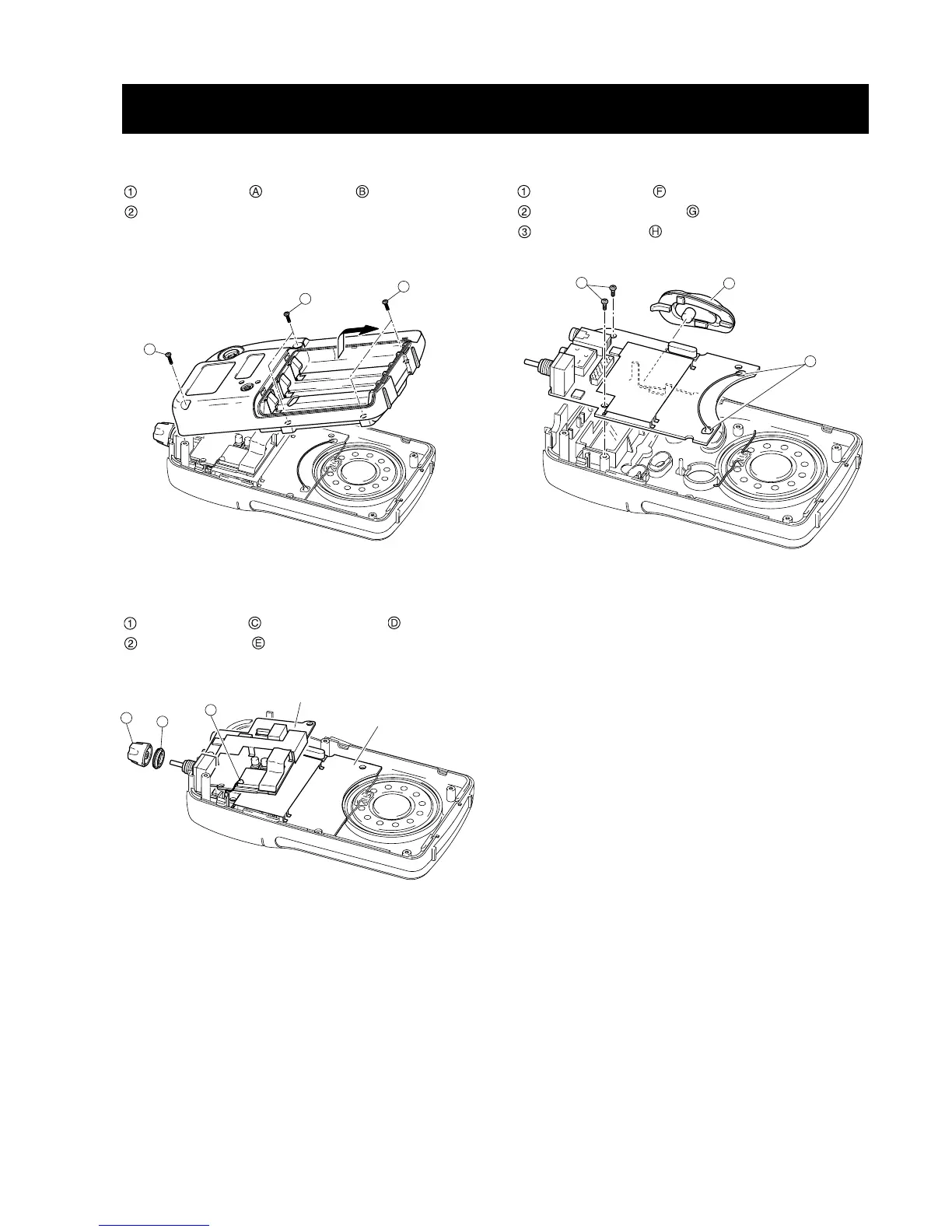

REMOVING THE REAR PANEL
Unscrew 1 screw , and 4 screws .
Remove the rear panel in the direction of the arrow.
•
REMOVING THE RF UNIT
Remove 1 knob, , and unscrew 1 nut, .
Unsolder 1 point, , and then remove the RF unit.
•
REMOVING THE MAIN UNIT
Unscrew 2 screws, .
Remove the PTT rubber, .
Unsolder 2 points, , and remove the MAIN unit.
