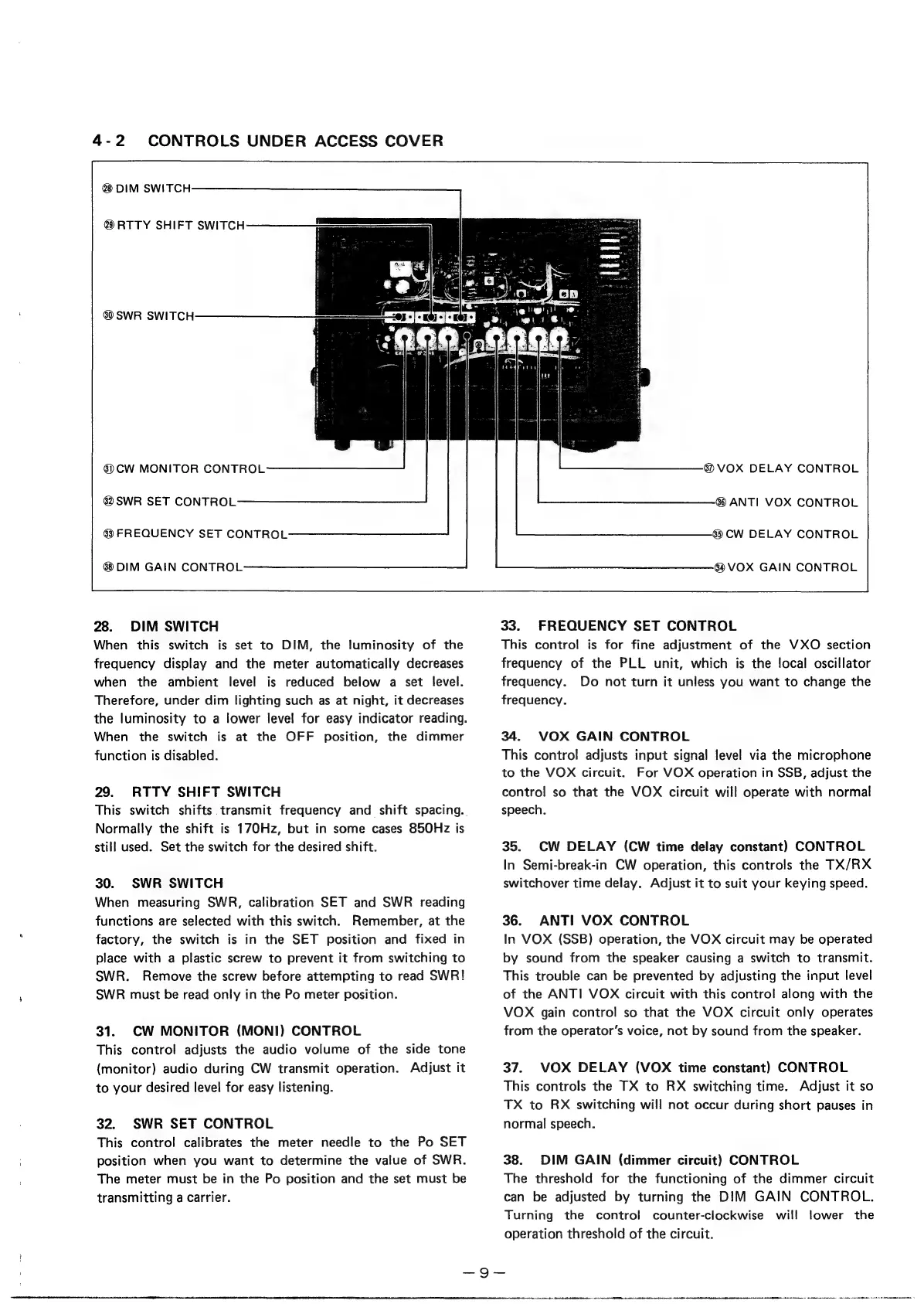

4-2
CONTROLS
UNDER
ACCESS
COVER
@
DIM
SWITCH
@RTTY
SHIFT
SWITCH
@
SWR
SWITCH
6)
CW
MONITOR
CONTROL
2
SWR
SET
CONTROL
@
FREQUENCY
SET
CONTROL
DIM
GAIN
CONTROL
28.
DIM
SWITCH
When
this
switch
is
set
to
DIM,
the
luminosity
of
the
frequency
display
and
the
meter
automatically
decreases
when
the
ambient
level
is
reduced
below
a
set
level.
Therefore,
under
dim
lighting
such
as
at
night,
it
decreases
the
luminosity
to
a
lower
level
for
easy
indicator
reading.
When
the
switch
is
at
the
OFF
position,
the
dimmer
function
is
disabled.
29.
RTTY
SHIFT
SWITCH
This
switch
shifts
transmit
frequency
and
shift
spacing.
Normally
the
shift
is
170Hz,
but
in
some
cases
850Hz
is
still
used.
Set
the
switch
for
the
desired
shift.
30.
SWR
SWITCH
When
measuring
SWR,
calibration
SET
and
SWR
reading
functions
are
selected
with
this
switch.
Remember,
at
the
factory,
the
switch
is
in
the
SET
position
and
fixed
in
place
with
a
plastic
screw
to
prevent
it
from
switching
to
SWR.
Remove
the
screw
before
attempting
to
read
SWR!
SWR
must
be
read
only
in
the
Po
meter
position.
31.
CW
MONITOR
(MONI)
CONTROL
This
control
adjusts
the
audio
volume
of
the
side
tone
(monitor)
audio
during
CW
transmit
operation.
Adjust
it
to
your
desired
level
for
easy
listening.
32.
SWR
SET
CONTROL
This
control
calibrates
the
meter
needle
to
the
Po
SET
position
when
you
want
to
determine
the
value
of
SWR.
The
meter
must
be
in
the
Po
position
and
the
set
must
be
transmitting
a
carrier.
ete
er
7
ee
2
6)
VOX
DELAY
CONTROL
8
ANTI
VOX
CONTROL
6)
CW
DELAY
CONTROL
6)
VOX
GAIN
CONTROL
33.
FREQUENCY
SET
CONTROL
This
control
is
for
fine
adjustment
of
the
VXO
section
frequency
of
the
PLL
unit,
which
is
the
local
oscillator
frequency.
Do
not
turn
it
unless
you
want
to
change
the
frequency.
34.
VOX
GAIN
CONTROL
This
control
adjusts
input
signal
level
via
the
microphone
to
the
VOX
circuit.
For
VOX
operation
in
SSB,
adjust
the
control
so
that
the
VOX
circuit
will
operate
with
normal
speech.
35.
CW
DELAY
(CW
time
delay
constant)
CONTROL
In
Semi-break-in
CW
operation,
this
controls
the
TX/RX
switchover
time
delay.
Adjust
it
to
suit
your
keying
speed.
36.
ANTI
VOX
CONTROL
In
VOX
(SSB)
operation,
the
VOX
circuit
may
be
operated
by
sound
from
the
speaker
causing
a
switch
to
transmit.
This
trouble
can
be
prevented
by
adjusting
the
input
level
of
the
ANTI
VOX
circuit
with
this
contro!
along
with
the
VOX
gain
control
so
that
the
VOX
circuit
only
operates
from
the
operator’s
voice,
not
by
sound
from
the
speaker.
37.
VOX
DELAY
(VOX
time
constant)
CONTROL
This
controls
the
TX
to
RX
switching
time.
Adjust
it
so
TX
to
RX
switching
will
not
occur
during
short
pauses
in
normal
speech.
38.
DIM
GAIN
(dimmer
circuit)
CONTROL
The
threshold
for
the
functioning
of
the
dimmer
circuit
can
be
adjusted
by
turning
the
DIM
GAIN
CONTROL.
Turning
the
control
counter-clockwise
will
lower
the
operation
threshold
of
the
circuit.
—-9Q—
