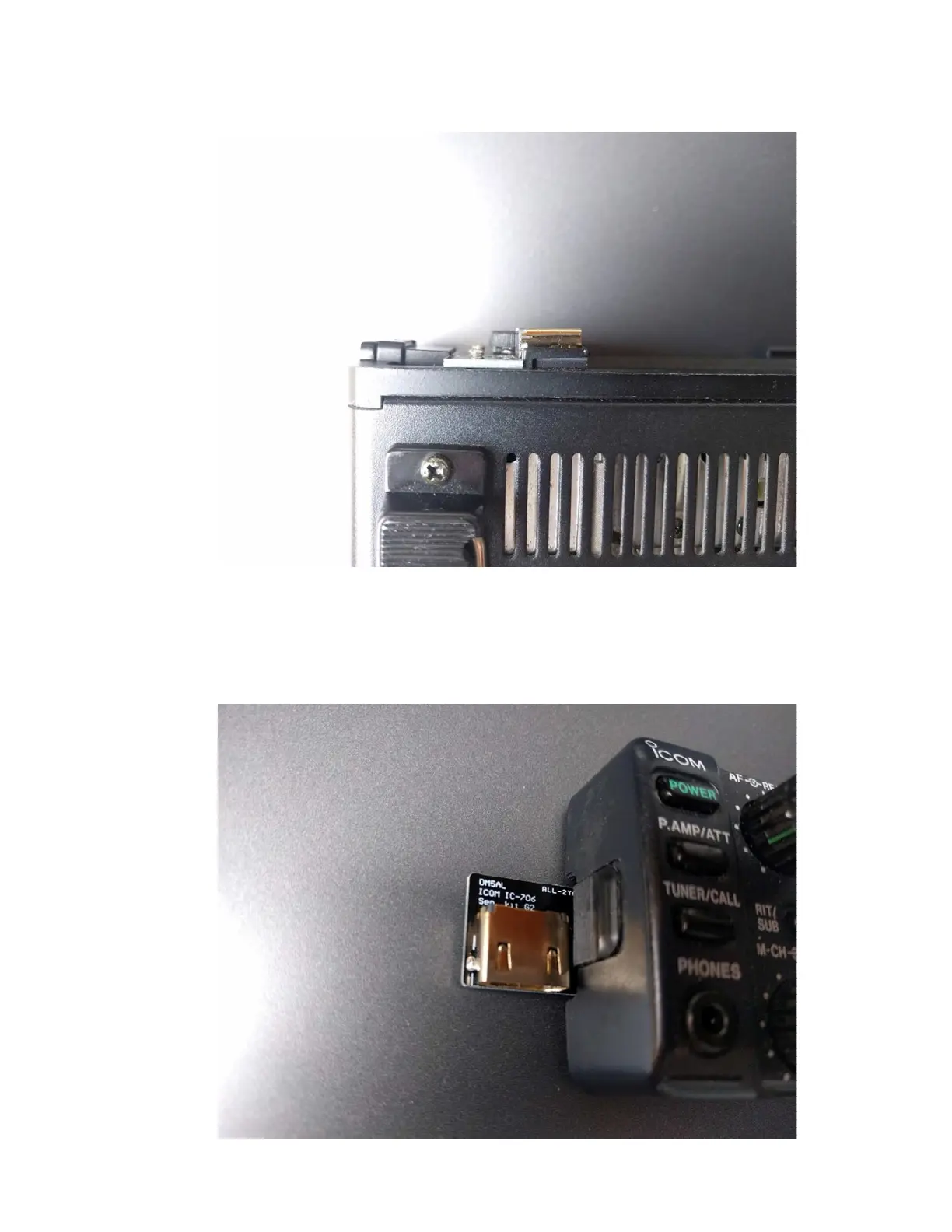

4. Check that pogo pins points exactly to the edge connector of the base unit adapter:
5. Insert a head unit adapter until it is fixed with original locker:
