KB2LJJ Radio Mods Database

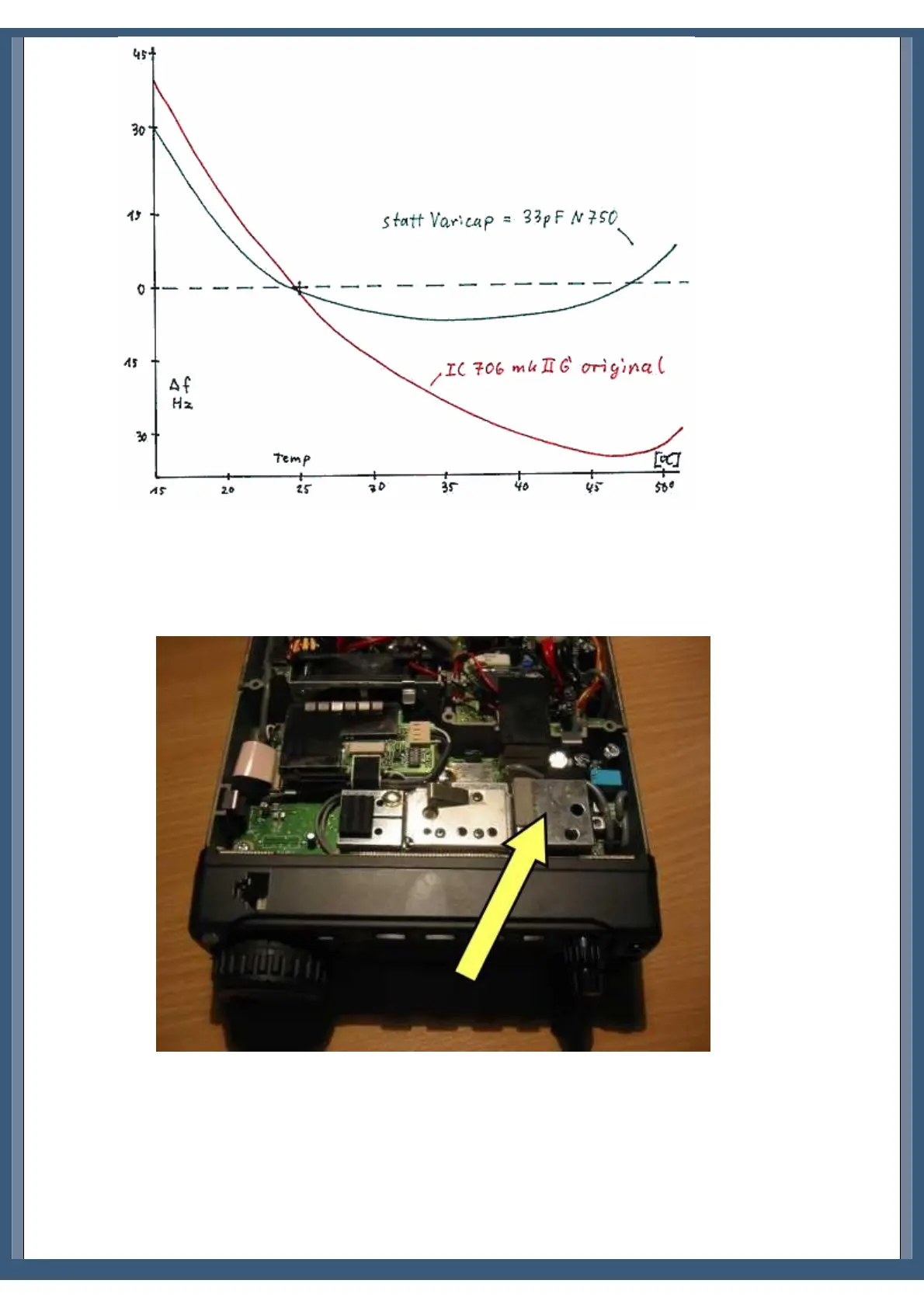

Picture 1: frequency drift vs. temperature

Just a few steps to improve the frequency stability of your IC-706mkIIG:

1. Remove the lid on the back, then remove the little lid of the XO (as shown in picture 2).

Picture 2: open the lid of the XO

2. Locate the little varicap-diode right next to the L601 (picture 3). Remove this diode.

http://www.kb2ljj.com/data/icom/ic-706-MKII.htm (9 di 30)23/08/2009 23.05.07
