Icom IC-7100 Specification

Intuitive Touch Screen,
Quick Response, Multi-band Radio
Fingertip Controls
Angled Display
75.9 m
75.9 m
m
m
; 2.99 in
;2.99in
48.6 mm;
1.91 in
SPEAKER
Controller Rear Panel View
PHONES/SP
ELEC-KEY
MIC
MAIN UNIT
Intuitive Touch Screen Interface
The innovative touch screen interface provides quick and smooth
operation for setting and editing various functions and memories.
Controller
Main unit
Main unit

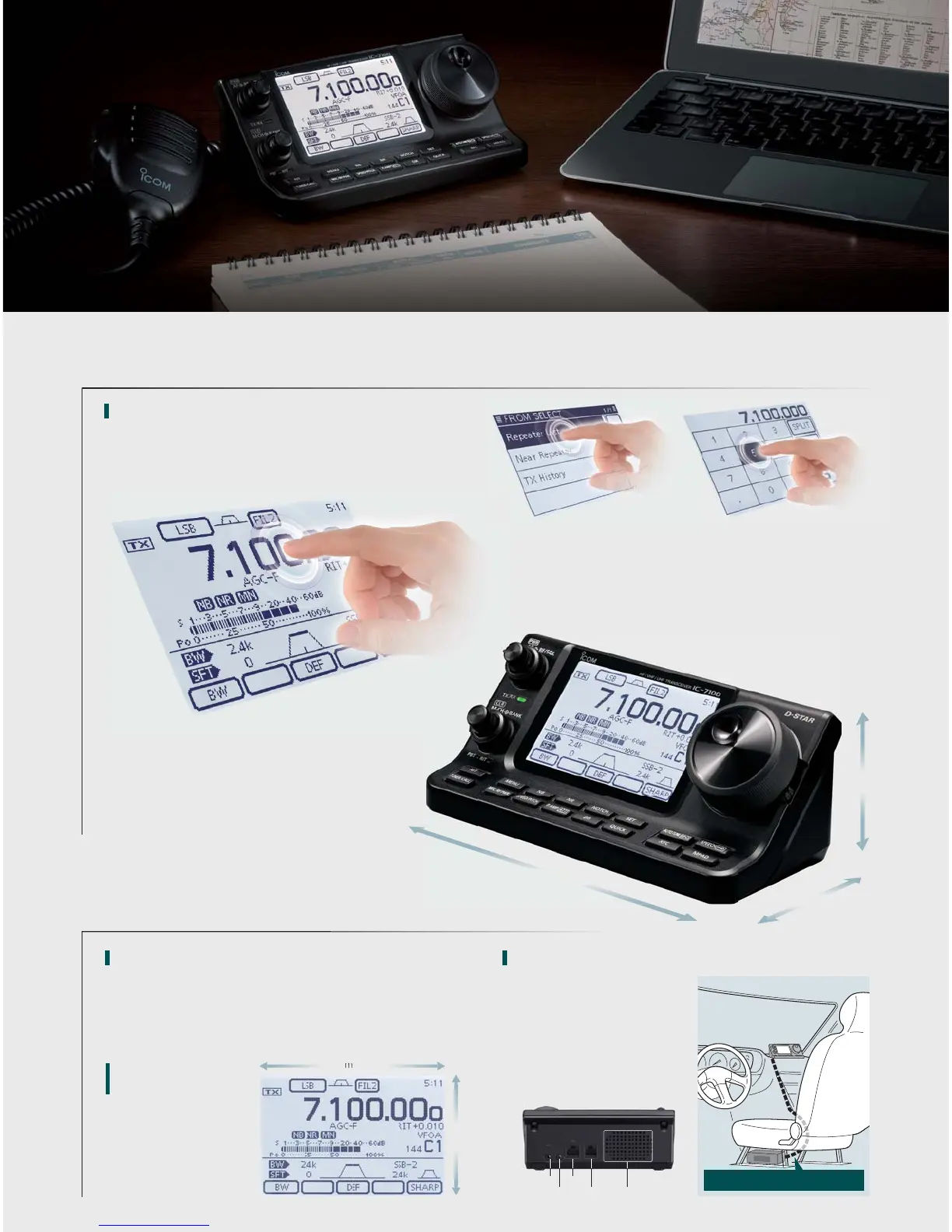

Touch Screen Control Portal
The radio control head features a large, multi-function, "touch screen"'
dot-matrix LCD display that is positioned for easy view and operation.
The controller is compact in size, making it ideal for limited vehicle or
desktop space.
For example, if you want to change the operating
band, tap the frequency on the display. The band keys
will be shown to select the operating band. Touching
the multi-function meter indicator for 1 second will
quickly change the transmit meter functions.
One Touch Selection
Resistive
Touch Screen
The 48.6×75.9 mm; 1.91×2.99 in
large resistive touch screen
display can be operated while
wearing gloves.
Controller Mounted Speaker and Jacks
The unique remote head design is
perfect for providing loud, clear
audio as well as jacks for an external
speaker/headphones as well as a key
and microphone.
Straight Forward Operation
Just tap the mode, filter, function
etc, you need to change. The touch
screen responds naturally, changing
your settings.
Software Keypad
Entering frequency, callsign or editing
memory channels has never been
this easy. The software keypad on the
touch screen allows you to input
alphanumeric characters incredibly
quickly.
H
:
64 mm;
2.52 in
D
:
78.5 mm; 3.09 in
W
:
165 mm; 6.5 in
Separation cable
(
Up to 5m; 16ft with option OPC-2254
)

Icom IC-7100 Specifications

General

Supply	13.8 V DC ±15%
Voltage	13.8 V DC
Operating Temperature	-10°C to +60°C
Frequency Coverage	0.030-199.999 MHz, 400-470 MHz
Modes	SSB, CW, AM, FM, DV
Output Power	HF/50MHz: 100W, 144MHz: 50W, 430MHz: 35W
Receiver Type	Superheterodyne
Antenna Connector	SO-239 (HF/50MHz/144MHz), N-type (430MHz)
Weight	Main unit: 2.3 kg
Type	Base/Mobile
Frequency Range TX	1.8–54 MHz, 144–148 MHz, 430–450 MHz
Frequency Range RX	0.030–199.999 MHz, 400–470 MHz
Memories	505
Current Consumption	TX: 22 A, RX: 1.2 A
