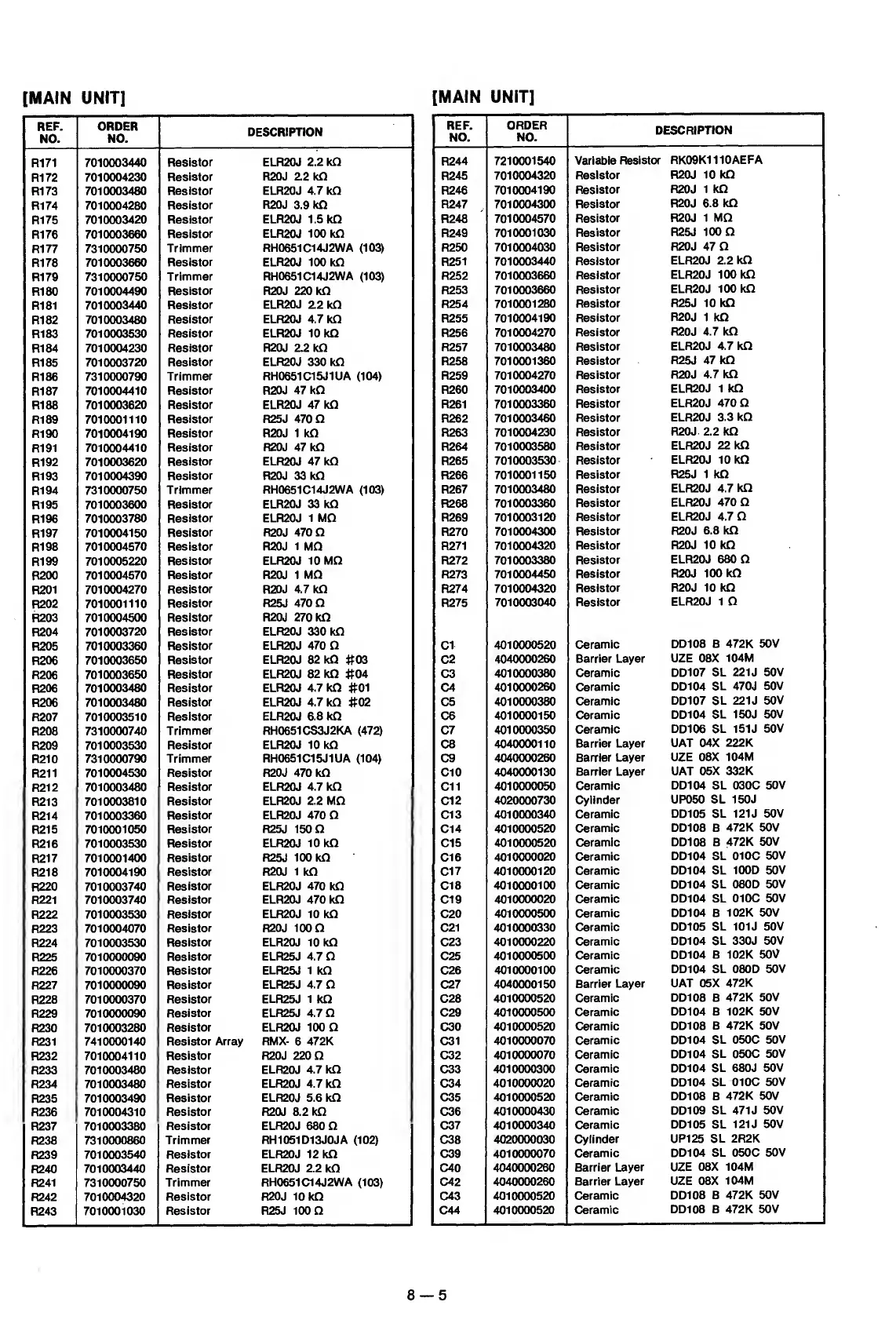

Icom IC-725 - Page 46

[MAIN
UNIT]
[MAIN
UNIT]
REF.
NO.
ORDER
NO.
DESCRIPTION
R244
7210001540
Variable
Resistor
RK09K1110AEFA
R245
7010004320
Resistor R20J
10 kQ
R246 7010004190
Resistor
R20J 1 kQ
R247
7010004300
Resistor
R20J
6.8 kQ
R248
7010004570
Resistor
R20J
1 MQ
R249
7010001030
Resistor
R25J
100 Q
R250
7010004030
Resistor
R20J 47
Q
R251
7010003440
Resistor
ELR20J 2.2
kQ
R252
7010003660
Resistor
ELR20J 100
kQ
R253
7010003660
Resistor
ELR20J
100 kQ
R254
7010001280
Resistor
R25J 10 kQ
R25S
7010004190
Resistor
R20J 1 kQ
R256
7010004270
Resistor
R20J 4.7 kQ
R257
7010003480 Resistor
ELR20J 4.7 kQ
R258
7010001360
Resistor
R25J 47 kQ
R259
7010004270
Resistor
R20J
4.7 kQ
R260
7010003400 Resistor
ELR20J 1 kQ
R261
7010003360
Resistor
ELR20J
470
Q
R262
7010003460
Resistor
ELR20J
3.3 kQ
R263
7010004230
Resistor
R20J 2.2kQ
R264
7010003580
Resistor
ELR20J
22 kQ
R265
7010003530
Resistor
ELR20J 10 kQ
R266
7010001150
Resistor
R25J 1 kQ
R267
7010003480
Resistor
ELR20J
4.7 kQ
R268
7010003360
Resistor
ELR20J
470 Q
R269
7010003120
Resistor
ELR20J 4.7 Q
R270
7010004300
Resistor
R20J 6.8 kQ
R271
7010004320
Resistor
R20J
10 kQ
R272
7010003380
Resistor
ELR20J
680 Q
R273
7010004450
Resistor
R20J 100 kQ
R274
7010004320
Resistor
R20J
10 kQ
R275
7010003040
Resistor
ELR20J
1
Q
C1
4010000520
Ceramic
DD108 B
472K 50V
C2
4040000260
Barrier Layer
UZE
08X 104M
C3
4010000380
Ceramic DD107
SL 221J
50V
C4
4010000260
Ceramic
DD104
SL
470J
50V
C5
4010000380
Ceramic
DD107 SL 221J
50V
C6
4010000150
Ceramic
DD104
SL 150J
50V
C7
4010000350
Ceramic
DD106 SL 151J
50V
C8
4040000110
Barrier Layer
UAT 04X
222K
C9
4040000260
Barrier Layer
UZE 08X
104M
CIO
4040000130
Barrier
Layer UAT
05X 332K
C11
4010000050
Ceramic
DD104 SL 030C
50V
C12
4020000730
Cylinder
UP050 SL
150J
C13
4010000340
Ceramic
DD105 SL 121J
50V
C14
4010000520
Ceramic
DD108 B
472K 50V
CIS
4010000520
Ceramic
DD108 B
472K
50V
C16
4010000020
Ceramic
DD104 SL 010C
50V
C17
4010000120
Ceramic
DD104 SL
100D
50V
CIS
4010000100 Ceramic
OD104
SL 080D
50V
C19
4010000020
Ceramic
DD104 SL
010C 50V
C20
4010000500
Ceramic
DD104 B
102K 50V
C21
4010000330
Ceramic
DD105
SL 101J
50V
C23
4010000220 Ceramic
DD104 SL 330J
50V
C25
4010000500
Ceramic
OD104
B 102K
50V
C26
4010000100
Ceramic
DD104 SL 080D
50V
C27
4040000150
Barrier Layer
UAT 05X
472K
C28
4010000520 Ceramic
DD108 B
472K
50V
C29
4010000500
Ceramic
DD104 B 102K
50V
C30
4010000520
Ceramic
DD108
B 472K 50V
C31
4010000070
Ceramic DD104
SL 050C
50V
C32
4010000070
Ceramic
DD104
SL 050C
50V
C33
4010000300
Ceramic
DD104
SL 680J
50V
C34
4010000020 Ceramic
DD104
SL 010C
50V
C35
4010000520
Ceramic
DD108 B
472K 50V
C36
4010000430
Ceramic DD109
SL 471 J
50V
C37
4010000340
Ceramic
DD105 SL
121J 50V
C38
4020000030
Cylinder
UP125 SL 2R2K
C39
4010000070
Ceramic
DD104 SL 050C
50V
C40
4040000260
Barrier Layer
UZE 08X 104M
C42
4040000260
Barrier
Layer UZE 08X
104M
C43
4010000520
Ceramic
DD108
B 472K
50V
C44
4010000520
Ceramic
DD108 B 472K
50V
REF.
NO.
ORDER
NO.
DESCRIPTION
R171
7010003440
Resistor ELR20J
2.2 kQ
R172
7010004230
Resistor R20J
2.2 kQ
R173
7010003480
Resistor ELR20J
4.7
kQ
R174
7010004260
Resistor R20J 3.9 kQ
R175
7010003420
Resistor ELR20J 1.5 kQ
R176
7010003660
Resistor ELR20J 100 kQ
R177
7310000750
Trimmer
RH0651C14J2WA
(103)
R178
7010003660
Resistor ELR20J
100
kQ
R179
7310000750
Trimmer
RH0651C14J2WA
(103)
R180
7010004490
Resistor R20J 220
kQ
R181
7010003440
Resistor ELR20J 2.2 kQ
R182
7010003480
Resistor ELR20I
4.7 kQ
R183
7010003530
Resistor ELR20J 10 kQ
R184
7010004230
Resistor R20J 2.2 kQ
R185
7010003720
Resistor
ELR20J
330
kQ
R186
7310000790
Trimmer RH0651C15J1UA
(104)
R187
7010004410
Resistor
R20J 47 kQ
R188
7010003620
Resistor ELR20J 47 kQ
R189
7010001110
Resistor R2SJ 470 Q
R190
7010004190
Resistor R20J 1 kQ
R191
7010004410
Resistor R20J 47 kQ
R192
7010003620
Resistor ELR20J 47
kQ
R193 7010004390
Resistor R20J 33
kQ
R194
7310000750
Trimmer RH0651C14J2WA
(103)
R195
7010003600
Resistor ELR20J 33 kQ
R196
7010003780
Resistor ELR20J
1 MQ
R197
7010004150
Resistor
R20J 470 Q
R198
7010004570
Resistor R20J 1
MQ
R199
7010005220
Resistor
ELR20J 10 MQ
R200
7010004570
Resistor R20J 1 MQ
R201
7010004270
Resistor R20J
4.7 kQ
R202
7010001110
Resistor R25J 470 Q
R203
7010004500 Resistor
R20J 270
kQ
R204
7010003720
Resistor ELR20J 330 kQ
R205
7010003360
Resistor ELR20J 470 Q
R206
7010003650
Resistor ELR20J 82 kQ
#03
R206
7010003650
Resistor
ELR20J
82
kQ
#04
R206
7010003480
Resistor
ELR20J 4.7 kQ
#01
R206
7010003480
Resistor
ELR20J 4.7 kQ
#02
R207
7010003510 Resistor
ELR20J 6.8 kQ
R208
7310000740
Trimmer RH0651CS3J2KA
(472)
R209
7010003530
Resistor ELR20J 10
kQ
R210
7310000790
Trimmer RH0651C15J1UA
(104)
R211
7010004530
Resistor R20J
470 kQ
R212
7010003480
Resistor ELR20J 4.7 kQ
R213
7010003810
Resistor ELR20J
2.2
MQ
R214
7010003360
Resistor ELR20J
470
Q
R215
7010001050
Resistor R25J 150 Q
R216
7010003530
Resistor ELR20J 10 kQ
R217
7010001400
Resistor R25J 100 kQ
R218
7010004190
Resistor R20J
1
kQ
R220
7010003740
Resistor ELR20J
470
kQ
R221 7010003740
Resistor ELR20J 470 kQ
R222
7010003530
Resistor ELR20J 10 kQ
R223
7010004070 Resistor R20J
100
Q
R224
7010003530
Resistor ELR20J 10 kQ
R225
7010000090
Resistor
ELR25J 4.7
Q
R226
7010000370 Resistor
ELR25J 1
kQ
R227
7010000090
Resistor ELR25J
4.7
Q
R228
7010000370
Resistor
ELR25J 1
kQ
R229
7010000090
Resistor ELR25J 4.7 Q
R230
7010003280
Resistor ELR20J 100 Q
R231 7410000140
Resistor Array RMX-
6
472K
R232
7010004110
Resistor R20J 220 Q
R233
7010003480 Resistor
ELR20J 4.7 kQ
R234
7010003480
Resistor ELR20J 4.7 kQ
R235
7010003490
Resistor ELR20J 5.6 kQ
R236 7010004310
Resistor R20J 8.2 kQ
R237
7010003380 Resistor
ELR20J
680 Q
R238
7310000860
Trimmer RH1051D13J0JA
(102)
R239
7010003540
Resistor ELR20J 12
kQ
R240
7010003440
Resistor
ELR20J 2.2 kQ
R241
7310000750 Trimmer
RH0651C14J2WA
(103)
R242
7010004320
Resistor
R20J
10 kQ
R243
7010001030
Resistor R25J 100 Q
8
—
5
