Icom IC-7400 Service Manual

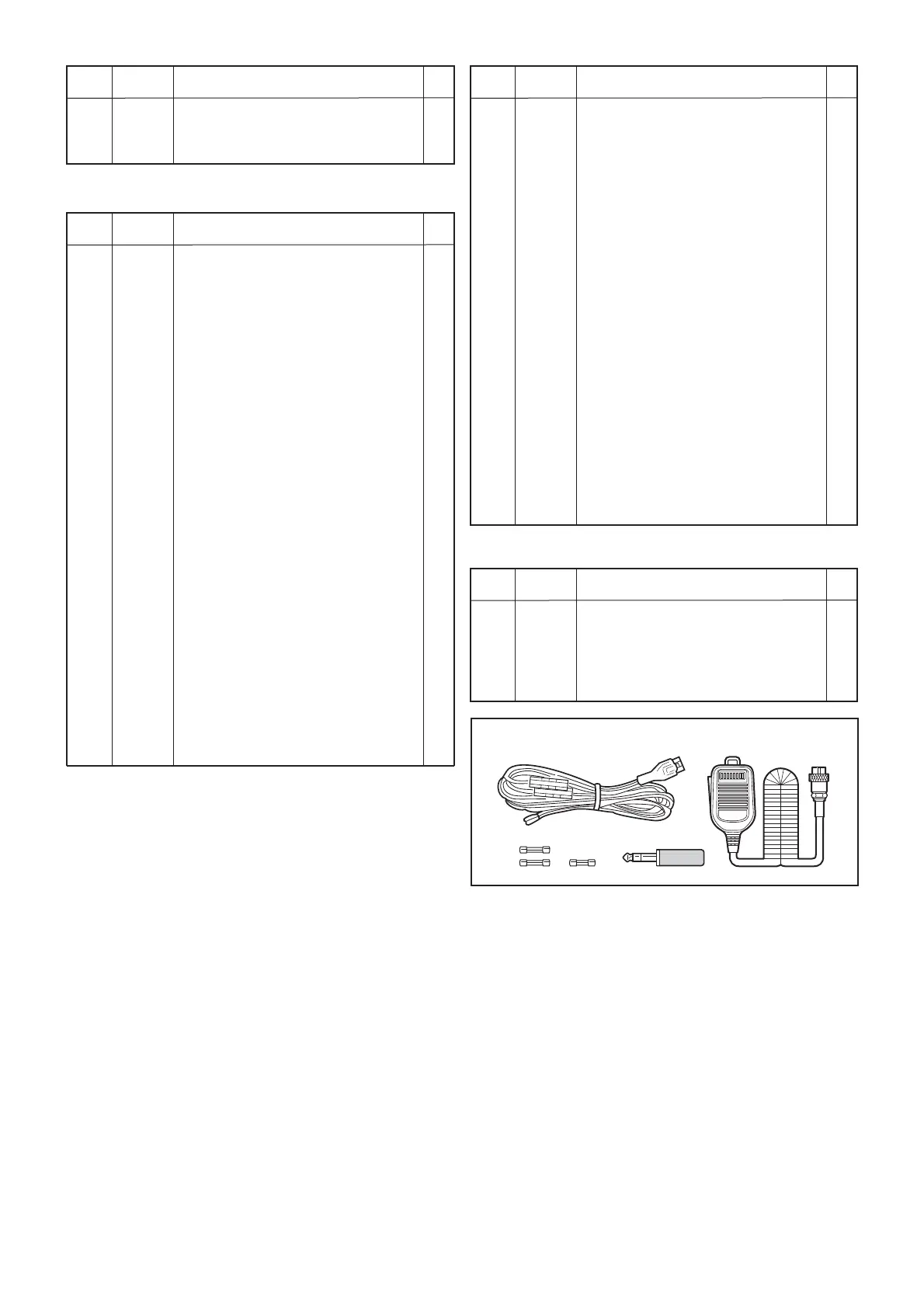

7 - 6
[PA UNIT]
REF ORDER
DESCRIPTION QTY.
NO. NO.
MP3 8930047110 RUBBER SHEET (AP) 1
MP4 8930047120 RUBBER SHEET (AQ) 1
MP7 8930001180 EARTH PLATE (FX-22) 1
MP8 8860001450 2178 RUG 2
MP201 8860001450 2178 RUG 2
[TUNER UNIT]
REF ORDER
DESCRIPTION QTY.
NO. NO.
RL1* 6330001610 NY-12W-K-IE 1
RL2* 6330001610 NY-12W-K-IE 1
RL3* 6330001610 NY-12W-K-IE 1
RL4* 6330001610 NY-12W-K-IE 1
RL5* 6330001520 VE-12HM-K 1
RL6* 6330001520 VE-12HM-K 1
RL7* 6330001520 VE-12HM-K 1
RL8* 6330001520 VE-12HM-K 1
RL9* 6330001520 VE-12HM-K 1
RL10* 6330001610 NY-12W-K-IE 1
RL11* 6330001610 NY-12W-K-IE 1
RL12* 6330001610 NY-12W-K-IE 1
RL13* 6330001610 NY-12W-K-IE 1
RL14* 6330001610 NY-12W-K-IE 1
RL15* 6330001610 NY-12W-K-IE 1
J3 6510007900 TBP-P01X-A1 1
J4* 6510007900 TBP-P01X-A1 1
J5* 6510022591 22FMN-BMTTR-A-TBT (LF) (SN) 1
P3 6510003240 TMP-P01X-A1 1
P4 6510003240 TMP-P01X-A1 1
MF1 2710000800 MP24ZA 1
MF2 2710000800 MP24ZA 1
WS1 8970022710 SX1876 1.5D (2)/TU (Incl. J3, P3) 1
W1 9018760110 62/99/190/C24/C31 1
W2 9086700300 WIRE 8 1
W3 9018760110 62/99/190/C24/C31 1
W4 9086700300 WIRE 8 1
W5 8900015420 OPC-1630 1
W6 8900015420 OPC-1630 1
MP1 8930041091 1876 A-ANGLE-1 1
MP2 8810008661 SCREW BT B0 3X8 NI-ZC3 (BT) 1
MP3 8810009061 SCREW M3X6 ZK3 4
MP4 8930041111 1876 B-ANGLE-1 1
MP5 8810009061 SCREW M3X6 ZK3 2
MP6 8820000881 1528 SCREW-1 4
MP7 8930030112 1414 PLATE-2 2
MP8 8950003200 UJ6-5 (UNIVERSAL COUPLINGS) 2
MP9 8930051580 2178 TUNER PLATE 1
[CTRL UNIT]
REF ORDER
DESCRIPTION QTY.
NO. NO.
RL1* 6330001460 FTR-F1 CA012V 1
RL2* 6330001460 FTR-F1 CA012V 1
RL3* 6330001460 FTR-F1 CA012V 1
RL4* 6330000470 AE5343 (NR-HD 12V) 1
J1* 6510007020 TMP-J01X-V6 1
J2 6510007900 TBP-P01X-A1 1
J3* 6510007020 TMP-J01X-V6 1
J4* 6510007020 TMP-J01X-V6 1
J7* 6510022591 22FMN-BMTTR-A-TBT (LF) (SN) 1
J8* 6510022591 22FMN-BMTTR-A-TBT (LF) (SN) 1
J10* 6510003411 B05B-EH-S (LF) (SN) 1
J11* 6510003411 B05B-EH-S (LF) (SN) 1
J13 6510009870 PD054-02M 1
J14* 6510018961 B2B-PH-SM4-TB (LF) (SN) 1
P2 6510003240 TMP-P01X-A1 1
P3 6510018980 PHR-2 1
WS1 8600036850 SX2494 P03*J13CT (Incl. J13, P3, W13, 14) 1
WS2 8970023961 SX2494 1.5DA (1)/CT
(Incl. J2, P2, W51, 52, EP2, MP2) 1
W3 7120000490 ERD25T0 1
W11 7120000490 ERD25T0 1
W12 7120000490 ERD25T0 1
W13 9020720140 51/99/530/B11A/D33A 1
W14 9011130780 WIRE 00 A A 1
W51 9009130167 62/99/420/C24/C31 1
W52 9086700300 WIRE 8 1
EP2 6910000630 FSOH070RN 1
MP1 8510014440 2494 SHIELD CASE 1
MP2 8950000180 CABLE TIE -80 2
MP4 8510005521 VCOSHIELD PLATE (A)-1 (SX-644) 1
[ACCESSORY]
REF ORDER
DESCRIPTION QTY.
NO. NO.
P1 5610000410 AP-319 1
MC1 (Optional) HM-36-1 1
F1 5210000090 FGB 30A 2
F2 5210000061 FGB 5A PBF 1
W1 8900006490 OPC-025D 1
W1
MC1
F1
F2
P1

Icom IC-7400 Specifications

General

Frequency Range TX	1.8-54 MHz
Frequency Range RX	0.03-60 MHz
Modes	SSB, CW, RTTY, AM, FM
Output Power	100W (HF/50MHz), 50W (144MHz)
Receiver Type	Triple conversion superheterodyne
Antenna Connector	SO-239
IF Rejection	More than 70 dB
Supply Voltage	13.8 V DC ±15%
Current Drain RX	1.5 A
Image Rejection	More than 70 dB
Audio Output Power	2 W
Current Drain TX	20 A
Sensitivity	0.13 μV (SSB/CW)
Selectivity	SSB: 2.4 kHz
