Icom IC-A210E - Page 212

4 - 6
(TOP VIEW)
(TOP VIEW)
• Receive
adjustments

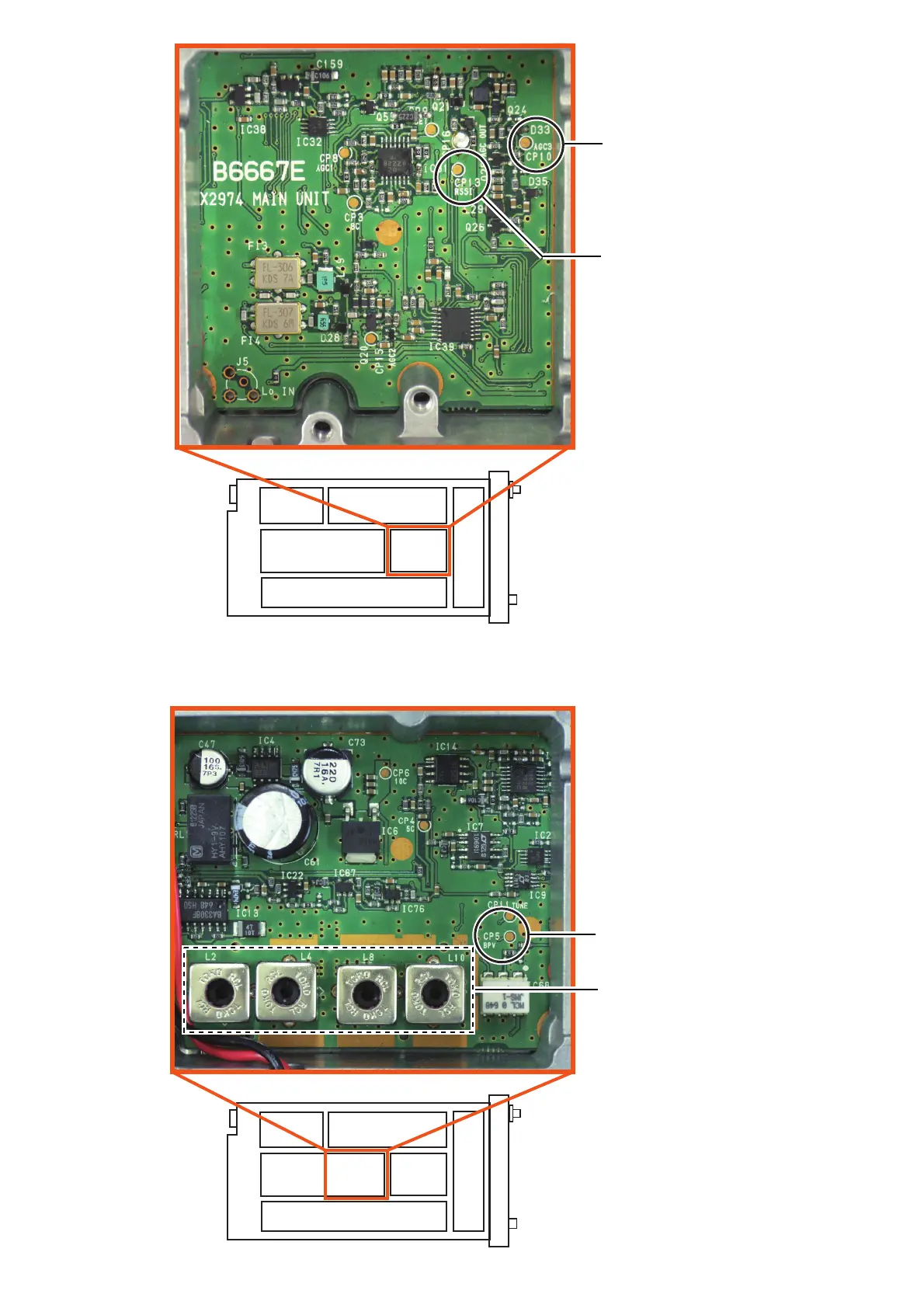

Tuning voltage check point
CP5
RX BPF adjust points
L2, L4, L8 and L10
RX BPF (AM) check point
CP10
RX BPF (FM) check point
CP13
