The underlined parts have been updated from the addendum of the previous version, or from the original page.
(Amended page)
July 2019
*: Refer to “BOARD LAYOUTS” for the location.
Screw abbreviations A, B0, BT: Self-tapping PH: Pan head BS: Brass NI: Nickel ZU: Zinc SUS: Stainless
6-3g

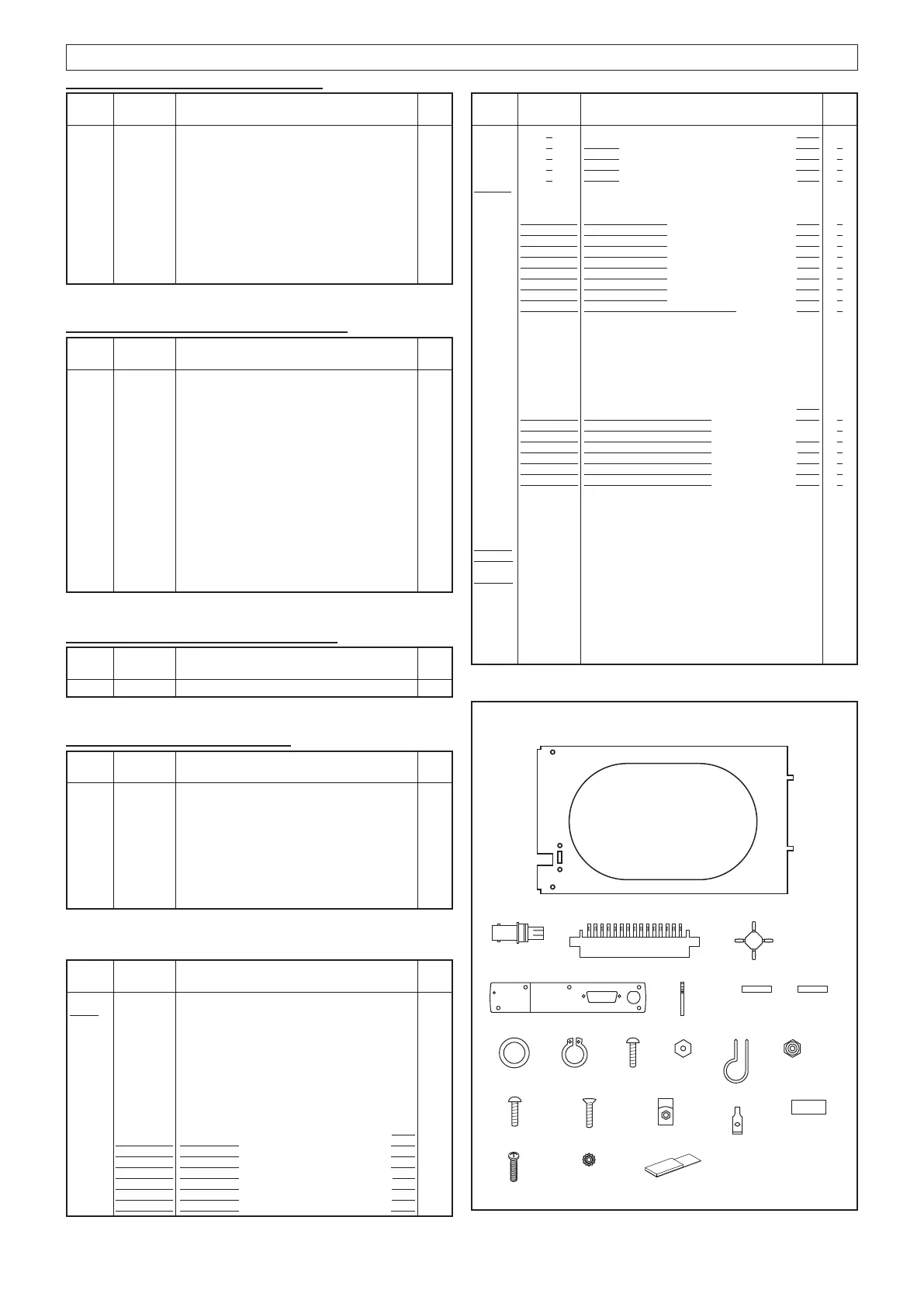

[ACCESSORIES]
REF
NO.
PART
NO.
DESCRIPTION QTY.
†
Sold as an option.
MP8001
J8002
MP8011 ×2
J8001
MP8005
MP8016
MP8006
MP8009
MP8010MP8008
MP8007
MP8013 ×6MP8012 ×6
MP8002 MP8003
MP8014 ×4
EP8002
EP8003 ×25
MP8018 ×2 MP8019
P8002
MP8017 ×2
[FRONT-B UNIT] (for only IC-A220)
REF
NO.
PART
NO.
DESCRIPTION QTY.
DS11 5060000022 UEL127B (ELW2702AA) 1
S1 2250000580 EC11EAB24C 1
S2* 2230001480 LS37J2-T 1
S3* 2230001480 LS37J2-T 1
S4* 2230001480 LS37J2-T 1
S5* 2230001480 LS37J2-T 1
S6* 2230001480 LS37J2-T 1
MP1 8930072850 SPONGE (JM) 1
MP2 8930072850 SPONGE (JM) 1
MP3 8930056800 2518 EARTH SPRING 1
[D-CONNECT UNIT] (for only IC-A220)
REF
NO.
PART
NO.
DESCRIPTION QTY.
J1 6510014210 BNC-BJ 1
J3 6510021071 S2P-VH (LF) (SN) 1
J6 6510030790 SJ070010 (TMP-S01X-C1) 1
J7 6510031470 HSJ1650-010720 1
J8 6510030820 1210-0V4-25P-AAE 1
F1* 5210001070 0451008.MRL 1
W1 7030014290 RJ25S0OHM 1
MP1 8510018590 2974 ANT CASE 1
MP2 8930073510 2974 K-ANT PLATE 1
MP3 8830003120 95119-90070 (HEXNUT ) 1
MP4 8110010810 2974 D-COVER 1
MP5 8930059480 SPONGE (GZ) 1
MP6 8810006810 PH M2.6×6 SUS 2
MP7 8930053940 RUBBER SHEET (AV) 1
[VOLUME-B UNIT] (for only IC-A220)
REF
NO.
PART
NO.
DESCRIPTION QTY.
R1 7210003270 TP76N00NA-26F-10KB-2974 1
[PA-B UNIT] (for only IC-A220)
[ACCESSORIES]
REF
NO.
PART
NO.
DESCRIPTION QTY.
REF
NO.
PART
NO.
DESCRIPTION QTY.
J500* 6510011591 B2P-VH (LF) (SN) 1
J501* 6510030790 SJ070010 (TMP-S01X-C1) 1
J503* 6510030790 SJ070010 (TMP-S01X-C1) 1
J504* 6510030790 SJ070010 (TMP-S01X-C1) 1
MP1 8930056800 2518 EARTH SPRING 1
MP2 8930068080 THERMAL SHEET (AU) TC400HS-1.4 (12×34) 1
MP3 8930050152 THERMAL SHEET (K)-2 TC-200HS-1.4 (5×2) 1
MP4 8930073540 2974 PA PLATE 1
MP5 8510012910 2270 RUG 1
EP8002 − M B -113
†
[#01] 1
− MB -113
†
[#02] 1
− MB -113
†
[#03] 1
− MB -113
†
[#05] 1
− MB -113
†
[#11] 1
EP8003 6910025160 205090-1 Only [#41] 25
MP8001 8010021051 2974 BRACKET-1 [#01] 1
8010021051 2974 BRACKET-1 [#02] 1
8010021051 2974 BRACKET-1 [#03] 1
8010021051 2974 BRACKET-1 [#05] 1
8010021051 2974 BRACKET-1 [#11] 1
8010021051 2974 BRACKET-1 [#21] 1
8010021051 2974 BRACKET-1 [#23] 1
8010021051 2974 BRACKET-1 [#25] 1
8010023361 2974 A-BRACKET ASSEMBLY-1 [# 41] 1
MP8002 8310023870 867 O.P LABEL 1
MP8003 8310023880 867 O.P LABEL (A) 1
MP8005 8850001210 ICOM WASHER (V) 1
MP8006 8860000720 C-RING S11 SUS 1
MP8007 8810007080 BIND UNC NO.6×12.7 SUS 1
MP8008 8830000740 NUT UNC NO.6 SUS 1
MP8009 8950002550 NYLON CLIP SL-9N 1
MP8010 8830000750 NYLON NUT UNC NO.6 SUS 1
MP8011 8810007070 BIND UNC NO.4×12.7 SUS [#01] 2
8810007070 BIND UNC NO.4×12.7 SUS [#02] 2
8810007070 BIND UNC NO.4×12.7 SUS [#03] 2
8810007070 BIND UNC NO.4×12.7 SUS [#05] 2
8810007070 BIND UNC NO.4×12.7 SUS [#11] 2
8810007070 BIND UNC NO.4×12.7 SUS [#21] 2
8810007070 BIND UNC NO.4×12.7 SUS [#23] 2
8810007070 BIND UNC NO.4×12.7 SUS [#25] 2
MP8012 8810007060 FLAT UNC NO.6×12.7 SUS 6
MP8013 8830000761 CLIP NUT UNC NO.6-1 6
MP8014 8830000771 SPEED NUT U-TYPE UNC NO.6 ZC3 4
MP8016 8310073010 2974 LABEL [#03] 1
8310073010 2974 LABEL [#23] 1
MP8017 8810011750 SCREW PH UNC NO.4×9.5 SUS B Only [#41] 2
MP8018 8830004200 TOOTHED WASHER NUT UNC
NO.4 SUS Only [#41] 2
MP8019 8930096380 2974 SPACER SHEET [#01] 1
8930096380 2974 SPACER SHEET [#02] 1
8930096380 2974 SPACER SHEET [#03] 1
8930096380 2974 SPACER SHEET [#05] 1
8930096380 2974 SPACER SHEET [#11] 1
8930096380 2974 SPACER SHEET [#21] 1
8930096380 2974 SPACER SHEET [#23] 1
8930096380 2974 SPACER SHEET [#25] 1
J8001 6510026350 2974BNC-LP 1
J8002 6510030970 CR7E-30DB-3.96E (72) [#01] 1
6510030970 CR7E-30DB-3.96E (72) [#02] 1
6510030970 CR7E-30DB-3.96E (72) [#03] 1
6510030970 CR7E-30DB-3.96E (72) [#05] 1
6510030970 CR7E-30DB-3.96E (72) [#11] 1
6510030970 CR7E-30DB-3.96E (72) [#21] 1
6510030970 CR7E-30DB-3.96E (72) [#23] 1
6510030970 CR7E-30DB-3.96E (72) [#25] 1
6510031020 1757820-3 [#41] 1
P8002 6910024750 HIF5B-GPIN [#01] 1
6910024750 HIF5B-GPIN [#02] 1
6910024750 HIF5B-GPIN [#03] 1
6910024750 HIF5B-GPIN [#05] 1
6910024750 HIF5B-GPIN [#11] 1
6910024750 HIF5B-GPIN [#21] 1
6910024750 HIF5B-GPIN [#23] 1
6910024750 HIF5B-GPIN [#25] 1
To Next Page
