5 - 2
Battery type detector
Battery type detector
Modulation
analyzer
Distortion meter
AC millivoltmeter
DC POWER
SUPPLY
11 V/5 A
Speaker (8 Ω)
Audio generator
AC millivoltmeter
to the antenna connector
Attenuator
20 dB or 30 dB
RF power meter
0.1−10 W/50 Ω
Frequency
counter
IC-A24/E
IC-A6/E
[DC 11V]
BATTERY
TERMINAL
Standard signal generator
0.1 µV to 32 mV
(−127 dBm to −17 dBm)
CAUTION!
DO NOT transmit while
an SSG is connected to
the antenna connector.
To [SP]
To [MIC]
DC ammeter
DC POWER
SUPPLY
7.2 V/5 A
DC ammeter
+
PC
to USB port
to RS-232C port
OPC-478 (RS-232C type)
OPC-478U/UC (USB type)

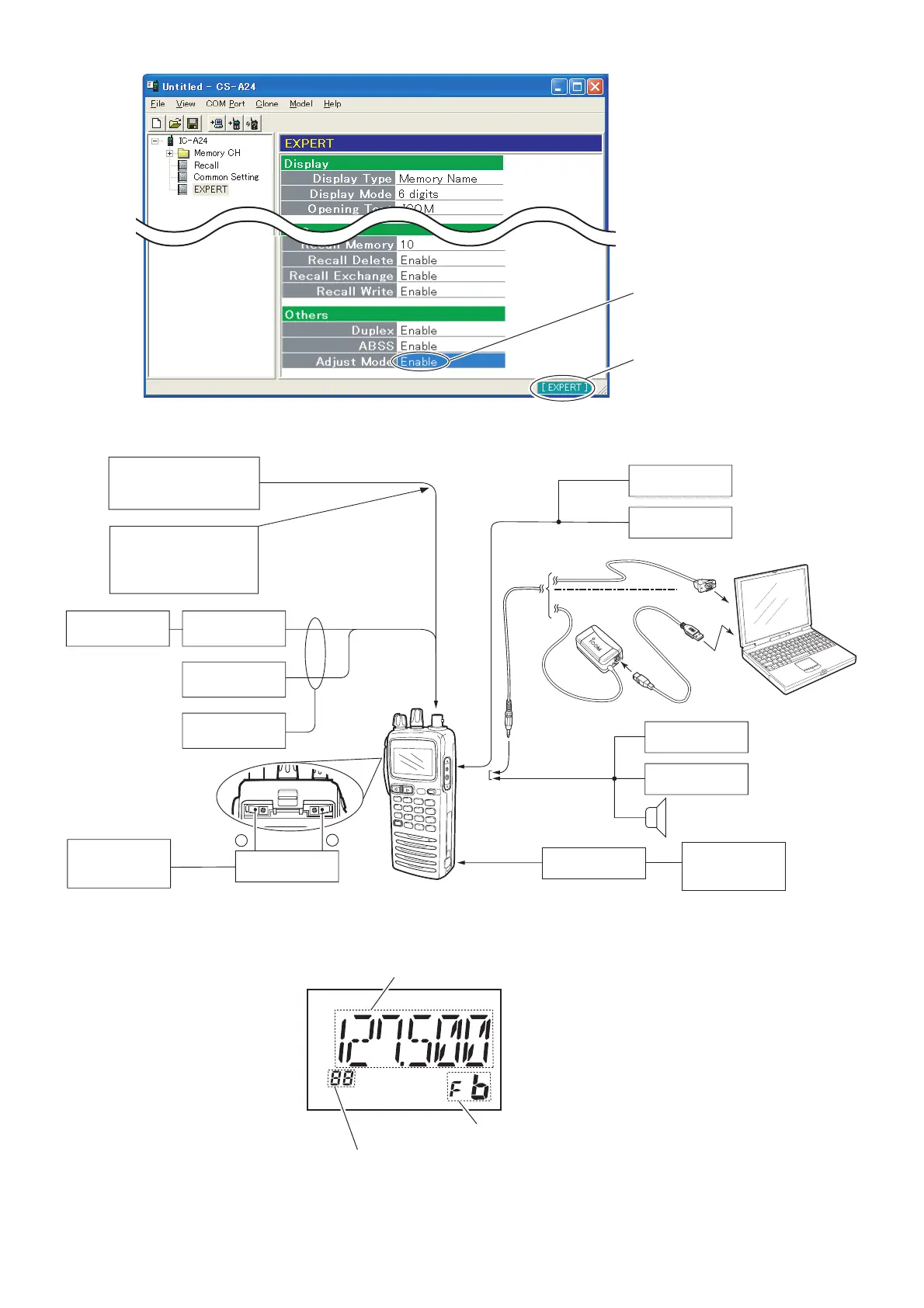

• PC SCREEN IN tHE ADJUSTMENT MODE
• CONNECTION
Operating frequency
Adjustment item
Adjustment value
• DISPLAY IN THE ADJUSTMENT MODE
When entering adjustment mode,
select “Enable” the “Adjust Mode”
Click the [EXPERT]
