Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless
7 - 1

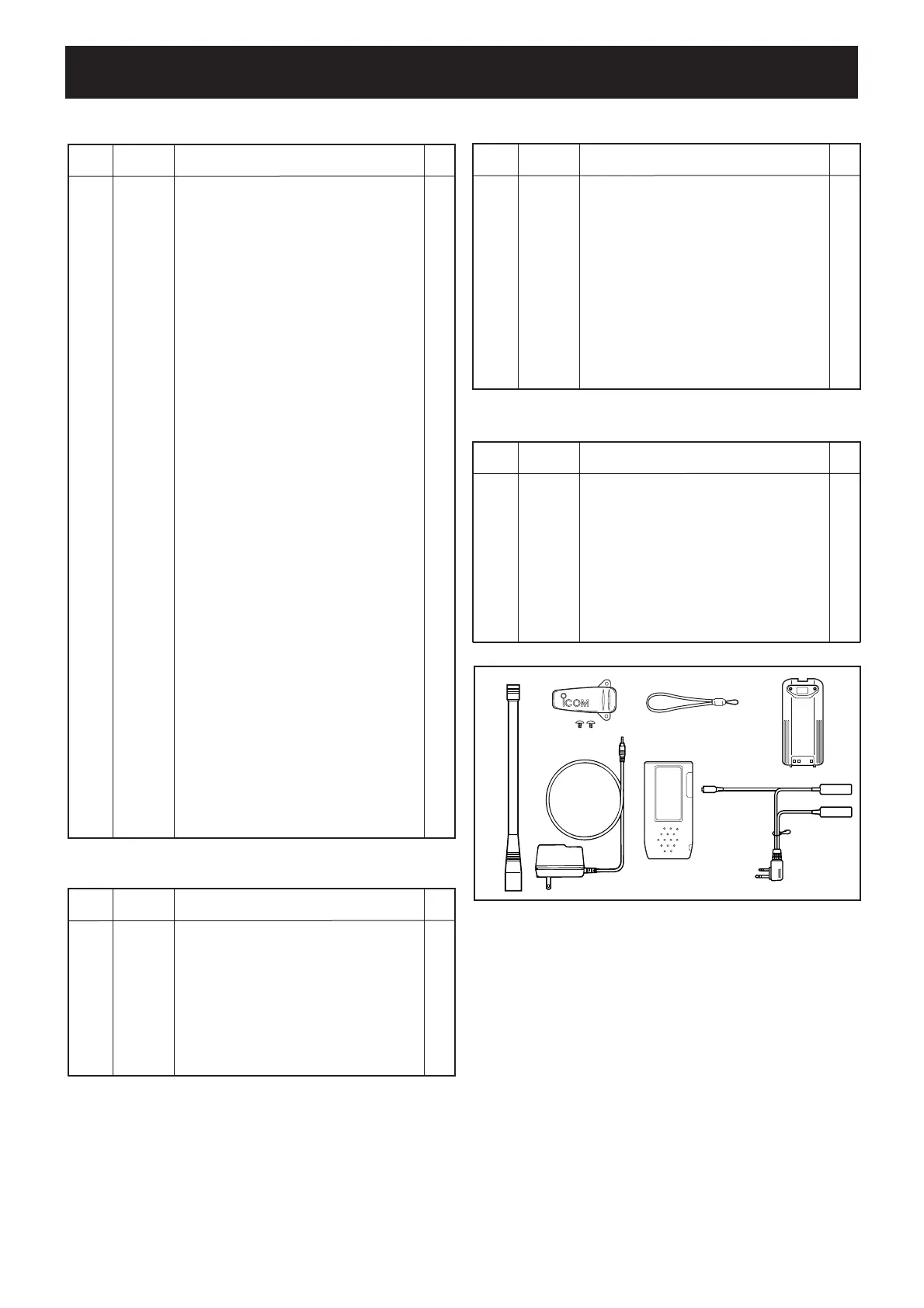

SECTION 7 MECHANICAL PARTS
[CHASSIS PARTS]
REF ORDER
DESCRIPTION
QTY.
NO. NO.
J1 6510022460 BNC-R162 1
SP1 2510001092 036D0801B 1
W1 8900009640 OPC-963 1
MP1 8210020970 2791 FRONT PANEL-1 (Incl. MP7, MP8, MP9, MP10)
[A24] 1
8210021211 2791 FRONT PANEL (B)-1
(Incl. MP7, MP8, MP9, MP10) [A24E] 1
8210021200 2791 FRONT PANEL (A)-1
(Incl. MP7, MP8, MP9, MP10) [A6] 1
8210021221 2791 FRONT PANEL (C)-1
(Incl. MP7, MP8, MP9, MP10) [A6E] 1
8210023440 2791 FRONT PANEL (D)-1
(Incl. MP7, MP8, MP9, MP10) [AUS] 1
MP2 8010019701 2791 CHASSIS-1 1
MP3 8930063570 2791 MAIN SEAL 1
MP4 8930063760 2791 KEY [A24] 1
8930064090 2791 KEY (B) [A24E] 1
8930064010 2791 KEY (A) [A6] 1
8930064080 2791 KEY (C) [A6E], [AUS] 1
MP5 8930063740 2791 JACK CAP 1
MP6 8930063750 2791 DC CAP 1
MP7 8930063730 2791 PTT BUTTON 1
MP8 8210020890 2791 PTT PANEL 1
MP9 8930063770 2791 PTT RUBBER 1
MP10 8930011900 Speaker net (A) (FX-573) 1
MP11 8930054680 2458 RELEASE BUTTON 1
MP12 8930053680 Push spring (AG) 1
MP13 8930064050 2791 PLUS TERMINAL 1
MP14 8210017091 2337 TERMINAL HOLDER-1 1
MP15 8930050840 2251 MINUS TERMINAL 1
MP16 8930063810 2791 SIDE PLATE 1
MP19 8610011930 Knob N-318 (Incl. MP21) 1
MP20 8610012120 Knob N-322 (Incl. MP28) 1
MP21 8610007510 Knob spring NO.7800 1
MP22 8830001340 1903 HEX NUT 2
MP23 8830001250 ANT CONNECTOR-101 1
MP24 8930052840 2337 T-RUBBER 1
MP25 8310062150 2791 WINDOW PLATE 1
MP26 8930064060 2791 WINDOW SHEET 1
MP27 8930042350 1922 MIC SHEET 1
MP28 8610009240 Knob spring NO.7800P 1
MP30 8850001880 Sealing washer (W) except [A24E], [A6E] 2
MP31 8930065090 2791 PET SHEET 1
MP32 8930065140 2791 MIC SPONGE 1
MP33 8860001350 2791 EARTH PLATE 1
MP35 8810009561 Screw BT B0 2X6 NI-ZK3 (BT) 2
MP36 8810009511 Screw BT B0 2X4 NI-ZC3 (BT) 13
MP37 8810004861 Screw PH M2X6 ZK3 2
MP38 8810009181 0tap 1fl at washer B0 2X5 NI-ZC3 (BT) 1
MP39 8810010191 Screw BiH M2X4 SUS SSBC 1
MP41 8930065490 RUBBER SHEET (BO) 1
MP42
*
8510017010 2791 SHIELD COVER [A24E], [A6E] only 1
MP43
*
8930066260 FERRITE SHEET (N) [A24E], [A6E] only 1
MP44
*
8930061731 SPONGE (HI)-1 [A24E], [A6E] only 1
[LOGIC UNIT]
[ACCESSORIES]
[RF UNIT]
REF ORDER
DESCRIPTION
QTY.
NO. NO.
J1* 6510020120 AXK6S40545P 1
DS1 5030002700 A0280 1
MC1 7700002310 EM-140 1
S1 7600000210 TP70N00E2015F-1903 1
EP2 8930063550 SRCN-2791-SP-N-W 1
MP1 8930063520 2791 LCD HOLDER 1
MP2 8210020900 2791 REFLECTOR 1
MP3 8930064980 2791 LCD FILTER 1
REF ORDER
DESCRIPTION
QTY.
NO. NO.
J1 6450000870 HEC2711-01-020 1
J2 6450001680 HSJ1122-010010 1
J4 6510021901 BM02B-ASRS-TF (LF) (SN) 1
J5 6450001060 HSJ1493-01-010 1
J6 6510024560 AXK5S40245P 1
S1 2260002840 SKHLLFA010 1
S2 2260002840 SKHLLFA010 1
MP1* 8410002560 2791 PA HEATSINK 1
MP2 8950005320 2337 CONTACT 1
MP3* 8510016530 2791 VCO CASE 1
MP4 8510016520 2791 VCO COVER 1
MP5 8510016831 2791 RF COVER-1 1
MP6 8510016840 2791 RF-A COVER 1
MP7 8510016850 2791 RF-B COVER 1
MP8 8510016860 2791 RF-C COVER 1
MP9 8930004081 earth spring (B)-1 1
REF ORDER
DESCRIPTION
QTY.
NO. NO.
W1
†
– OPC-499
[A24 USA], [A24 EUR], [A24 UK], [A6 USA] only 1
EP1 3310002130 FA-B02AR 1
EP2
†
– BP-210N EXP-RECYCLE except [USA-1] 1
– BP-208N [USA-1] 1
EP3
†
– BC-110AR [USA] 1
– BC-110DR ROHS [GEN], [EUR], [CHN], [EUR] 1
– BC-110V [AUS] 1
MP1
†
– MB-103 1
MP2 8010018080 Strap HK-009 1
ZP1
†
– LC-159 [USA], [USA-2], [EUR], [UK] only 1
*: Refer to SECTION 9 “BOARD LAYOUTS.”
†
: Optional product
EP1 MP1 MP2
ZP1
EP3
EP2
W1
