Icom IC-A5 Service Manual

5 - 2
File Edit View
Toolbar
MR
Bank0
Bank1
Bank2
Bank3
Bank4
Bank5
Bank6
Bank7
Bank8
Bank9
WX (WX version only)
COM Port Clone Help
CH
00
01
118.500
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
WX channel Rx/(Tx) Frequency Tx Frequency Dup Name Tx inhibit Mem
Untitled CS-A23
Common Setting
?
OK Cancel
Nomal
Common
Advanced
Adjust Mode Enable
VFO Mode Enable
VFO TX Enable
Memory Write Enable
Duplex Enable
25kHz
Display Mode
Channel Spacing
Clone Comment
Setting
When entering adjustment mode,
check the ’Adjust Mode Enable’ check box.
Click the ’View’ ’Common Setting’
on the menu bar.
to the antenna connector
RF power meter
0.1 10 W/50
Frequency
counter
Attenuator
40 dB or 50 dB
Modulation
analyzer
Standard signal generator
0.1 V to 32 mV
( 127 dBm to 17 dBm)
CAUTION:
Audio generator
AC millivolt meter
Distortion meter
Speaker (8 )
to the [MIC/SP] jack
to the [MIC/SP] jack
OPC-478
to an RS-232C port
Personal
computer
DB9 female plug
(incl. level converter circuit)
CAUTION:
DC ammeter DC 12 V/5 A
DO NOT connect or disconnect cables to
/from the [MIC/SP] jack while transceiver’s
power is ON, because transceiver enters
transmitting mode.
DO NOT transmit while
SSG is connected to the
antenna connector.

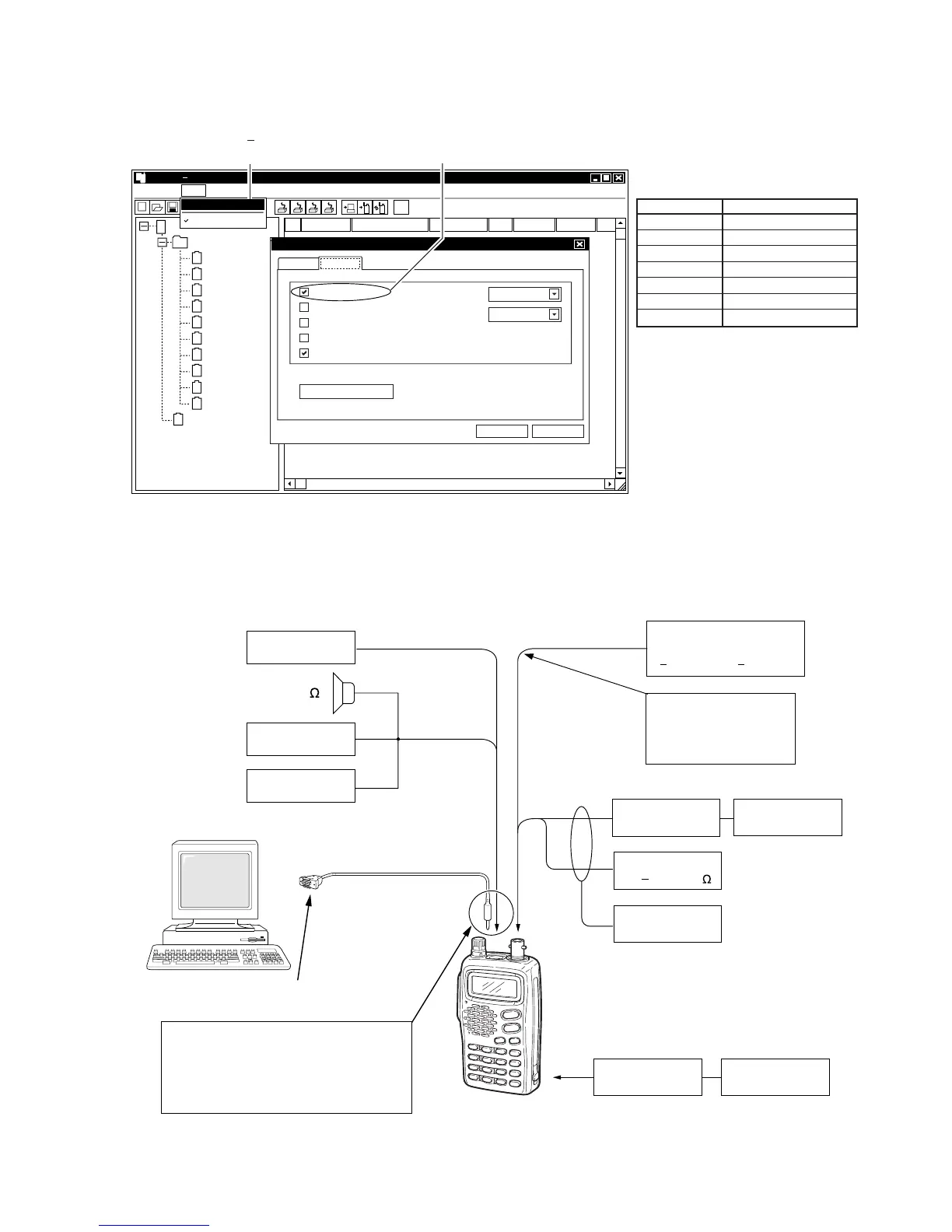

• CS-A23 SCREEN DISPLAY EXAMPLE
• CONNECTION
CHANNEL
00
01
02
07
08
11
12
FREQUENCY (MHz)
136.975
136.975
136.975
118.000
136.975
113.000
113.000
ADJUSTMENT FREQUENCY LIST

Icom IC-A5 Specifications

General

Brand	Icom
Model	IC-A5
Category	Transceiver
Language	English
