3 - 1

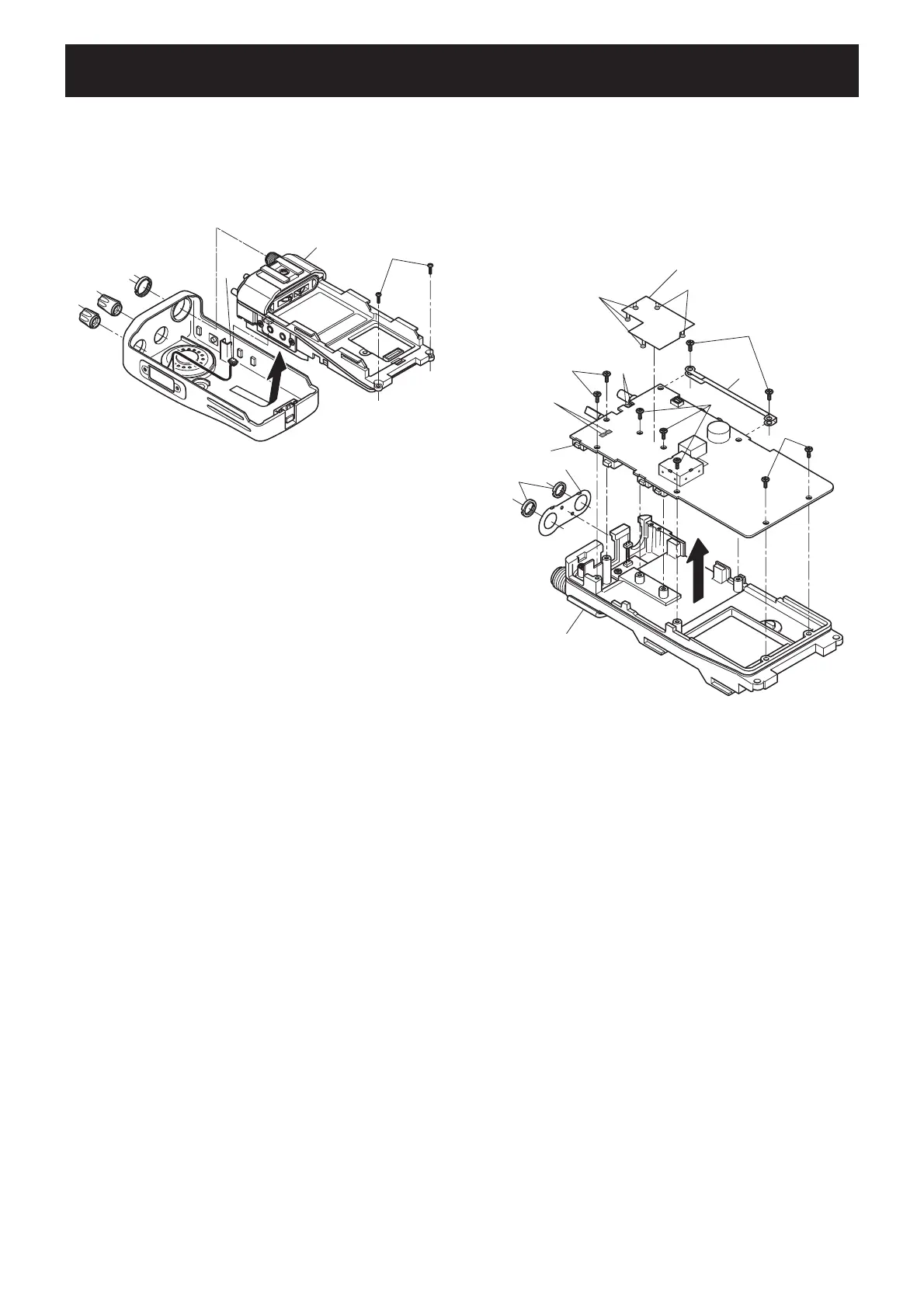

1. REMOVING THE CHASSIS UNIT
q Unscrew 1 nut A, and remove 2 knobs B, C.
w Unscrew 2 screws D.
e Take off the chassis unit in the direction of the arrow.
r Unplug the connector E from the chassis unit.
2. REMOVING THE MAIN UNIT
q Unscrew 2 nuts F, and remove the top plate G.
w Unsolder 5 points H, and remove the shield cover.
e Unscrew 2 screws I, and remove the side plate J.
r Unscrew 7 screws K.
t Unsolder 4 points L, and take off the main unit in the
direction of the arrow.
SECTION 3
.
DISASSEMBLY INSTRUCTION
Chassis unit
D
A
*B
C
E
*: IC-F14/F15/F16/F3018 only
Main unit
I
K
K
L
K
F
G
Chassis unit
L
H
H
J
Shield cover
