[CHASSIS PARTS]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J1 6910015910 ANT CONNECTOR 104 1
J2 6910015860 IMSA-6277S-O2A-G 1
S1 2260002870 AS-243-A13 [2CH] only 1
SP1 2510001061 K036NA500-67 1
W1 8900009640 OPC-963 1
W2 8900009640 OPC-963 [2CH] only 1
MP1 8010019695 2775 CHASSIS-5 1
MP2 8210020920 2775 FRONT PANEL (Incl. MP3, 4, 5, 6, 7) [16CH] 1
8210020930 2775 FRONT PANEL (A) (Incl. MP3, 4, 5, 6, 7) [2CH] 1
8210024600 2775 A-FRONT PANEL
(Incl. MP3, 4, 5, 6, 7, 43) [F3018] 1
MP3 8210020820 2775 PTT PANEL [Others] 1
8210024560 2775 A-PTT PANEL [F3018] 1
MP4 8930063360 2775 PTT BUTTON 1
MP5 8930063370 2775 PTT RUBBER 1
MP6 8930040390 SPEAKER NET (B) 1
MP7 8930046050 SPEAKER NET (C) 1
MP8 8210020550 2721 REAR PANEL 1
MP9 8930063351 2775 LENS-1 1
MP10 8610011930 KNOB N-318 (Incl. MP23) 1
MP11 8610012130 KNOB N-323 (Incl. MP24) [16CH] only 1
MP13 8930075190 2775 C-MAIN SEAL [16CH] 1
8930063340 2775 A-MAIN SEAL [2CH] 1
MP14 8930063060 2721 T-RUBBER 1
MP16 8930063400 2775 SIDE PLATE 1
MP17 8930063411 2775 B-TOP PLATE-1 [16CH] 1
8930063420 2775 A-TOP PLATE [2CH] 1
MP20 8930043760 1923 MIC SEAL 1
MP21 8930059360 2600 RELEASE BUTTON 1
MP22 8930070362 2775 RELEASE PLATE (A)-2 1
MP23 8610007510 KNOB SPRING NO.7800 1
MP24 8610007920 KNOB SPRING NO.1500 [16CH] only 1
MP25 8830001720 2721 ANT NUT 1
MP26 8810009221 SCREW BT B0 2X8 NI-ZK3 (BT) 2
MP27 8810009561 SCREW BT B0 2X6 NI-ZK3 (BT) 2
MP28 8810009511 SCREW BT B0 2X4 NI-ZC3 (BT) 9
MP29 8810009511 SCREW BT B0 2X4 NI-ZC3 (BT) 1
MP30 8810009511 SCREW BT B0 2X4 NI-ZC3 (BT) 1
MP31 8810010430 SCREW TRUSS M3X5 SUS SSBC 1
MP32 8930051290 2251 OPT SHEET 1
MP33 8930042350 1922 MIC SHEET 1
MP34 8930056540 PUSH SPRING (AH) 2
MP35 8830001701 VR NUT (Q)-1 1
MP36 8830001701 VR NUT (Q)-1 [16CH] only 1
MP37 8830001741 VR NUT (S)-1 [2CH] only 1
MP42 8930074580 2775 NAME SHEET [F3018] only 1
MP43 8930074610 SP NET (E) [F3018] only 1
[MAIN UNIT]
[ACCESSORIES]
[ANT UNIT]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J2 6450001680 HSJ1122-010010 1
J3 6450002250 HSJ1456-010320 1
MC1* 7700002750 EM9745P-38-G 1
S1 2260002840 SKHLLFA010 1
S4 2250000490 TP70TF5163 15.9F-2775 [16CH] only 1
MP1* 8410002531 2681 PA HEATSINK-1 1
MP2 8510016460 2775 VCO COVER 1
MP3* 8510016470 2775 VCO CASE 1
MP4* 8510016580 2775 SHIELD PLATE 1
REF ORDER
DESCRIPTION QTY.
NO. NO.
MP601 8510016350 2721 ANT PLATE 1
[CONNECT UNIT]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J501 6910016390 IMSA-9230B-1-02Z145-PT1 1
REF ORDER
DESCRIPTION QTY.
NO. NO.
EP1** – FA-SC55V-2 1
EP2** – BP-232N 1
EP3** – BC-160 [USA-03], [USA-04] only 1
EP4** – BC-145A [USA-03] 1
– BC-145E [USA-04] 1
MP1** – MB-94 1
MP2 8210020560 2721 JACK PANEL [Others] 1
8210022780 2927 JACK PANEL [F3018] 1
MP3 8810004861 SCREW PH M2X6 ZK3 2
MP4 8930051290 2251 OPT SHEET 1
*: Refer to “BOARD LAYOUTS.”
**: Optional product.
Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless

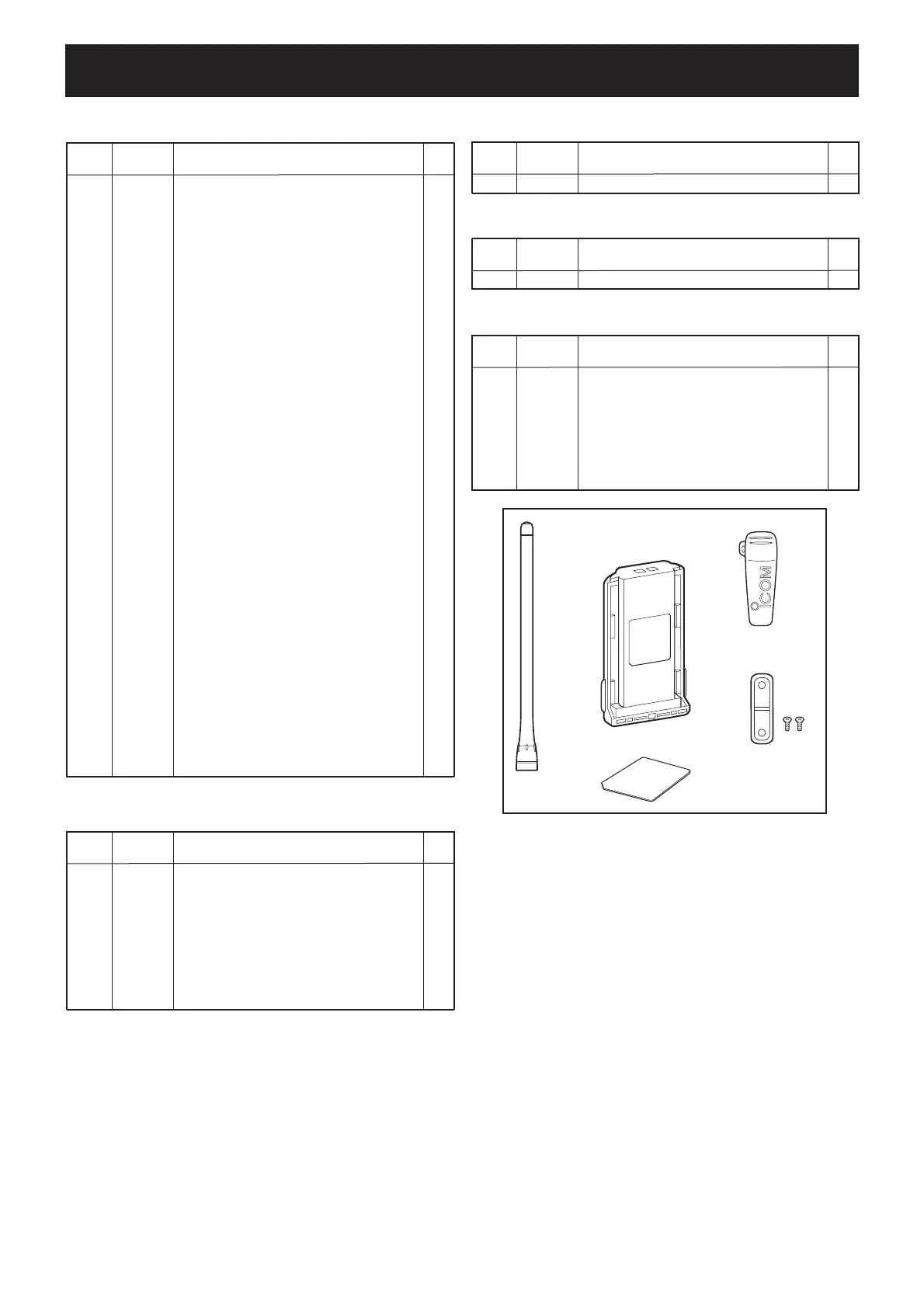

SECTION 7
.
MECHANICAL PARTS
EP1 EP2
MP4
MP1
MP3
MP2
