CONNECTION AND INSTALLATION
■ Optional UT-105 installation
The Optional UT-105 provides SmarTrunk II™ functions. In-
stall the unit as follows:
➀ Turn power off, then disconnect the DC power cable.
➁ Unscrew the 4 screws, then remove the bottom cover.

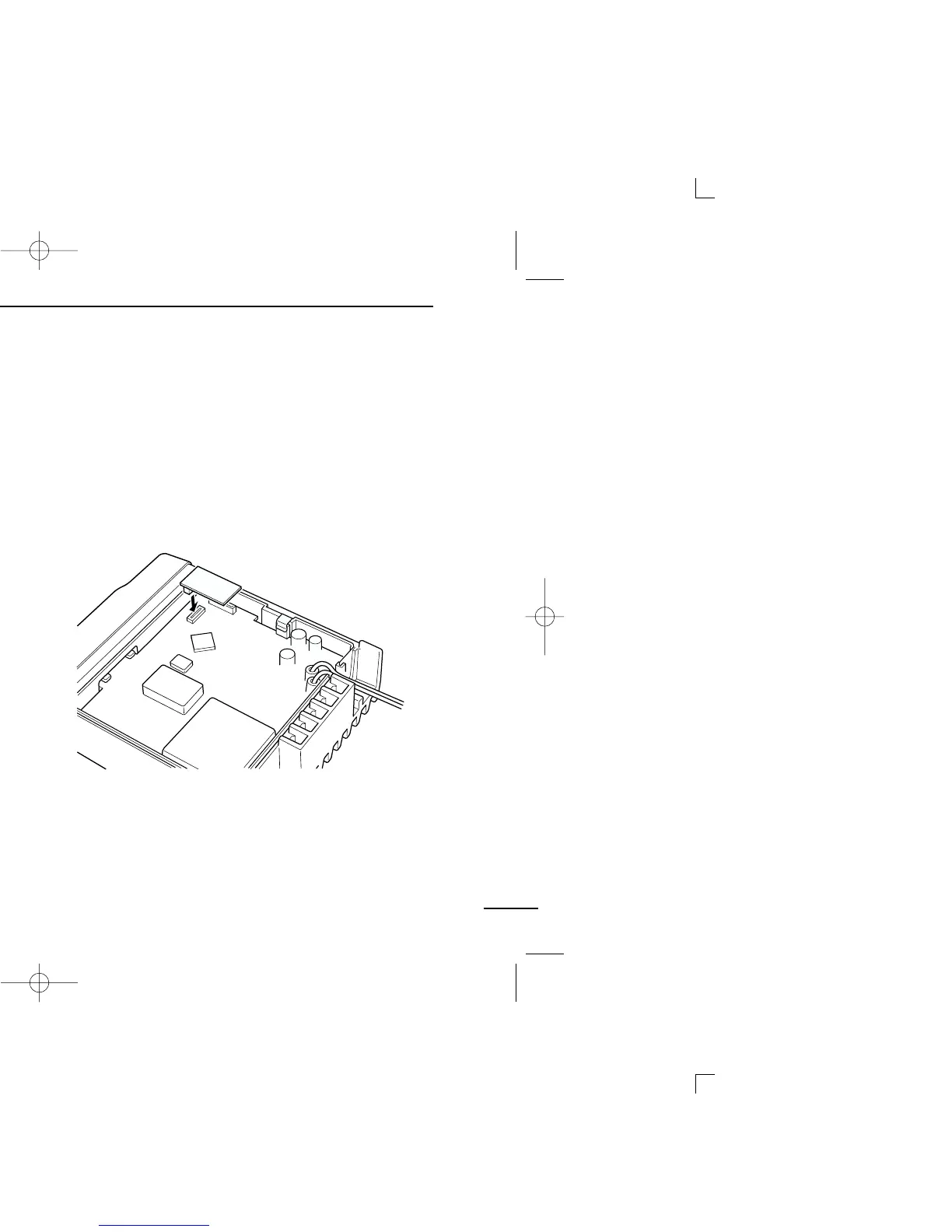

➂ Install the unit as shown in the diagram below.
➃ Replace the bottom cover and screws, then the DC power
cable.
