Icom IC-F3003 Service Manual Addendum

5 - 2

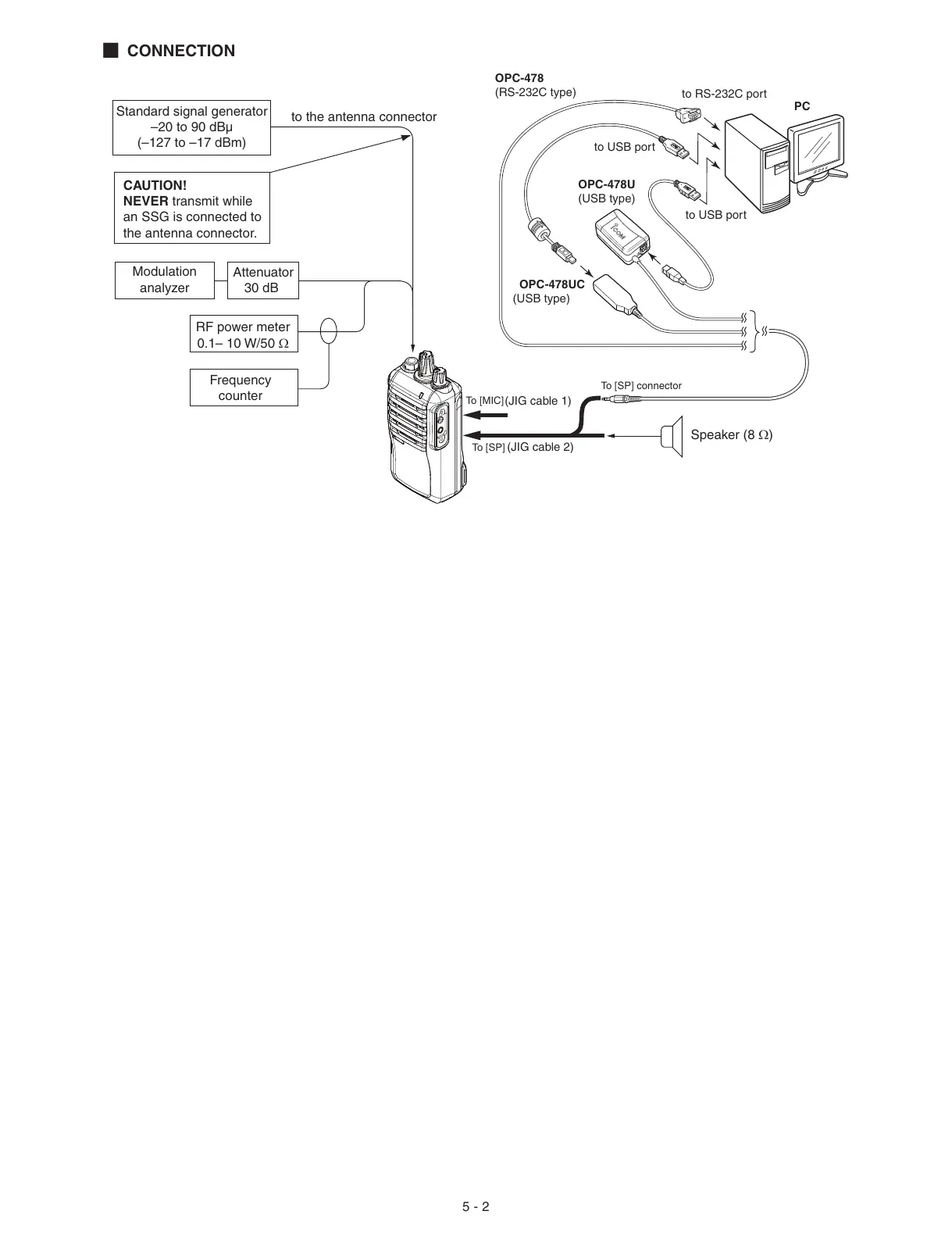

¤ CONNECTION
Modulation
analyzer
Speaker (8 Ω)
to the antenna connector
Attenuator
30 dB
RF power meter
0.1– 10 W/50 Ω
Frequency
counter
Standard signal generator
–20 to 90 dBµ
(–127 to –17 dBm)
CAUTION!
NEVER transmit while
an SSG is connected to
the antenna connector.
To [SP]
To [MIC]
(JIG cable 1)
(JIG cable 2)
To [SP] connector
PC
to USB port
to USB port
to RS-232C port
OPC-478
(RS-232C type)
OPC-478U
(USB type)
OPC-478UC
(USB type)
