Icom IC-F3003 - Inside Views; Main Unit Top View

2 - 1

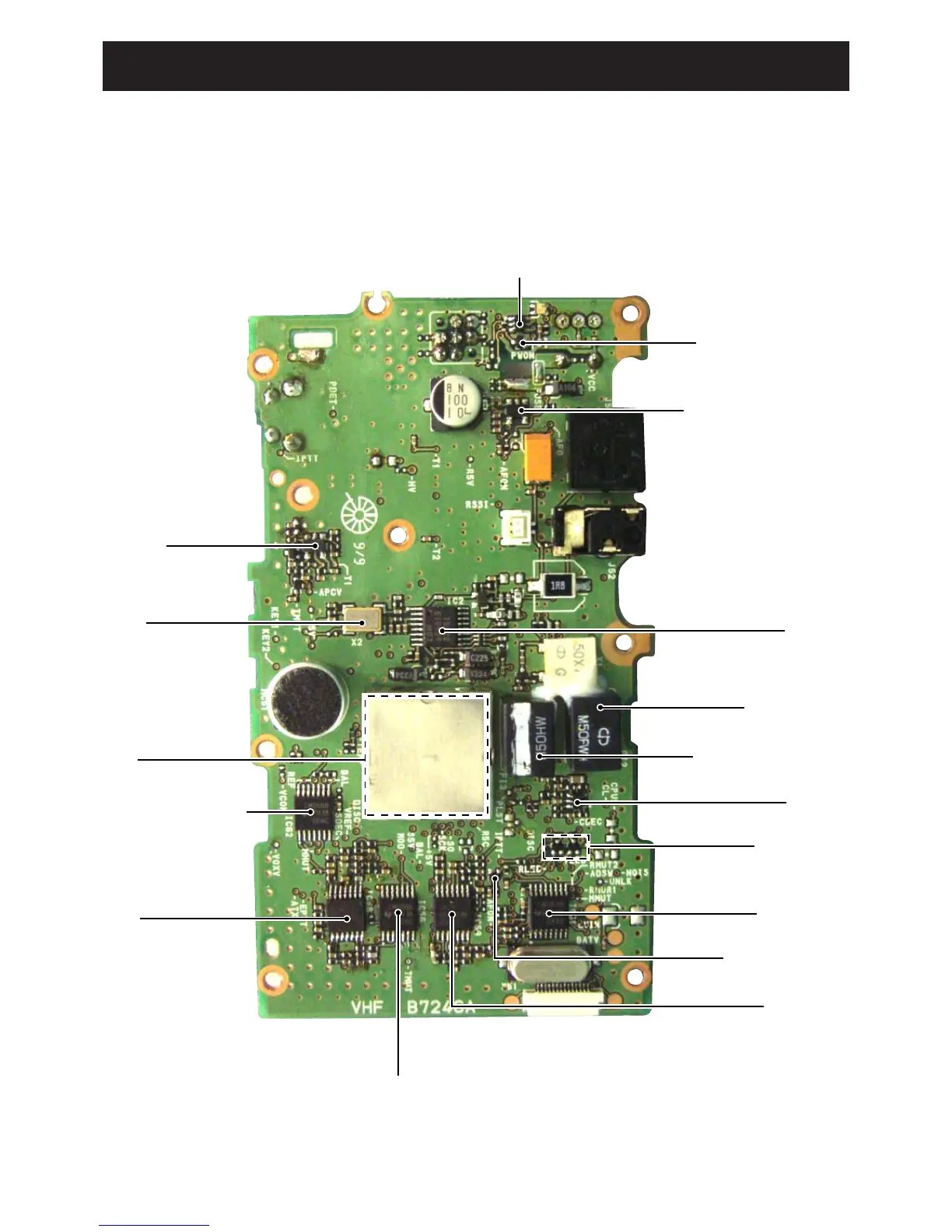

SECTION 2
.
INSIDE VIEWS
• MAIN UNIT
(TOP VIEW)
LED DRIVER
(Q82, Q83)
VCO
CPU5 LINE REGULATOR
(IC54)
+5V LINE REGULATOR
(Q76)
PLL IC
(IC2)
MIC/AF LINE SW
(IC56)
APC AMP
(IC1)
TCXO
(X2)
TONE FILTER SW
(Q52)
TONE LPF
(IC59)
LPF
(IC58)
MIC GAIN CONTROLLER
(IC62)
2ND IF FILTER
(FI2)
2ND IF FILTER
(For narrow mode only)
(FI3)
LPF
(Q51)
AF LINE SW
(IC61)
+5V LINE REGULATOR
(Q75)
