3

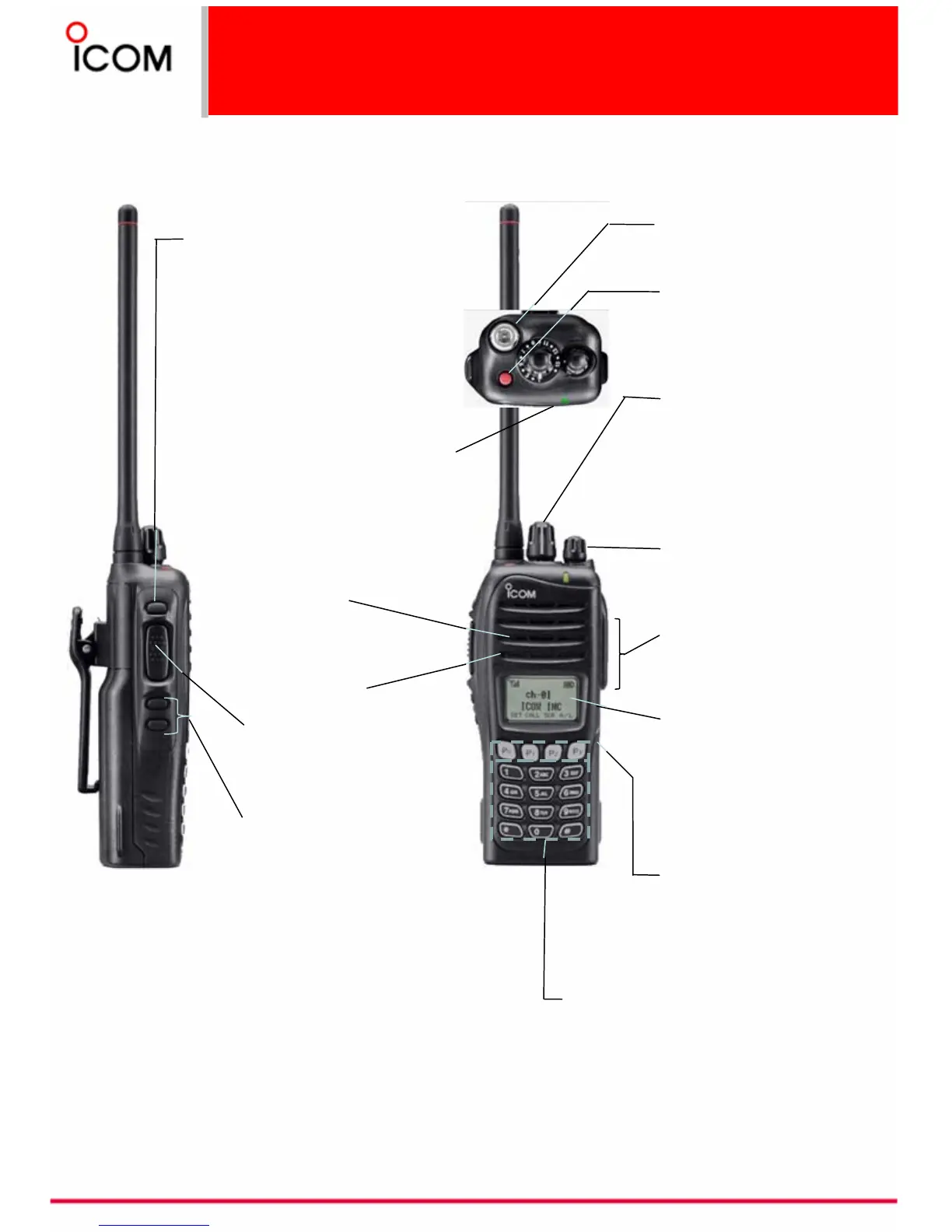

Operation and Function
3-1
Operation and Function
20
ROTARY SELECTOR
Rotate to select the pre-
programmed memory
channels or
the operating
zone. (Depending on the pre-
setting)
Note: Operation of the functions described below may depend on radio programming.
ANTENNA CONNECTOR
Connects the supplied
antenna.
DEALER-PROGRAMMABLE
KEY [Emer]
Desired functions can be
programmed by your dealer.
DEALER-PROGRAMMABLE
KEY [Side1]
Desired functions can be
programmed by your dealer.
PTT SWITCH [PTT]
Push and hold to transmit;
release to receive.
DEALER-PROGRAMMABLE
KEYS [Side2]/[Side3]
Desired functions can be
programmed independently
by your dealer.
10-KEYPAD (Depending on version)
The keypad allows you to enter digits to:
•
Select memory channels
•
Select tone channels
•
Select DTMF codes (during transmit)
•Set TX codes
•
Set BIIS status number*
•
Input text message for SDM operation*
•
Start up with the password*
* NOT AVAILABLE for IC-F3061T/S and IC-F4061T/S
DEALER-PROGRAMMABLE
KEYS [P0] to [P3]
Desired functions can be
programmed independently
by your dealer.
FUNCTION DISPLAY
Displays a variety of
information such as an
operating channel
number/name, 2/5-tone
code, DTMF numbers,
selected function, etc.
MULTI-CONNECTOR
Connect an optional speaker-
microphone.
VOLUME CONTROL [VOL]
Rotate to turn the power
ON/OFF and adjusts the
audio level.
BUSY/TRANSMIT INDICATOR
➥ Lights green while
receiving a signal, or when
the squelch is open.
➥ Lights red while
transmitting.
MICROPHONE
SPEAKER
