q: Transceiver's connection state
w: Reload adjustment data
e: Receive sensitivity measurement
r: Connected DC voltage measurement
t: PLL lock voltage measurement
y: Operating channel select
u: RF output power
i: FM modulation balance (Narrow)
o: FM deviation (Narrow)
!0: FM deviation (Wide/Middle)
NOTE:
!1: CTCSS/DTCS deviation
!2: Squelch level
!3: Reference frequency
!4: Receive sensitivity (automatic)
!5: PLL lock voltage for RX (automatic)
!6: PLL lock voltage for TX (automatic)
!7: PLL lock voltage for RX (manual)
!8: PLL lock voltage for TX (manual)
!9: S-meter adjustment
The above values for settings are example only.
Each transceiver has its own specific values for each setting.
r
t
y
u
q
i
o
!0
!1
!4
!3
!2
!5
!6
!7
!8
!9
w
e

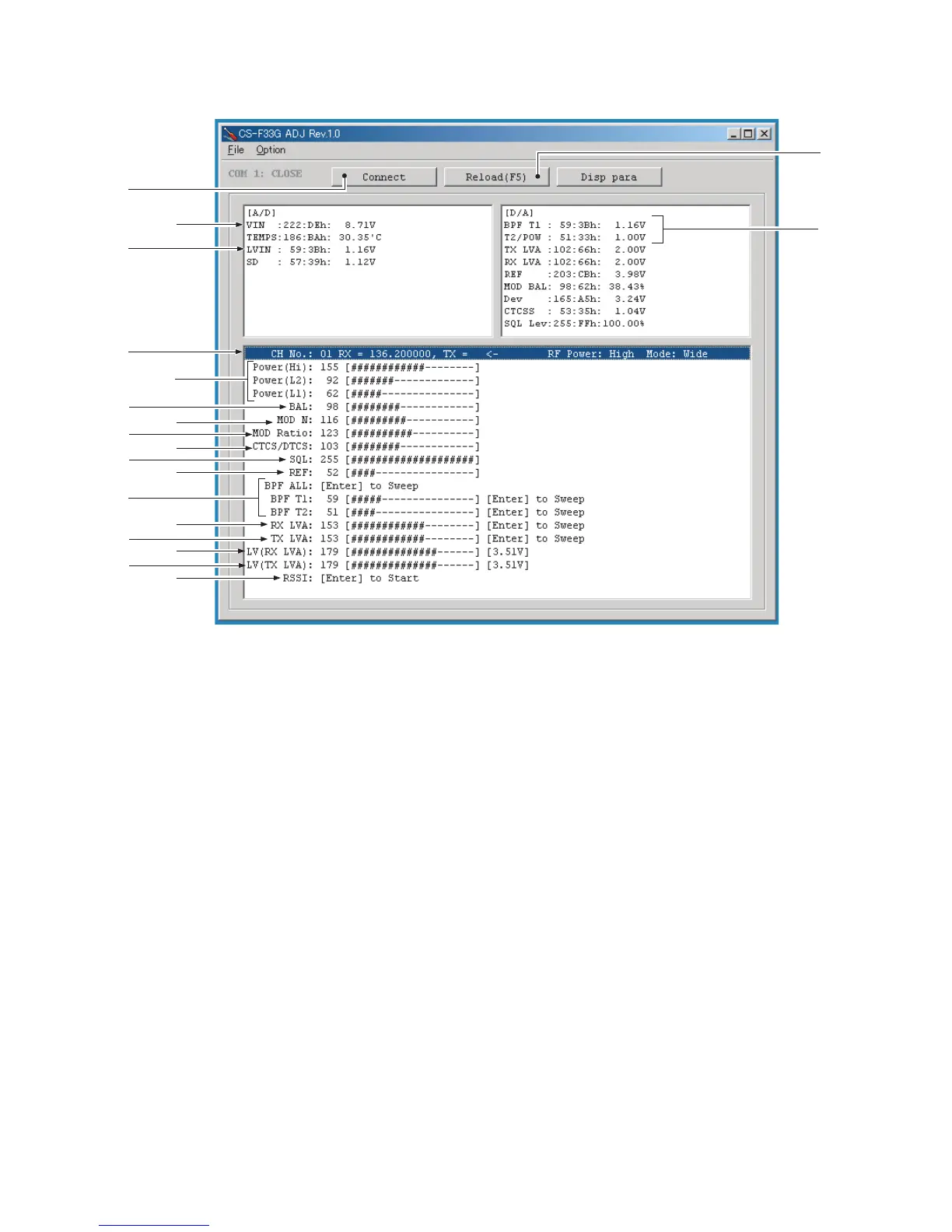

• CS-F33G ADJ'S SCREEN EXAMPLE
