Icom IC-F33GS Service Manual

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
7 - 1

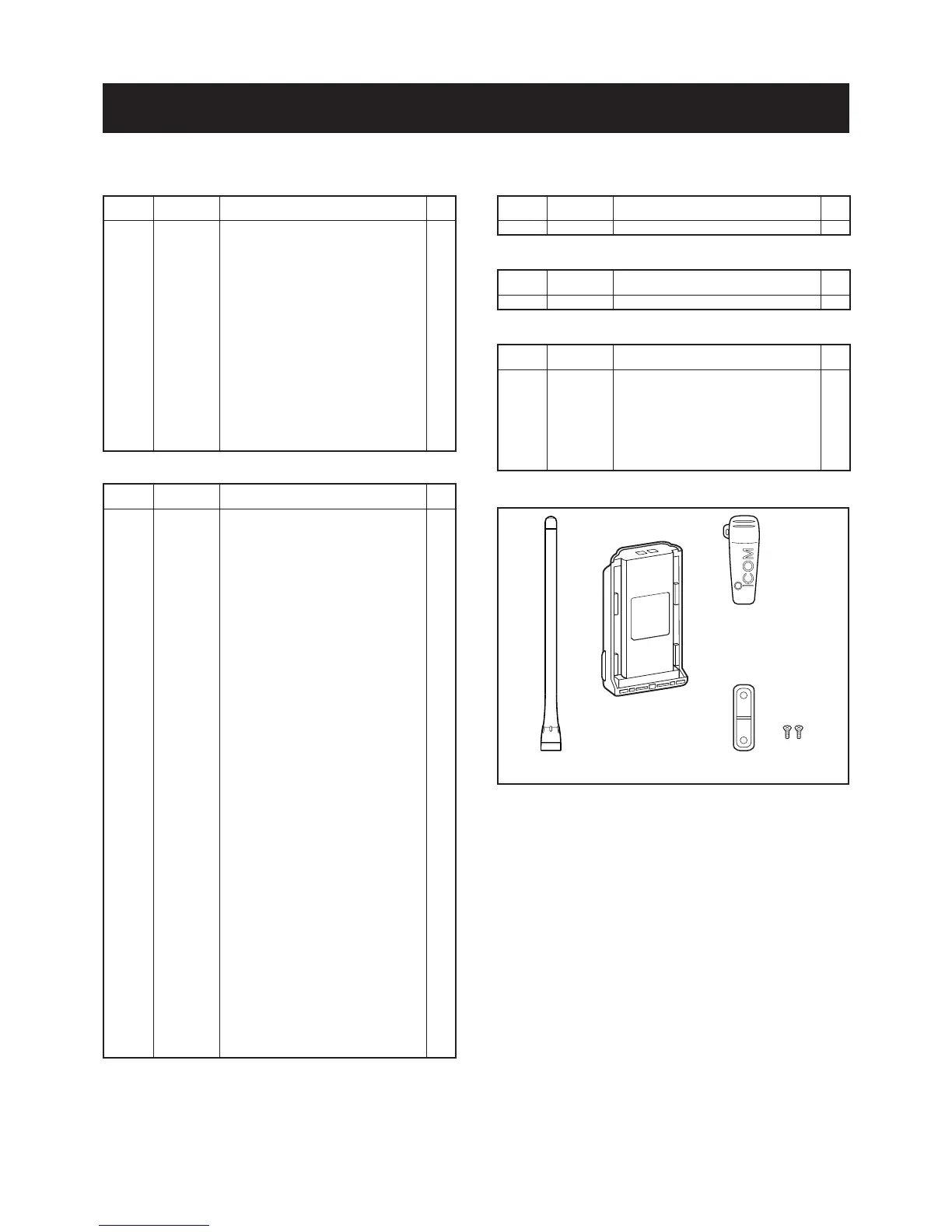

7-1 CABINET PARTS
[MAIN UNIT]
[CHASSIS UNIT]
[PA UNIT]
REF. ORDER. NO. DESCRIPTION QTY.
SP1 2510001060 K036NA500-47 1
W1 8900009640 OPC-963 1
J1 6910015910 Antenna connector-104 1
J2 6910015860 IMSA-6277S-02A-G 1
MP1 8010019451 2721 chassis-1 1
MP2 8210020530 2721 T-front panel [F33GT], [F34GT] 1
8210020730 2721 S-front panel [F33GS], [F34GS]
MP8 8210020550 2721 rear panel 1
MP9 8310060760 2721 window plate 1
MP10 8930062620 2721 window sheet 1
MP12 8930061790 2721 keyboard [F33GT], [F34GT] 1
8930062760 2721 4-key [F33GS], [F34GS] 1
MP13 8930061710 2721 main seal 1
MP14 8930063060 2721 terminal rubber 1
MP16 8930064660 2721 side plate (A) 1
MP17 8930061860 2721 top plate 1
MP20 8930061880 2721 mic sponge 1
MP21 8930059360 2600 release button 1
MP22 8930063030 2721 release plate 1
MP25 8830001720 2721 antenna nut 1
MP26 8810009220 Scerw B0 2 x 8 ZK (BT) 2
MP27 8810009560 Scerw M2 x 6 ZK 2
MP28 8810008970 Scerw M2 x 3.5 NI-ZU (BT) 11
MP29 8610011930 Knob N-318 1
MP30 8610011920 Knob N-319 1
MP31 8810010160 Scerw M3 x 5 SUS ZK 1
MP32 8930063051 2721 plate-1 1
MP33 8930046020 1123 sheet (A)-1 1
MP34 8930056540 Spring (AH) 2
MP35 8830001700 VR nut (Q) 1
MP36 8830001690 VR nut (R) 1
MP37 8510016360 2721 main shield 1
MP38 8510016350 2721 antenna plate 1
MP42 8930062960 White sheet (R) 1
MP47 8930048870 2056 A-sponge 1
REF. ORDER. NO. DESCRIPTION QTY.
DS3 5030002760 L3-0200HAY-3 1
EP7 8930063020 SRCN-2721-SP-N-W 2
J2 6450002250 HSJ1456-010320 1
J3 6450001680 HSJ1120-010010 1
R315 7210003061 TP76N00N-15F-A103-2251A 1
1
S2 2260002840 SKHLLFA010 1
S27 2250000180 EC10SP16-47 1
MC1 7700002480 SKB-2746LPC 1
MP3 8930061890 2721 LCD holder 1
MP4 8210020570 2721 refl ector 1
REF. ORDER. NO. DESCRIPTION QTY.
J702 6910015890 IMSA-9230B-1-02Z140-T 1
Screw abbreviations B0, BT: Self-tapping
ZK: Black
SUS: Stainless
NI-ZU: Nickel-zinc
[ACCESSORIES]
REF. ORDER. NO. DESCRIPTION QTY.
EP1 3310002321 FA-SC55V-1 1
EP2 0800007541 BP-231 ACC-1 1
MP1 8010019540 MB-94 ACC 1
MP3 8210020560 2721 JACK PANEL 1
MP4 8810004860 Screw M2 x 6 ZK 2
MP5 8930063051 2721 PLATE-1 1
EP1
EP2
MP4
MP3
MP1
[FUSE UNIT]
REF. ORDER. NO. DESCRIPTION QTY.
J901 6910015880 IMSA-9230B-1-02Z141-T 1
CONTENTSSEC71.indd16 10/26/20047:32:09PM
